2024 N&N Trailers 20 ft Equipment Trailer – Full-Width Ramps
$8,799.00
+ Free Shipping
In stock
Move heavy machinery on a galvanized, low-profile platform with spring-assisted full-width ramps. This new 2024 equipment trailer has a gross vehicle weight rating of 22,500 lb (10,206 kg). Free standard delivery to the Lower 48.
Free Standard Crane Delivery Details
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
- Delivery:
- About a week and a half after full payment
- Driver Call:
- 1 day before arrival
- Offloading:
- Crane offloading & placement included
Guaranteed Safe Checkout
- WIRE TRANSFER
- ACH
- SKU:
- LL-TRL-014
- Categories:
- Trailers, Car & Equipment Trailers
- Brand:
- Lease Lane Containers
Key Features
- Galvanized steel – corrosion resistance for outdoor working conditions
- Low-profile deck – reduced approach angle for equipment loading
- Full-width wedge ramps – accommodate tracked machines and wide axles
- Spring-assisted ramps – reduce effort when raising and lowering
- Slipper spring suspension – supports the triple drop-axle configuration
- Spruce plank decking – provides a solid equipment platform
- Eight welded D-rings – offer multiple cargo securement points

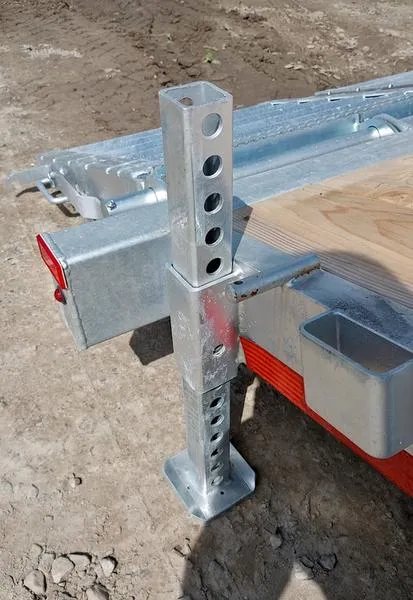

- Rear stabilizer legs – provide support during loading
- Sealed cold-weather wiring – protects electrical connections
- Flush-mounted lighting – keeps light fixtures recessed
Overview
This new 2024 N&N Trailers equipment trailer pairs galvanized steel construction with a low-profile loading platform. It is designed for machinery transport, with full-width ramps and a triple-axle configuration suited to demanding equipment-hauling applications.
The gross vehicle weight rating is 22,500 lb (10,206 kg), with an empty weight of 4,700 lb (2,132 kg) and a payload of 17,800 lb (8,074 kg). The Demco ball coupler is rated 21,000 lb (9,526 kg). Verify the permitted operating load and complete towing setup before use.
Layout & Design

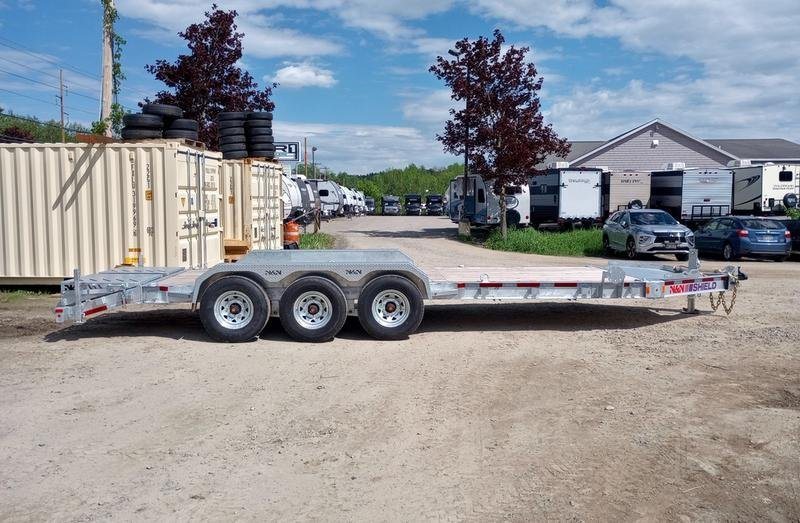

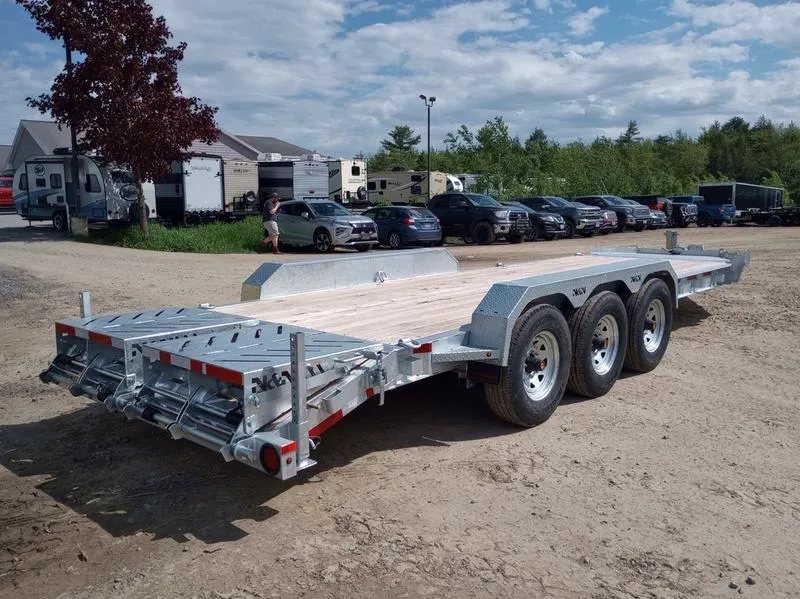

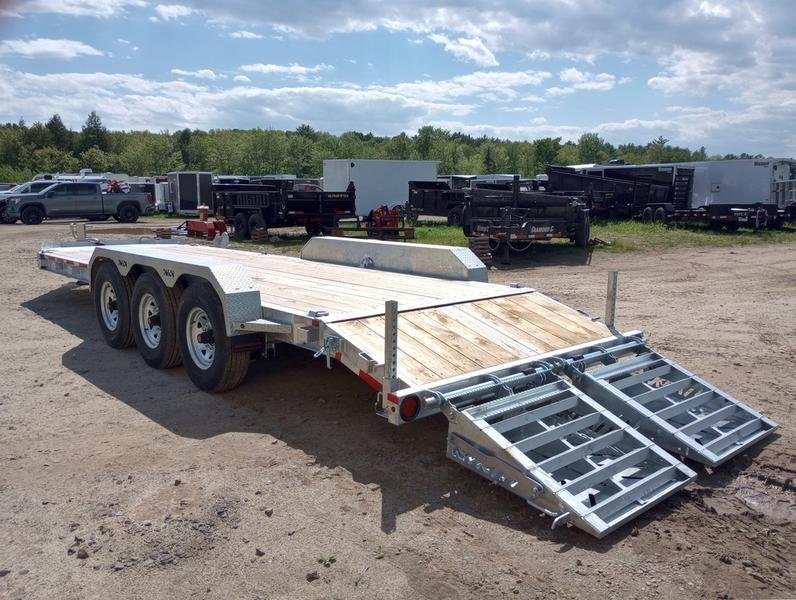

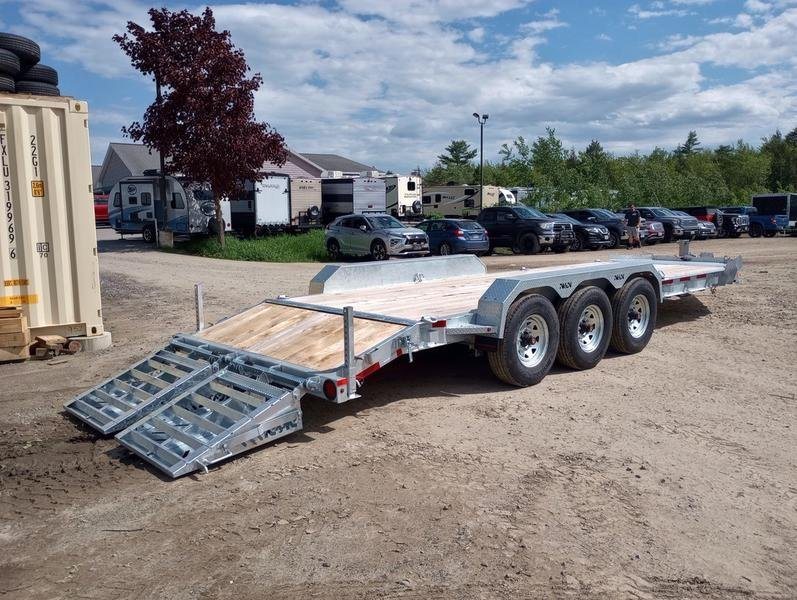

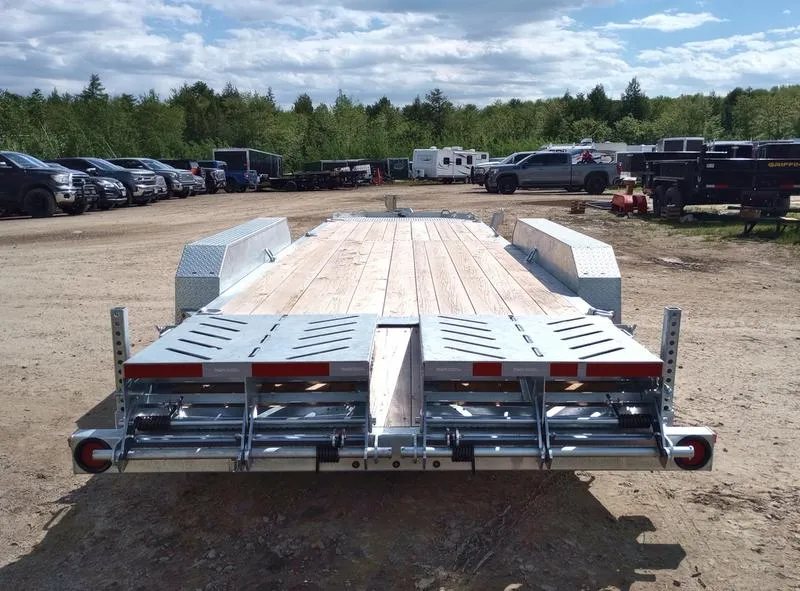

The main deck measures 20 ft (6.10 m) long by 7 ft (2.13 m) wide, with an additional 3 ft (0.91 m) rear section. A beavertail and spring-assisted, fold-flat wedge ramps provide a broad loading path. Rear stabilizer legs support loading operations, while eight welded D-rings provide securement locations.
Materials & Build

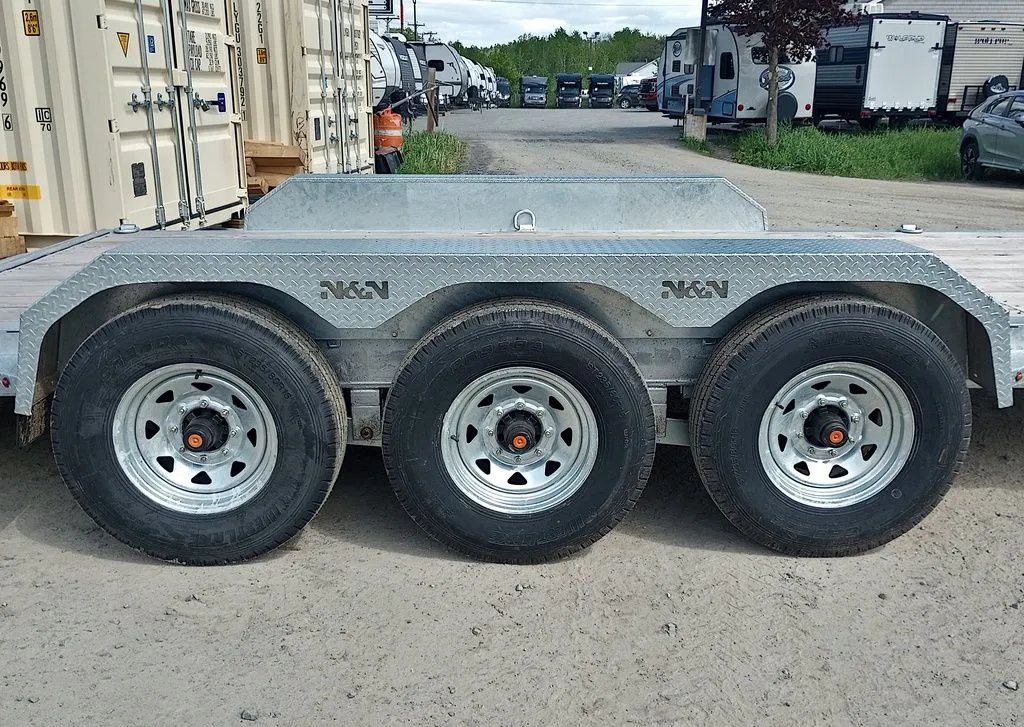

A galvanized H-beam steel frame supports spruce plank decking. Three drop axles work with slipper spring suspension. The electrical package combines sealed Voltflex cold-weather wiring with flush-mounted lighting.
What's Included
- Full-width, spring-assisted wedge ramps
- Demco ball coupler and drop-leg jack

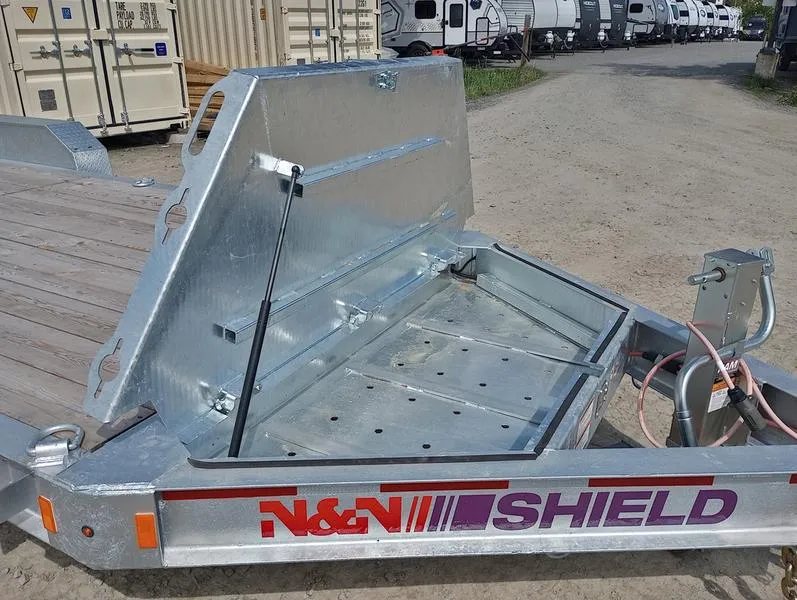

- Rear stabilizer legs and pole-mounted toolbox

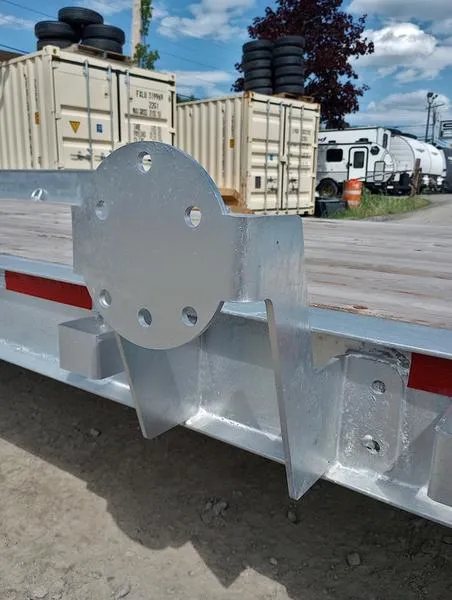

- Spare tire mount
- Welded D-rings and sealed wiring harness
Ideal Uses
Suitable applications include transporting tractors, skid steers, and compact excavators when equipment weight, dimensions, securement, and towing-system limits are verified for the intended load.
Delivery
Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
Why Buy from Lease Lane Containers
- Raleigh, NC team
- Free standard delivery to the Lower 48
- Sales tax included and paid by Lease Lane Containers
- 30-day return window (Refund & Returns Policy)
Specifications
| Specification | Detail |
|---|---|
Overview | |
| Year | 2024 |
| Make | N&N Trailers |
| Type | Low-profile equipment trailer |
Dimensions | |
| Main deck length × width | 20 ft × 7 ft (6.10 m × 2.13 m) |
| Deck configuration | 20 ft + 3 ft (6.10 m + 0.91 m) |
| Deck height | 23 in (58.42 cm) |
Build | |
| Construction | Galvanized steel |
| Frame | 8 in (20.32 cm) H-beam |
| Crossmember spacing | 16 in (40.64 cm) center to center |
| Decking | 2 in × 8 in (5.08 cm × 20.32 cm) spruce planks |
| Ramps | Heavy-duty, full-width wedge ramps; fold-flat and spring-assisted |

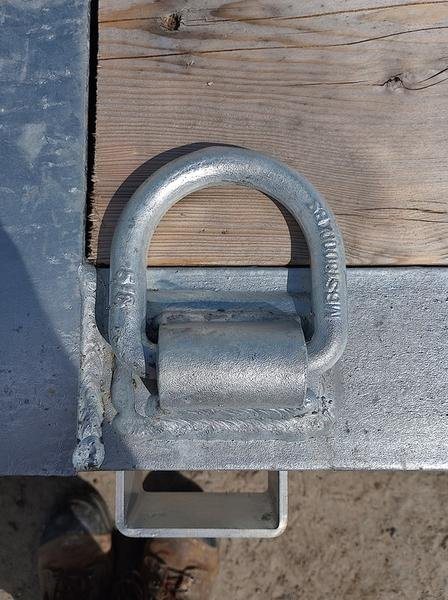

| Securement | Eight welded D-rings |
| Coupler | Demco ball coupler, rated 21,000 lb (9,526 kg) |
| Jack | Drop-leg jack, rated 12,000 lb (5,443 kg) |
| Additional equipment | Rear stabilizer legs, pole-mounted toolbox, spare tire mount |
Running Gear | |
| Gross vehicle weight rating | 22,500 lb (10,206 kg) |
| Empty weight | 4,700 lb (2,132 kg) |
| Stated payload | 17,800 lb (8,074 kg) |
| Axles | Three drop axles, each rated 7,500 lb (3,402 kg) |
| Suspension | Slipper spring suspension |
| Tires | 235/75R17.5, 14-ply |
Electrical & Plumbing | |
| Electrical | Sealed Voltflex cold-weather wiring harness and flush-mounted light-emitting diode lighting |
Condition | |
| Condition | New (2024) |
Delivery | |
| Delivery | Free standard delivery to the Lower 48 · about a week and a half after full payment |
