2022 Diamond C 24 ft Equipment Trailer – Max Ramps

$9,599.00

+ Free Shipping

In stock

Load machinery with a low-profile deck and Max Ramps. This used 2022 Diamond C equipment trailer offers a 20,000 lb (9,072 kg) gross vehicle weight rating and metallic blue finish. Free standard delivery to the Lower 48.

Get a Quote

Free Standard Crane Delivery Details

Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.

Delivery:
About a week and a half after full payment
Driver Call:
1 day before arrival
Offloading:
Crane offloading & placement included

Guaranteed Safe Checkout

  • WIRE TRANSFER
  • ACH
SKU:
LL-TRL-002
Categories:
Trailers, Car & Equipment Trailers
Brand:
Lease Lane Containers

Key Features

  • Low-profile frame – reduces the loading angle for equipment

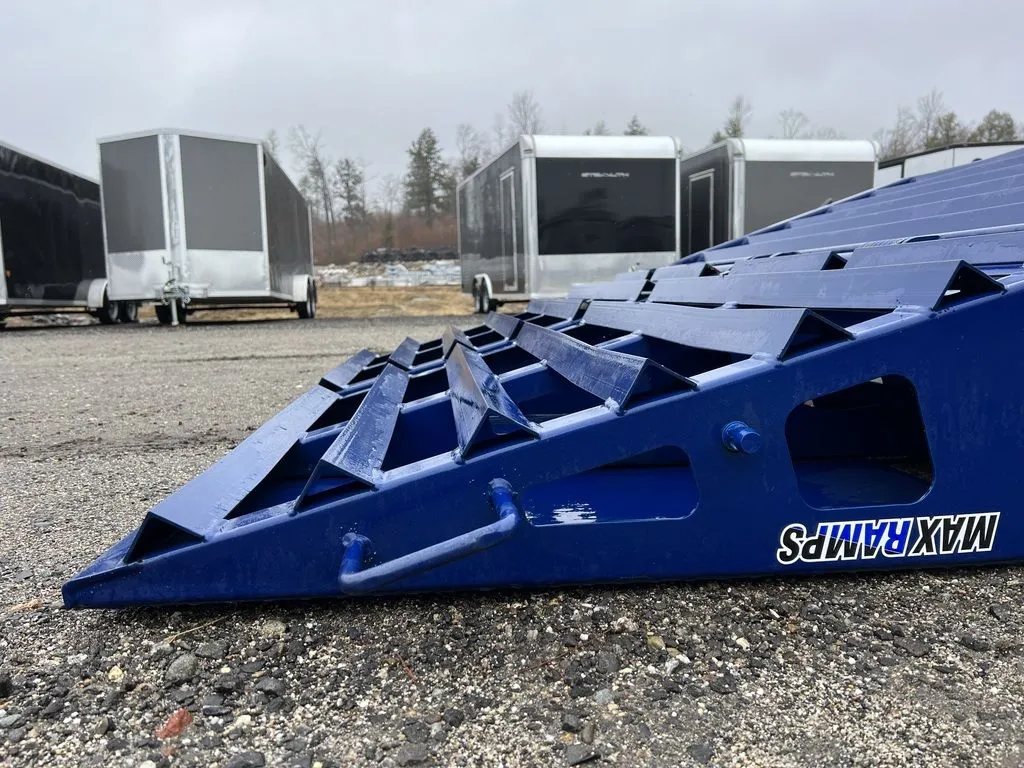

  • Max Ramps – support machinery loading at the dovetail
  • Self-cleaning dovetail – helps shed debris during loading
  • Winch mounting plate – provides a mounting point for loading equipment
  • Treated decking – provides a working surface for machinery

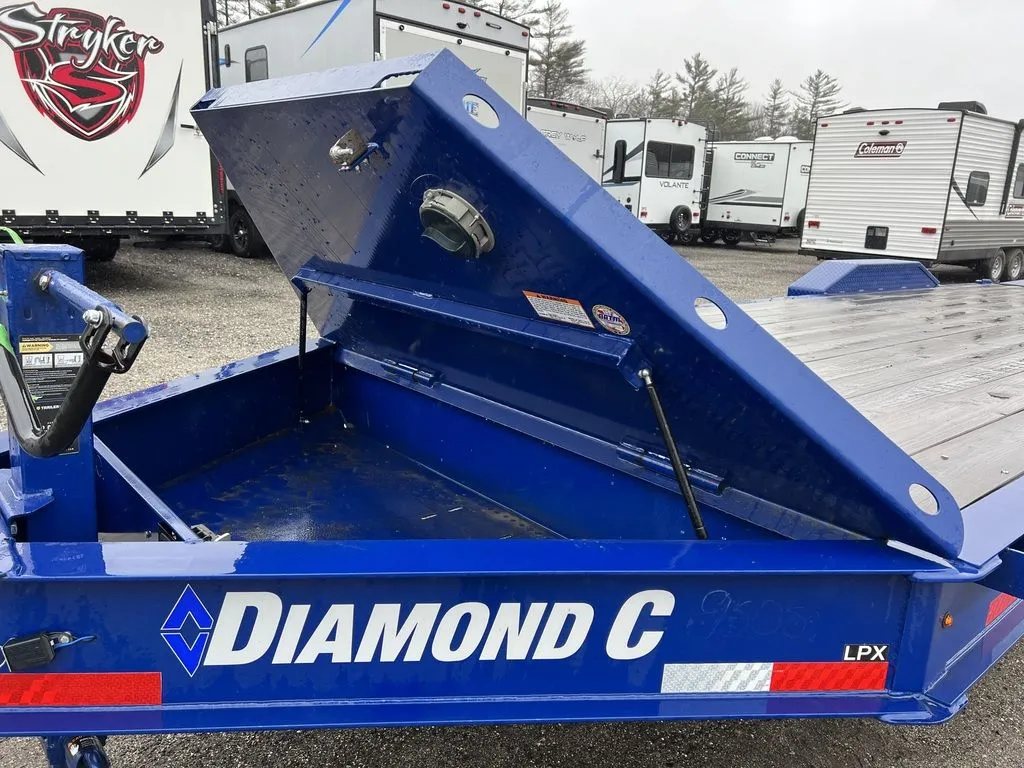

  • Tongue storage box – organizes hauling accessories
  • Four D-rings – provide dedicated tie-down attachment points
  • Six stake pockets – add attachment locations around the deck
  • Electric drum brakes – braking equipment on both axles
  • LED lighting – illuminates trailer signals

Overview

This used 2022 Diamond C LPX210L24X82 equipment trailer combines a metallic blue finish with a low-profile layout for hauling machinery. Its gross vehicle weight rating is 20,000 lb (9,072 kg), with an empty weight of 4,380 lb (1,987 kg) and a payload rating of 15,620 lb (7,085 kg).

Layout & Design

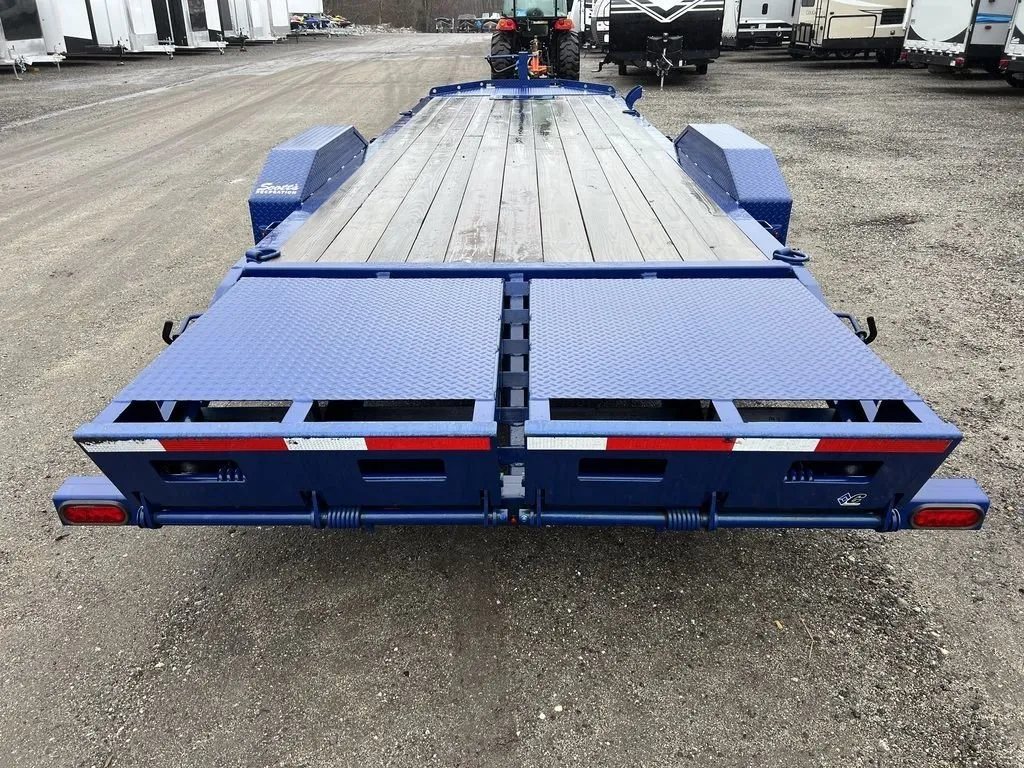

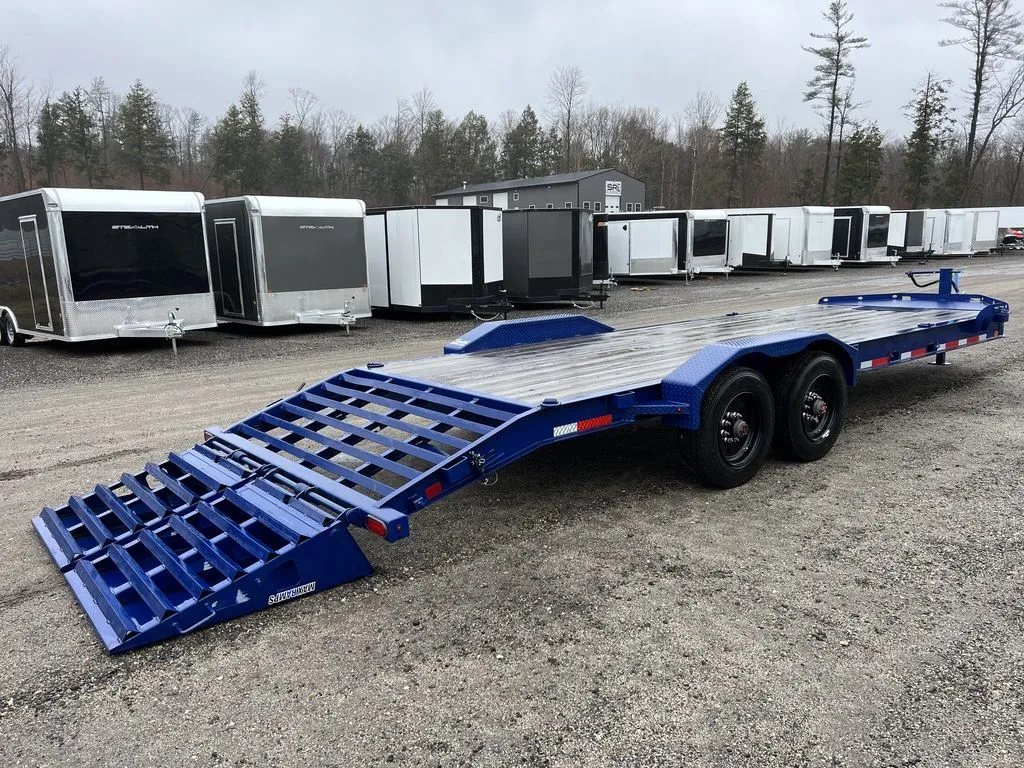

The deck measures 24 ft (7.32 m) long by 7 ft (2.13 m) wide. An engineered beam frame with an integral tongue keeps the deck low, reducing the approach angle for loading. At the rear, a 36 in (91.44 cm) self-cleaning dovetail pairs with Max Ramps to help manage equipment access and shed debris.

Materials & Build

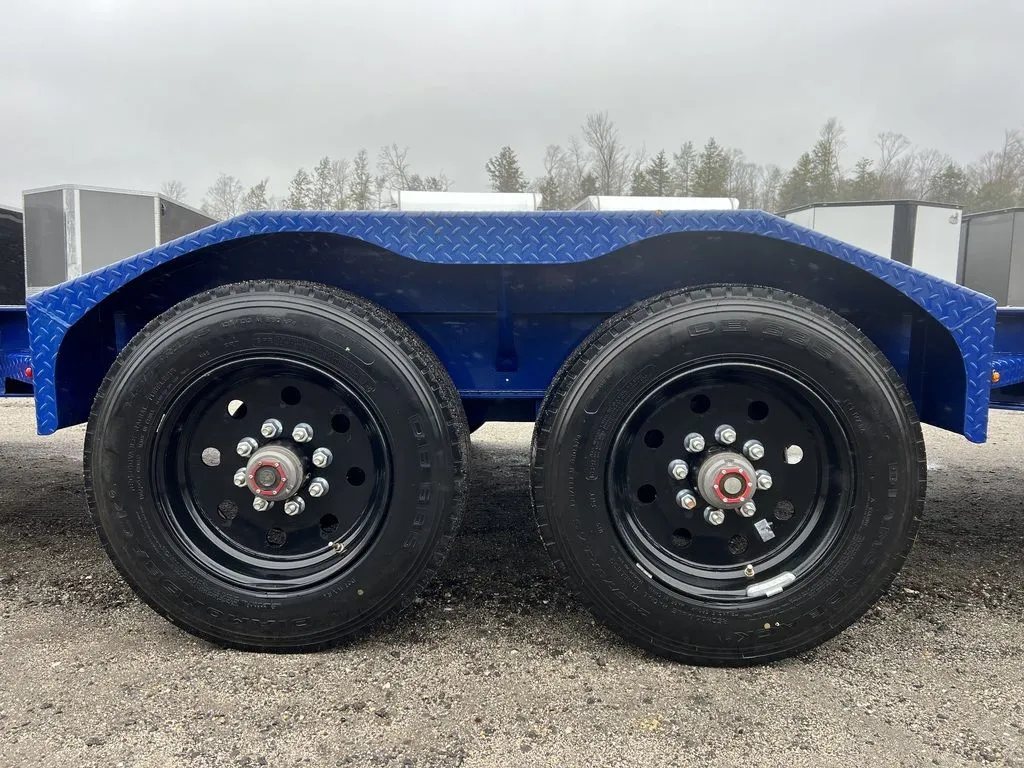

Treated decking and diamond plate fenders provide practical working surfaces. Two torsion straight axles carry electric drum brakes, while black steel wheels and LED lighting complete the running equipment. The frame uses I-beam members spaced on regular centers.

What's Included

  • Max Ramps and self-cleaning dovetail
  • Winch mounting plate

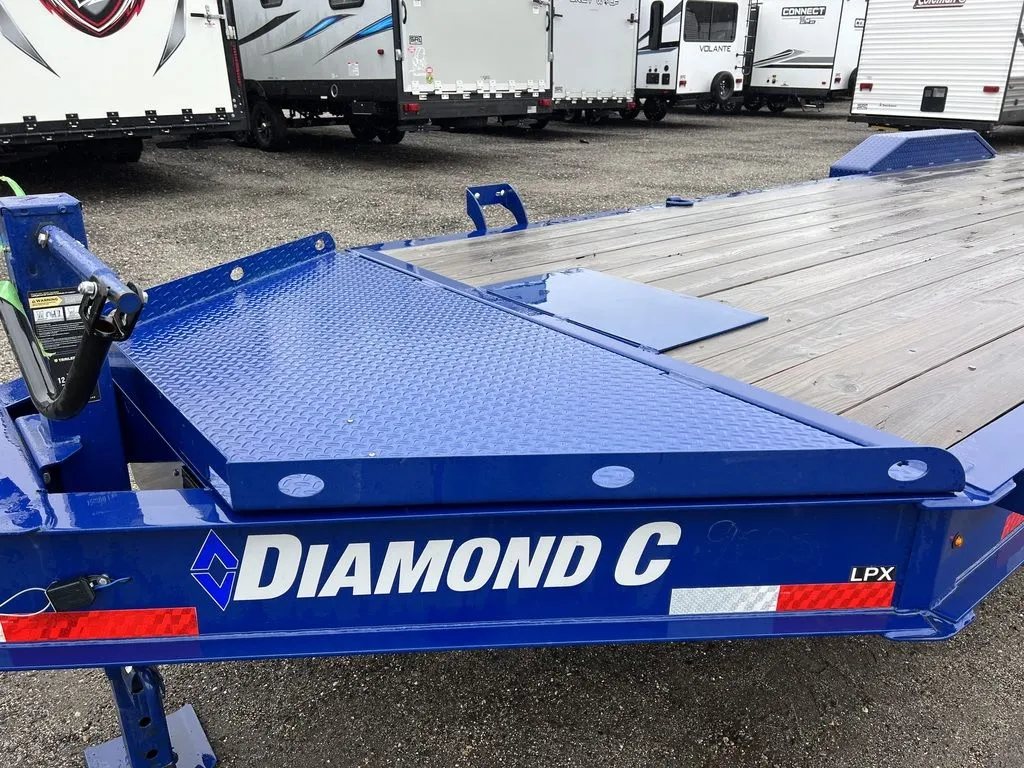

  • Heavy-duty V-tongue storage box with lid and fork holder
  • Six stake pockets and four D-rings

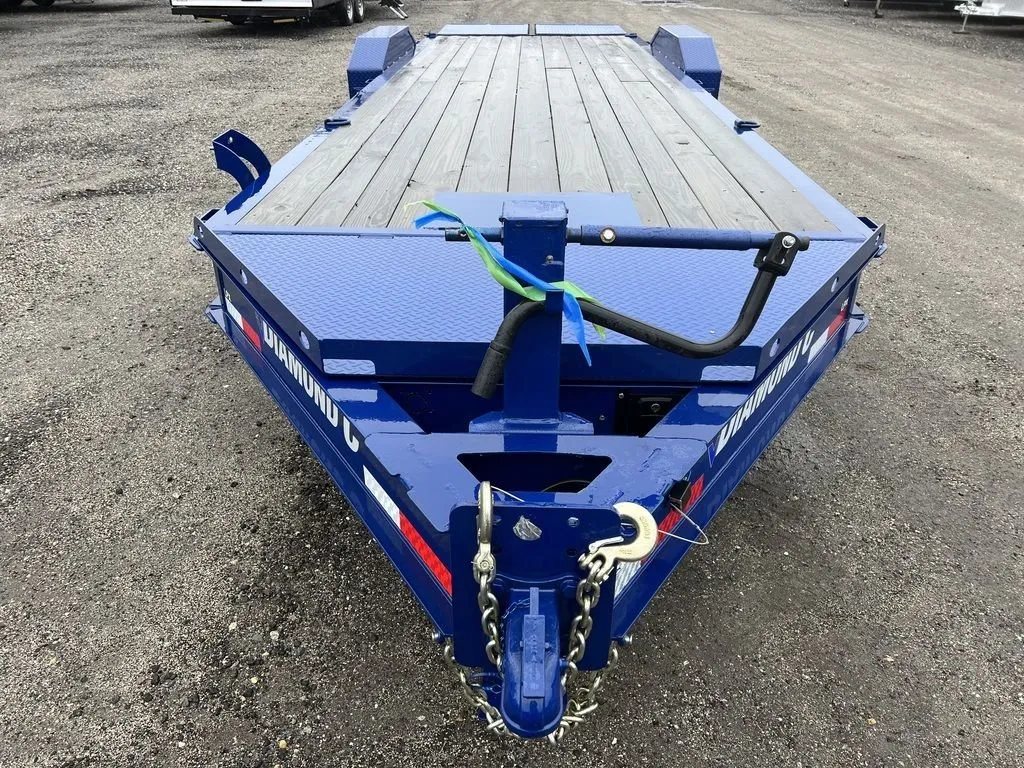

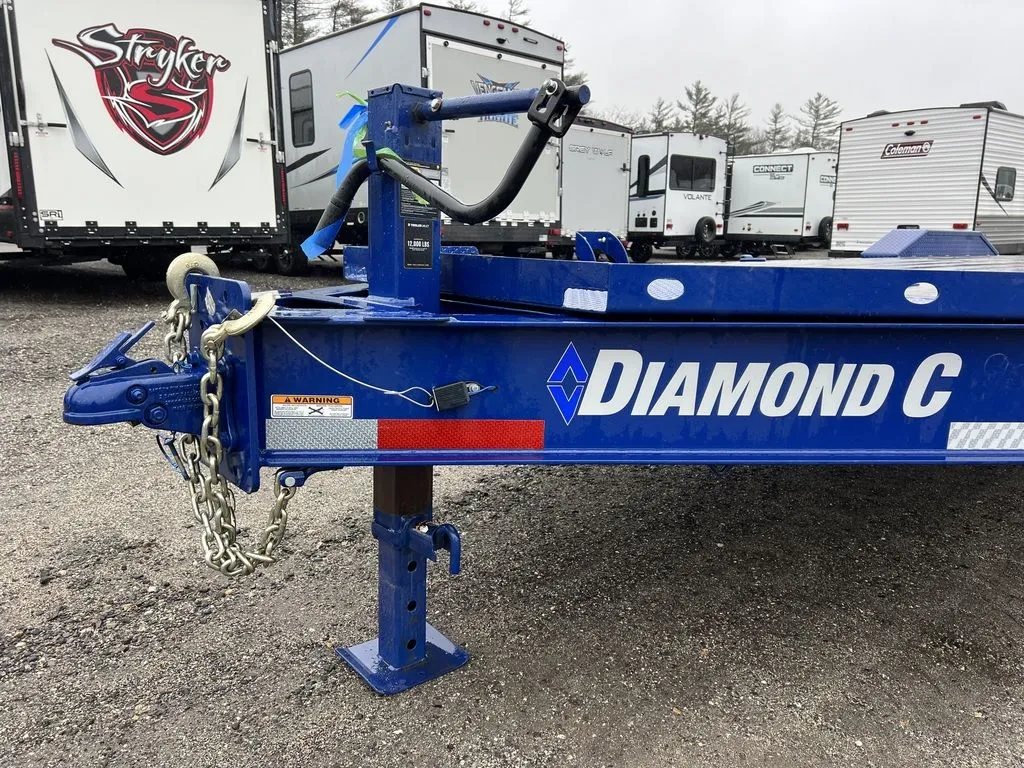

  • Flat-mount coupler and drop-leg jack
  • Spare tire mount

Mounting provisions for a winch and spare tire are included. Inclusion of a winch or spare tire is confirmed in your written quote.

Ideal Uses

This trailer suits equipment hauling applications involving tractors, skid steers, and compact machinery within its ratings. Check the complete loaded weight, equipment dimensions, tow vehicle capacity, and hitch rating before selecting a hauling setup. For this used unit, confirm axle, brake, deck, and ramp condition before operation.

Delivery

Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.

Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.

Why Buy from Lease Lane Containers

  • Raleigh, NC team
  • Free standard delivery to the Lower 48
  • Sales tax included and paid by Lease Lane Containers
  • 30-day return window (Refund & Returns Policy)

Specifications

SpecificationDetail

Overview

Year2022
MakeDiamond C
ModelLPX210L24X82
TypeLow-profile equipment trailer
HitchBumper pull

Dimensions

Deck Length × Width24 ft (7.32 m) × 7 ft (2.13 m)

Build

FrameEngineered beam frame with integral tongue; 3 in (7.62 cm) I-beam on 12 in (30.48 cm) centers
Fenders3/16 in (0.48 cm) diamond plate
DeckingTreated decking
Ramp and DovetailMax Ramps with 36 in (91.44 cm) self-cleaning dovetail
Tie-Down ProvisionsSix stake pockets and four 5/8 in (1.59 cm) D-rings
Storage and MountsHeavy-duty V-tongue box with lid, fork holder, winch mounting plate, and spare tire mount
CouplerFlat-mount coupler rated at 20,000 lb (9,072 kg)
JackDrop-leg jack rated at 12,000 lb (5,443 kg)
Exterior ColorMetallic blue

Running Gear

AxlesTwo torsion straight axles, each rated at 10,000 lb (4,536 kg)
BrakesElectric drum brakes, rated at 10,000 lb (4,536 kg)
Gross Vehicle Weight Rating20,000 lb (9,072 kg)
Empty Weight4,380 lb (1,987 kg)
Payload15,620 lb (7,085 kg)
WheelsBlack steel wheels

Electrical & Plumbing

LightingLED lighting throughout

Condition

ConditionUsed (2022)

Delivery

DeliveryFree standard delivery to the Lower 48 · about a week and a half after full payment
