2024 Diamond C 24 ft Tilt Trailer – Spare Mount

Overview

The 2024 Diamond C HDT21024X82 combines equipment-hauling capacity with controlled tilt loading. This new, black trailer has a gross vehicle weight rating of 20,000 lb (9,072 kg), an empty weight of 4,630 lb (2,100 kg), and a payload of 15,370 lb (6,972 kg). A spare mount is part of this configuration.

Layout & Design

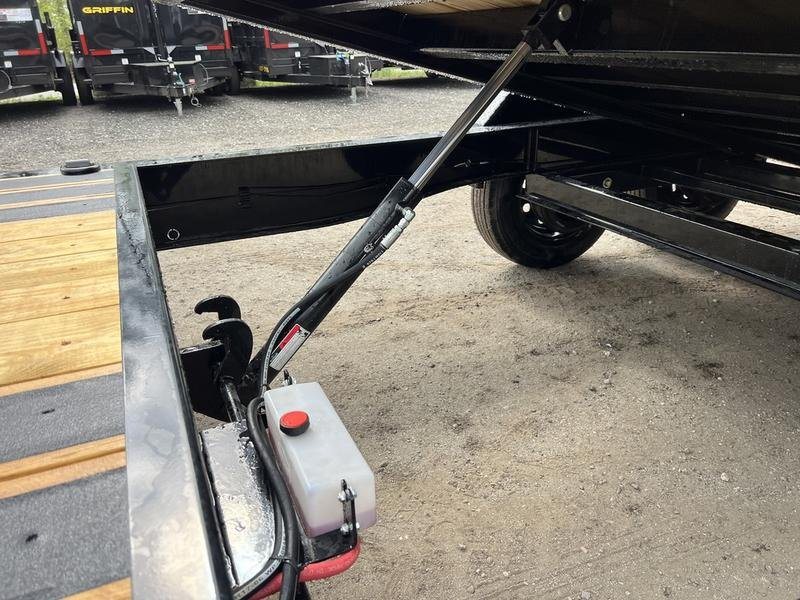

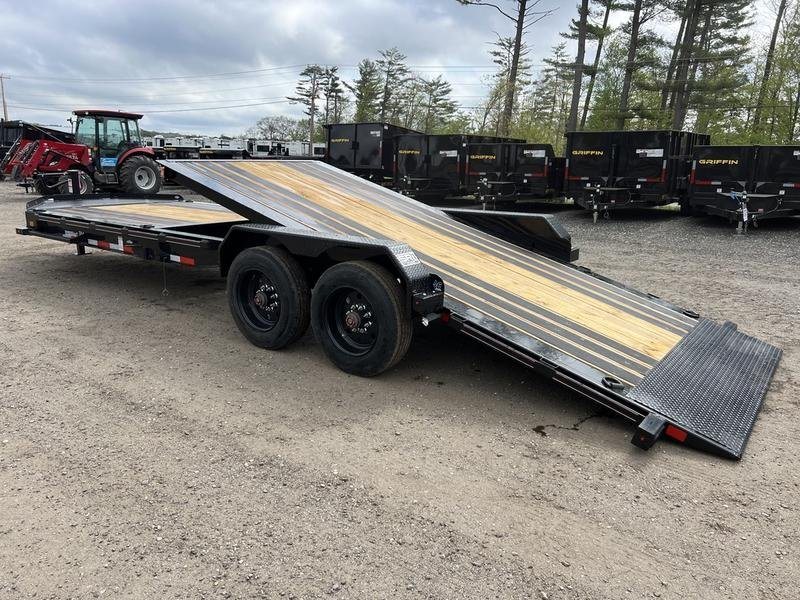

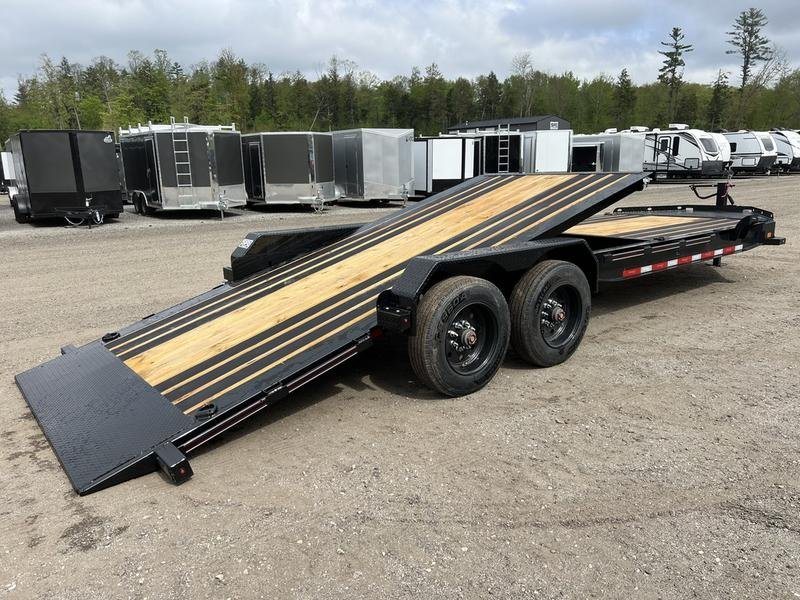

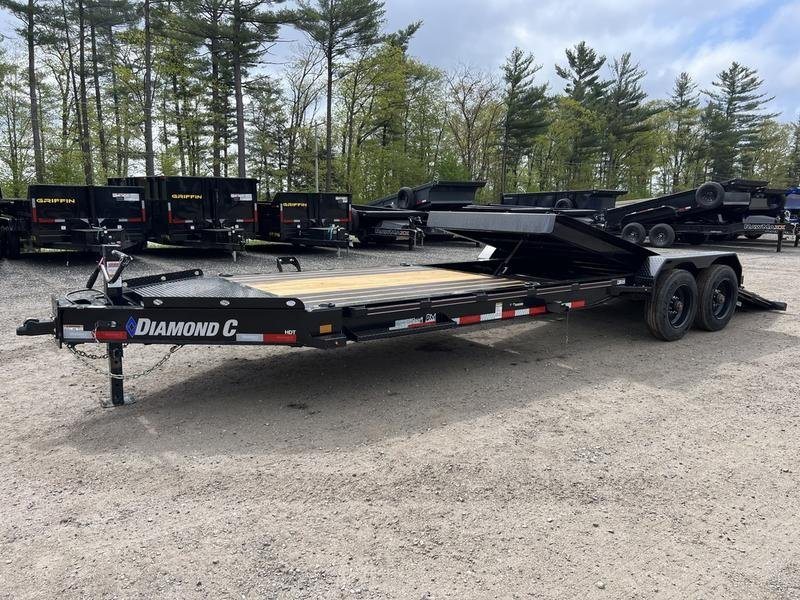

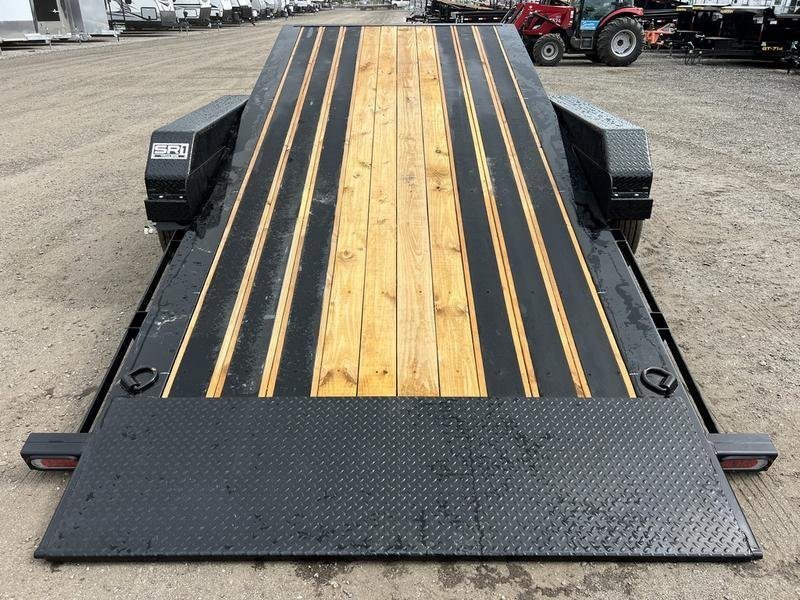

The deck measures 7 ft (2.13 m) wide by 24 ft (7.32 m) long. An 8 ft (2.44 m) fixed front section pairs with a 16 ft (4.88 m) hydraulic-dampened tilt section. The tilting bed provides drive-on access without separate ramps, while hydraulic damping moderates deck movement.

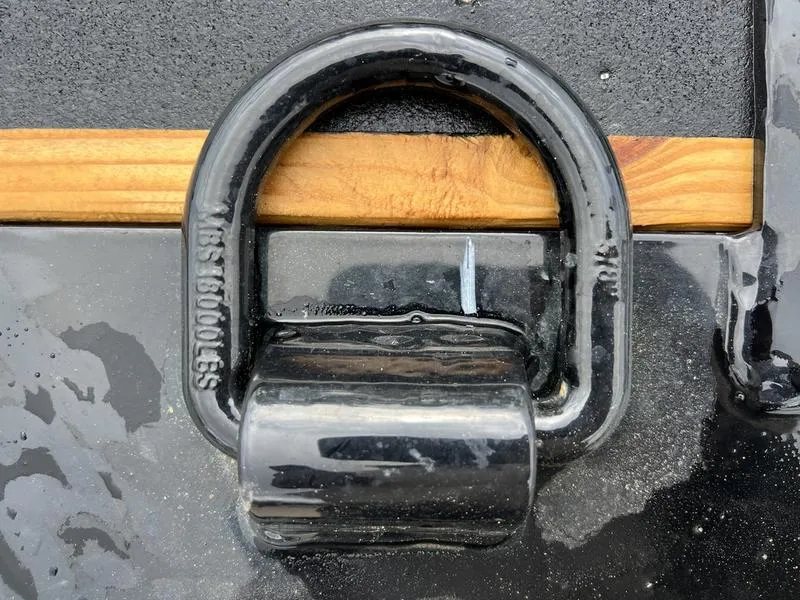

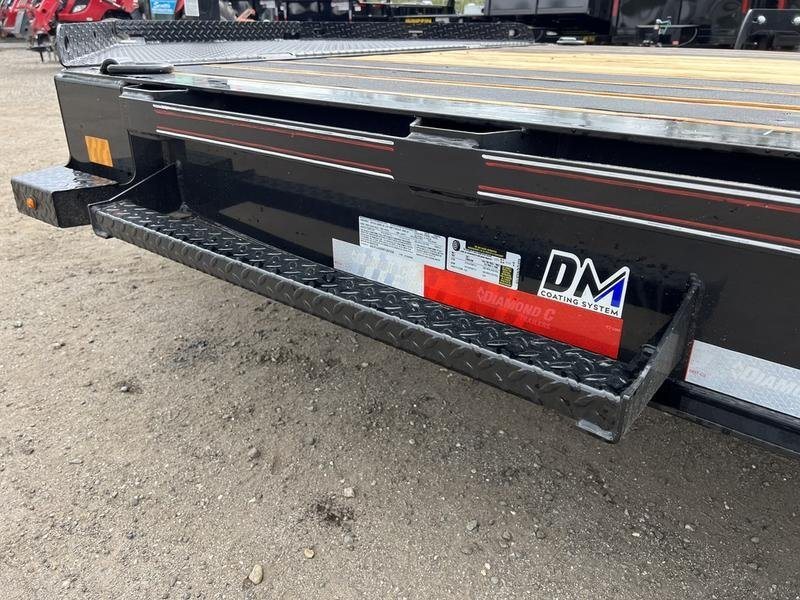

Six D-rings, stake pockets, and a rub rail provide load-securement provisions. A side step supports access to the deck.

Materials & Build

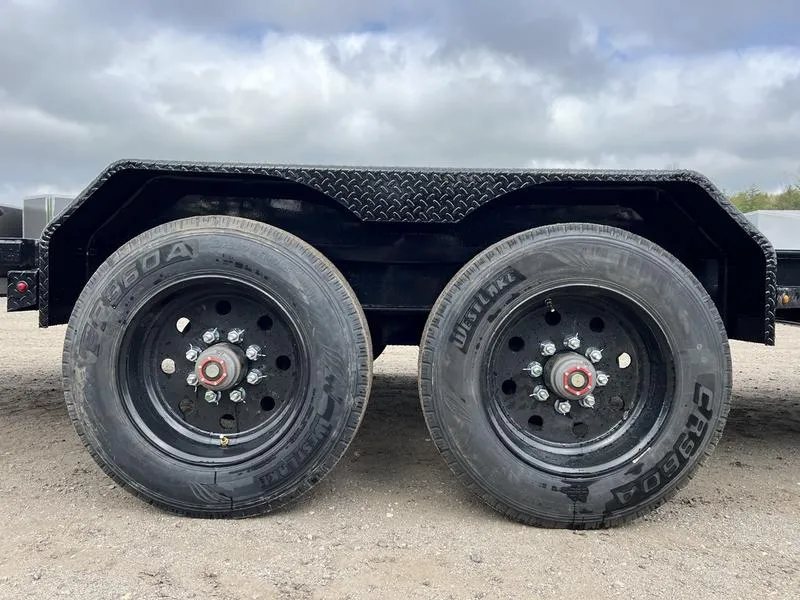

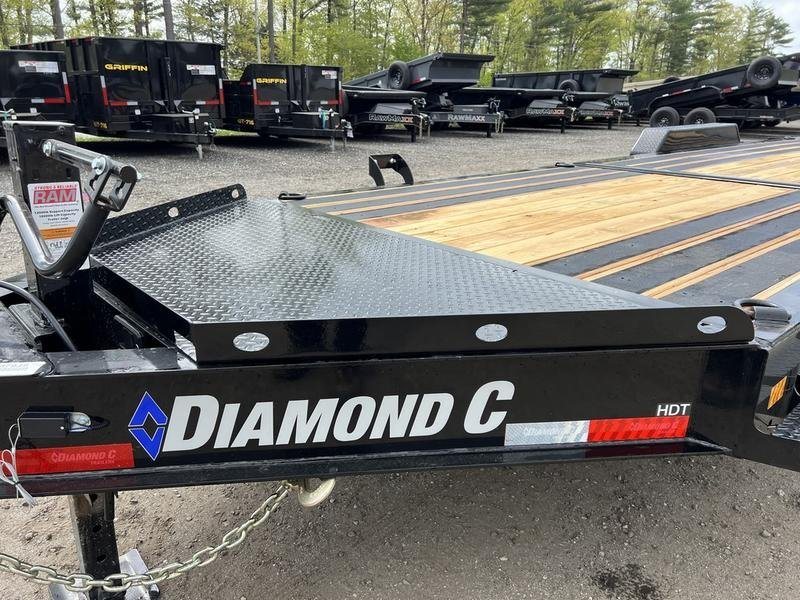

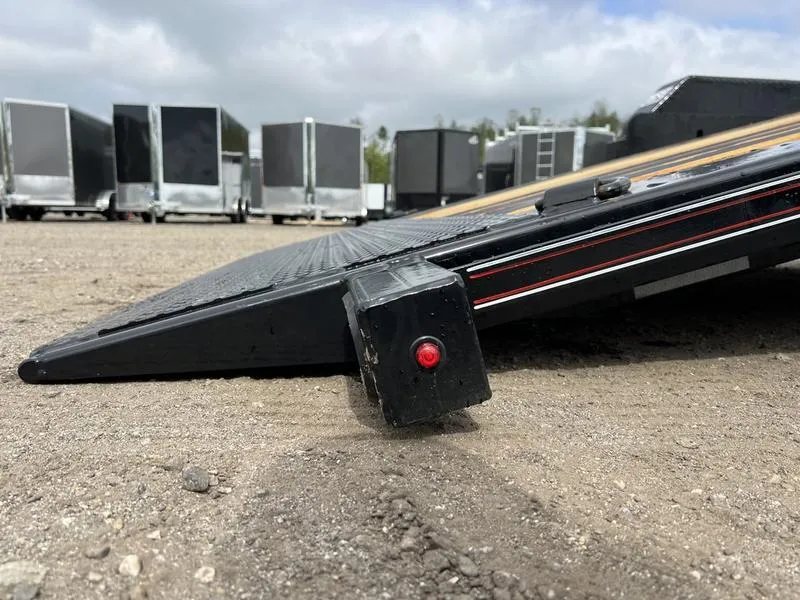

An engineered-beam frame supports pressure-treated decking. Two torsion straight axles, each rated at 10,000 lb (4,536 kg), carry electric drum brakes. Radial tires, teardrop diamond plate fenders, and LED lighting complete the running and exterior equipment.

What's Included

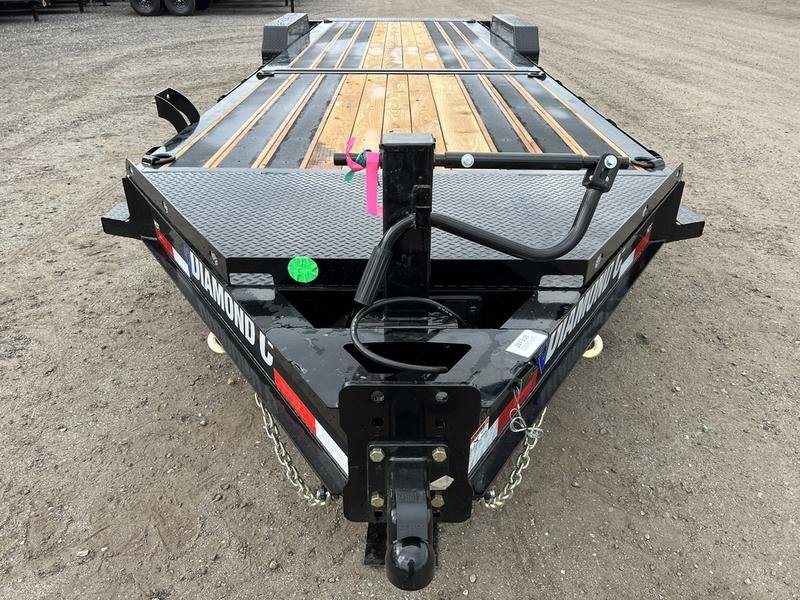

• Adjustable Demco EZ-Latch coupler
• Drop-leg jack

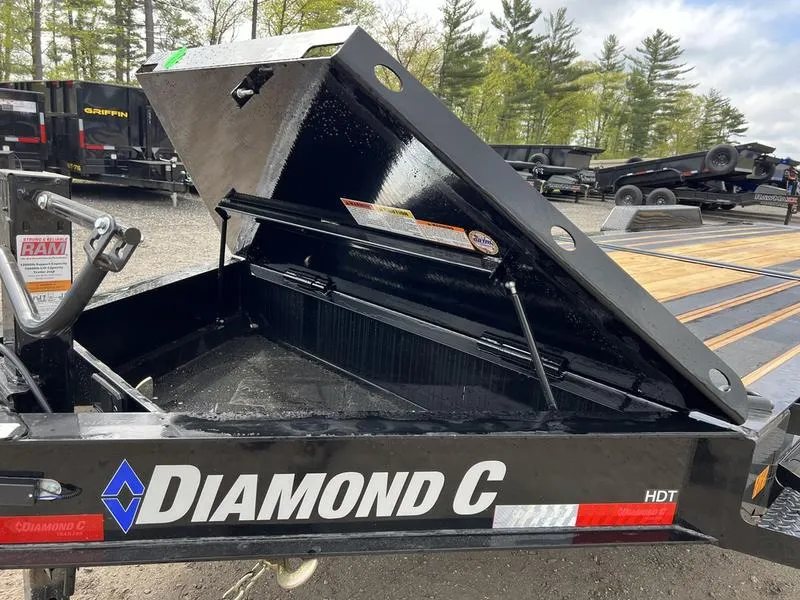

• V-tongue storage toolbox with heavy-duty lid

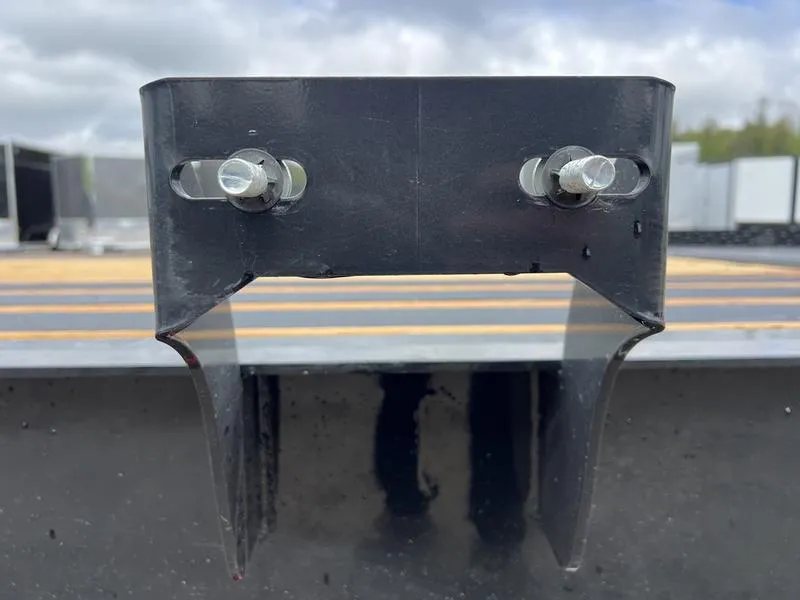

• Spare mount
• Standard pressure-treated deck surface

Spare tire inclusion is confirmed in your written quote.

Ideal Uses

This configuration suits skid steers, tractors, and other machinery within its capacity. Check equipment clearance against the loading angle before use, and account for attachments and other cargo when calculating the total load.

Delivery

Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.

Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
