2024 Diamond C 22 ft Deckover Trailer – Slide-In Ramps
$5,200.00
+ Free Shipping
In stock
Move equipment and materials on a wide deck without fender intrusion. This new 2024 Diamond C features a 22 ft (6.71 m) deck, slide-in ramps, and tandem electric-brake axles. Free standard delivery to the Lower 48.
Free Standard Crane Delivery Details
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
- Delivery:
- About a week and a half after full payment
- Driver Call:
- 1 day before arrival
- Offloading:
- Crane offloading & placement included
Guaranteed Safe Checkout
- WIRE TRANSFER
- ACH
- SKU:
- LL-TRL-009
- Categories:
- Trailers, Car & Equipment Trailers
- Brand:
- Lease Lane Containers
Key Features
- Deckover layout – keeps wheel fenders outside the working surface

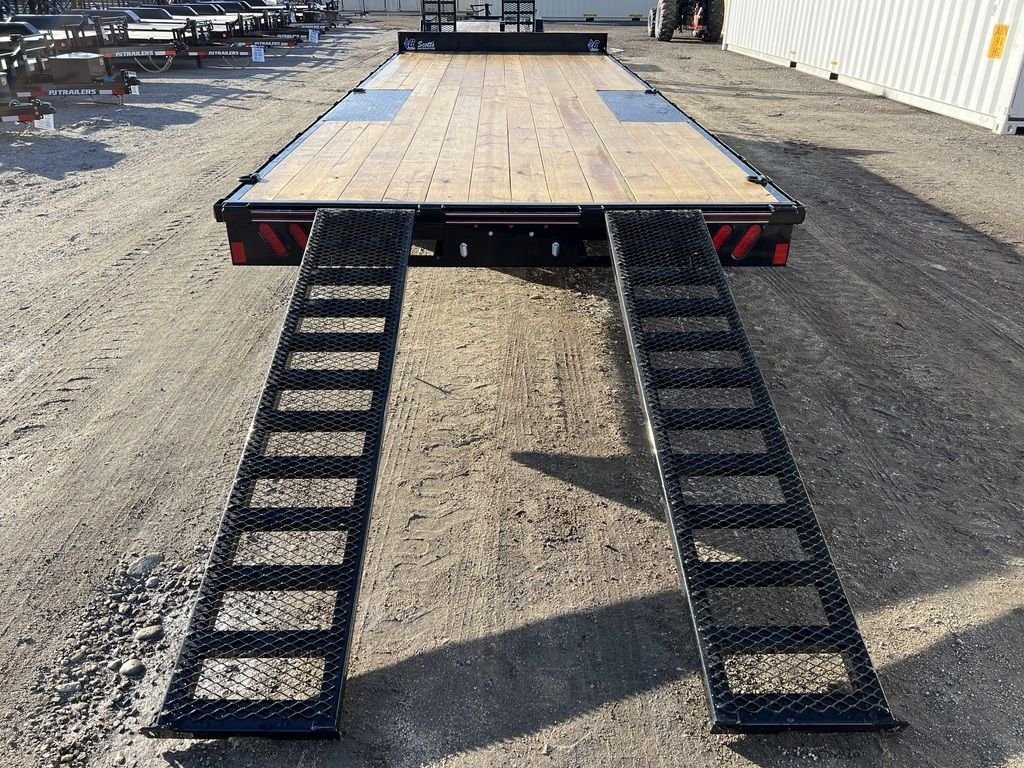

- Slide-in ramps – store at the rear between loading tasks
- Electric-brake axles – braking on both axles
- Treated decking – provides a working surface for equipment and materials

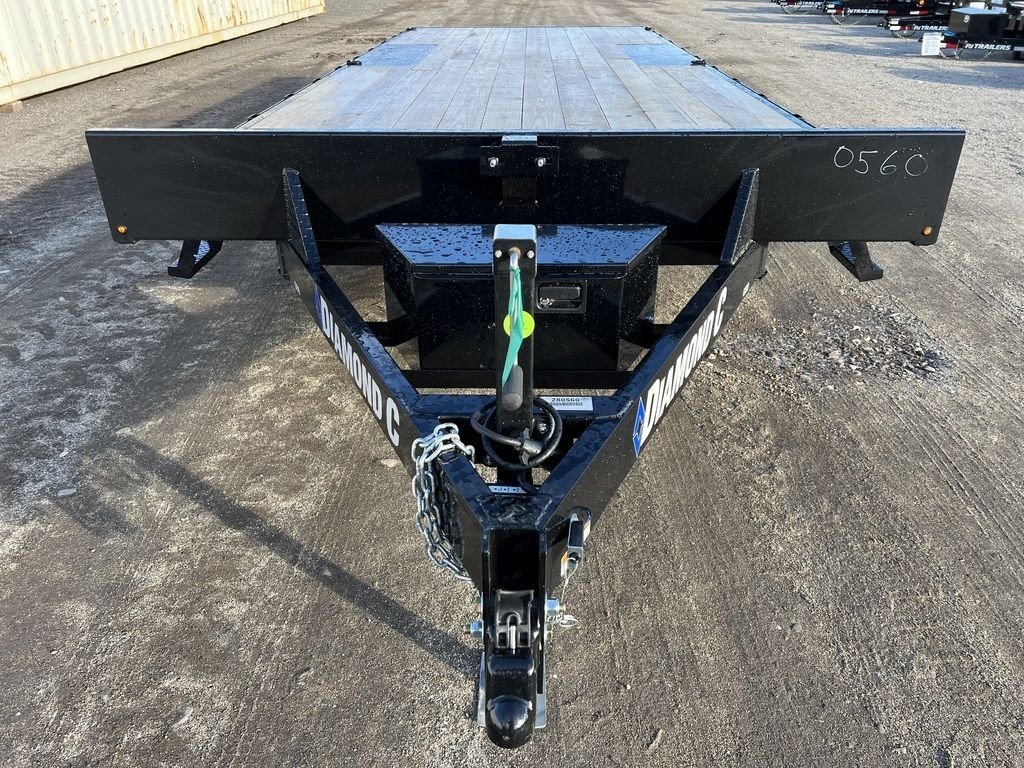

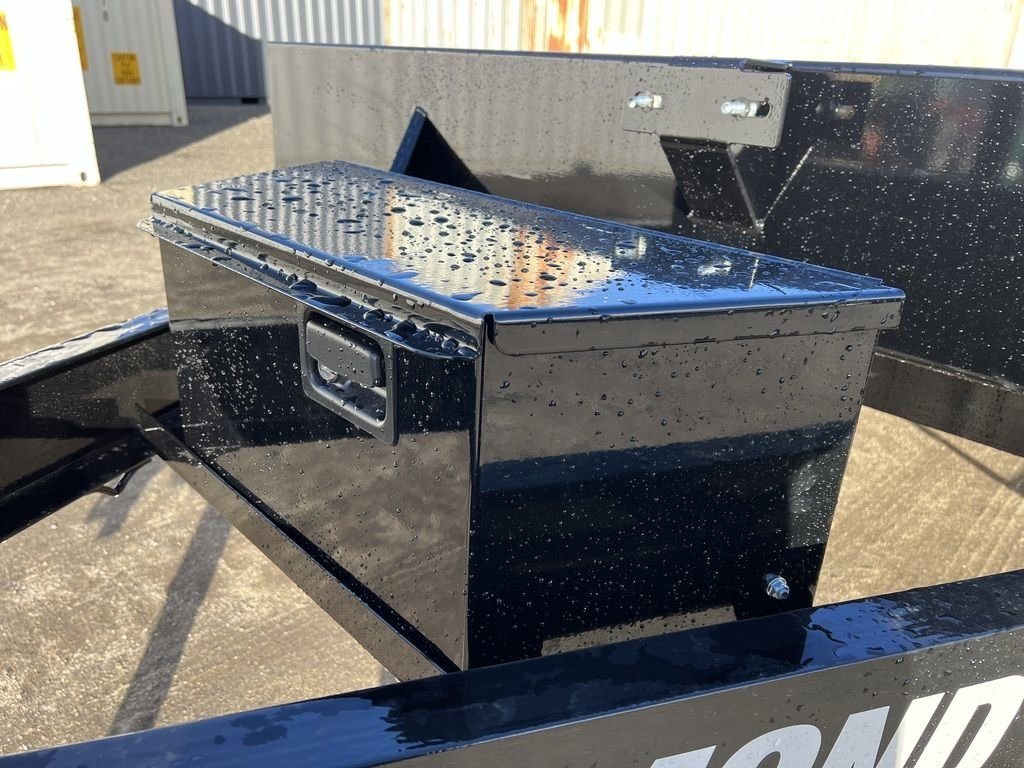

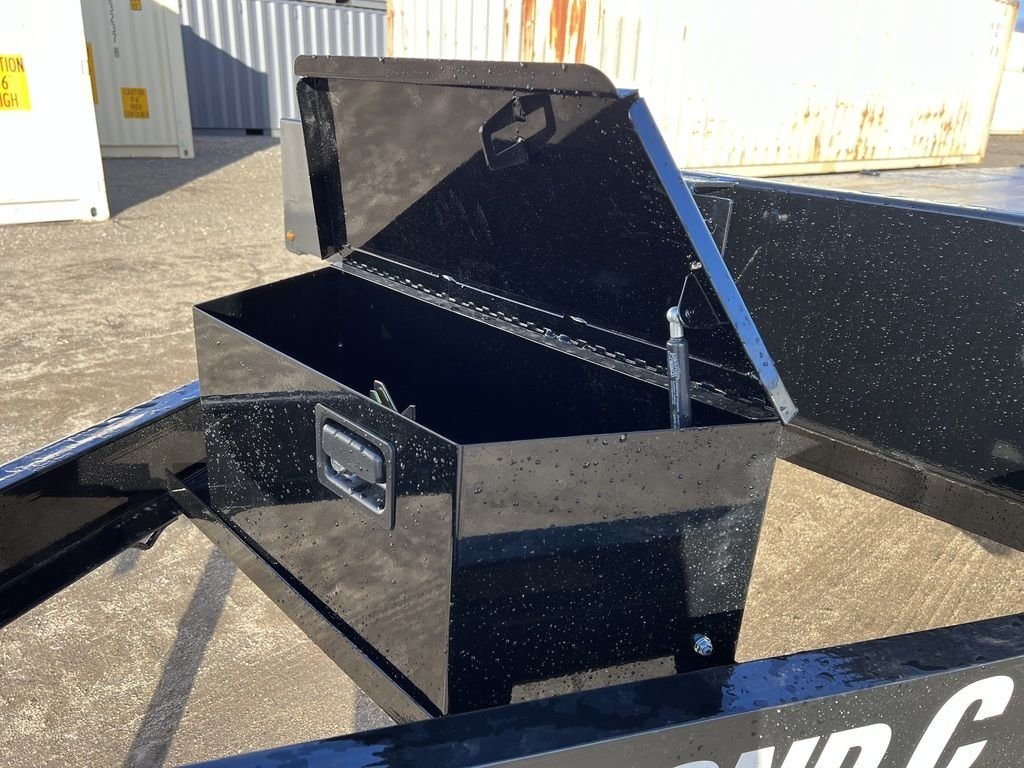

- Lockable tongue box – keeps storage separate from the deck
- D-rings and stake pockets – provide multiple cargo attachment points

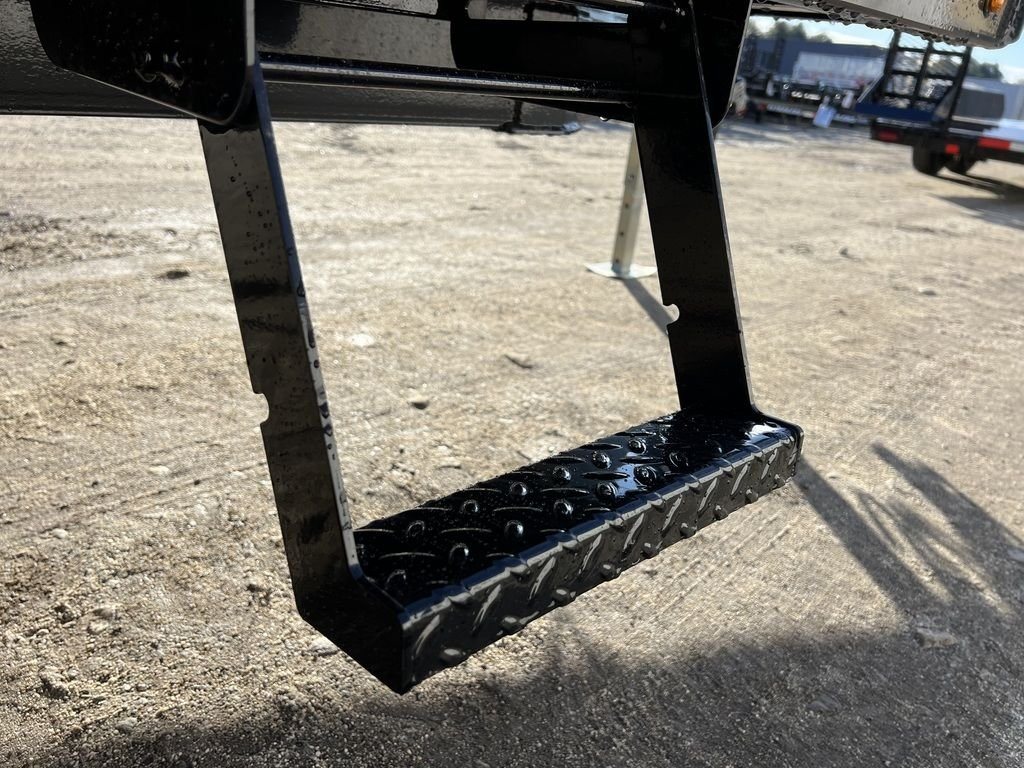

- Retractable steps – support access to the deck
- Spare mount – provides a dedicated spare-tire mounting location
- Adjustable channel coupler – offers hitch-height adjustment
- Black finish – gives the trailer a clean, uniform appearance
Overview

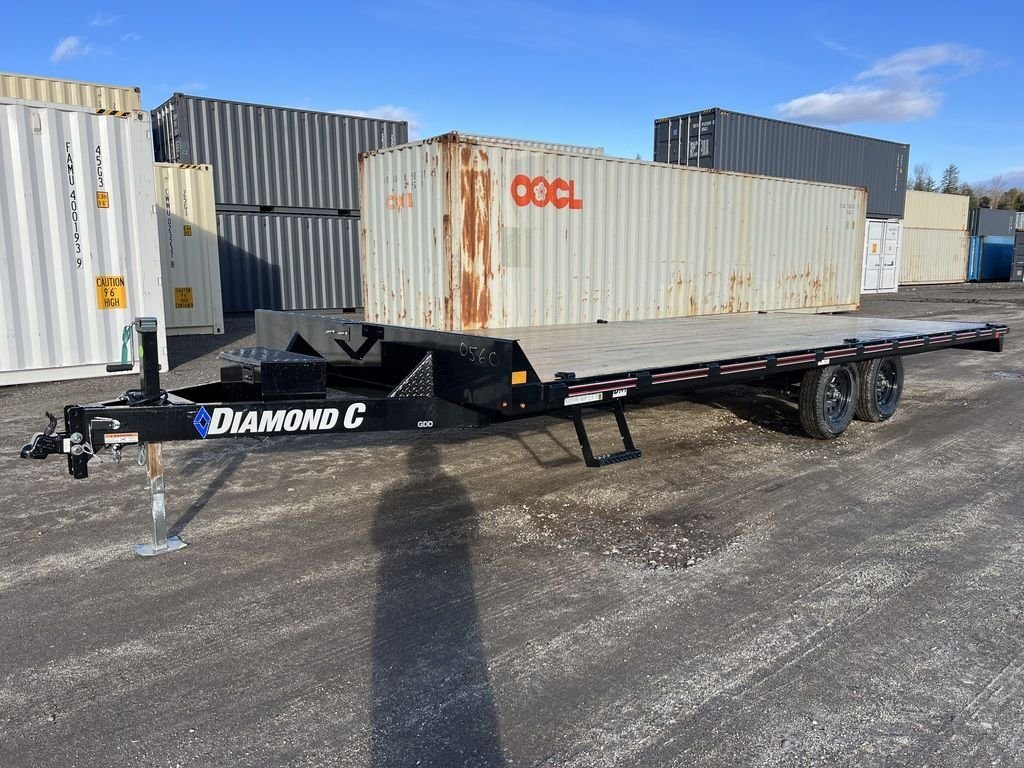

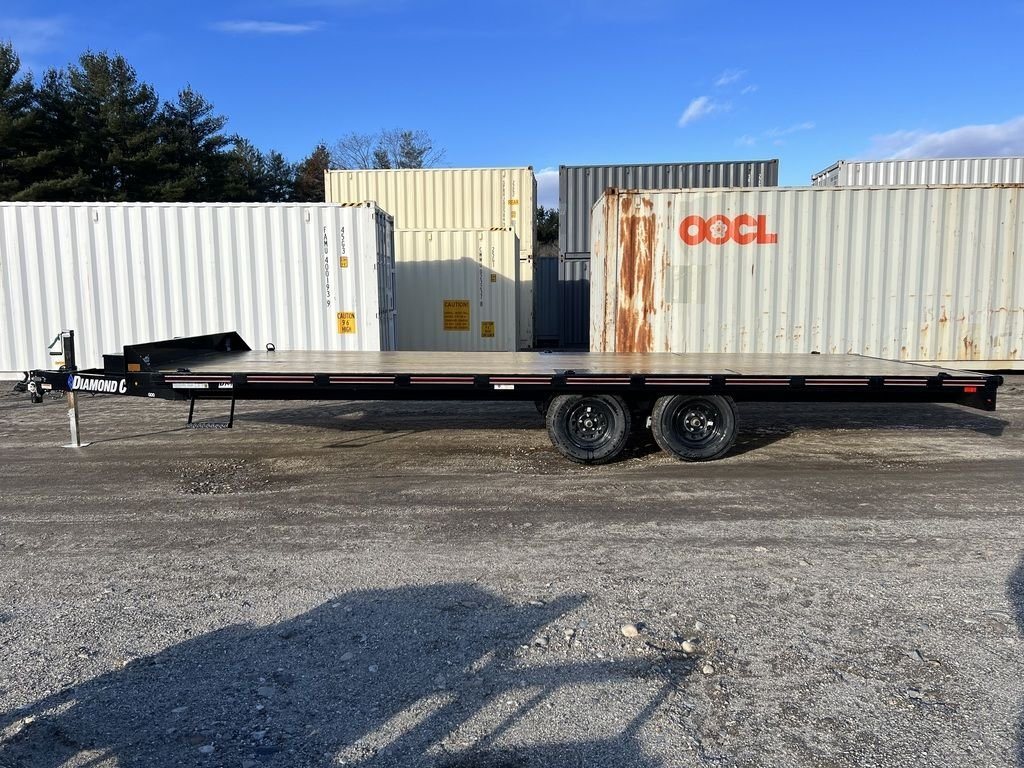

This new 2024 Diamond C GDD23522x102 pairs a long equipment deck with practical loading and storage features. Its 22 ft (6.71 m) deck distinguishes this unit from the shorter version, giving operators additional space to arrange equipment and materials. The exterior finish is black.
Layout & Design

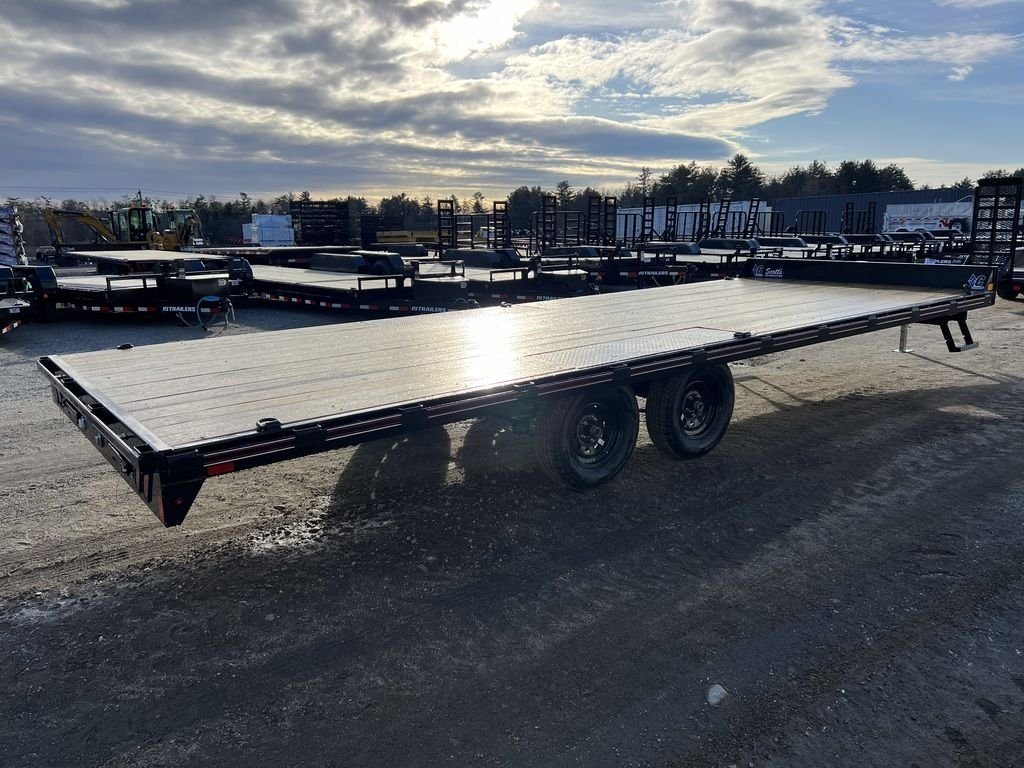

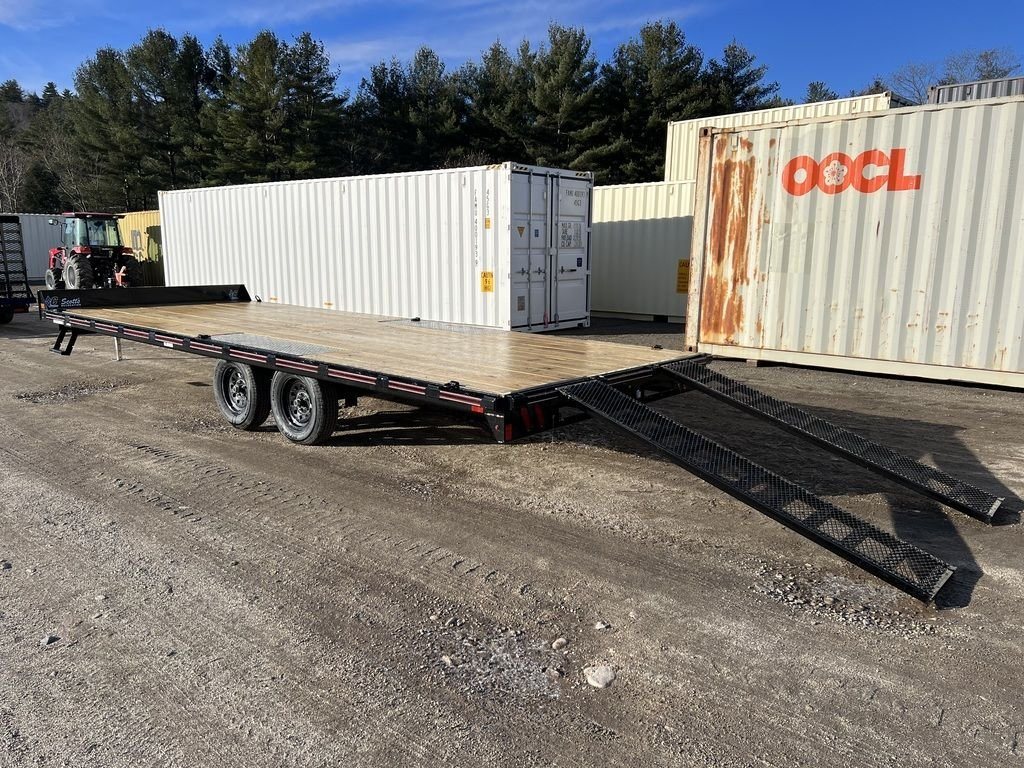

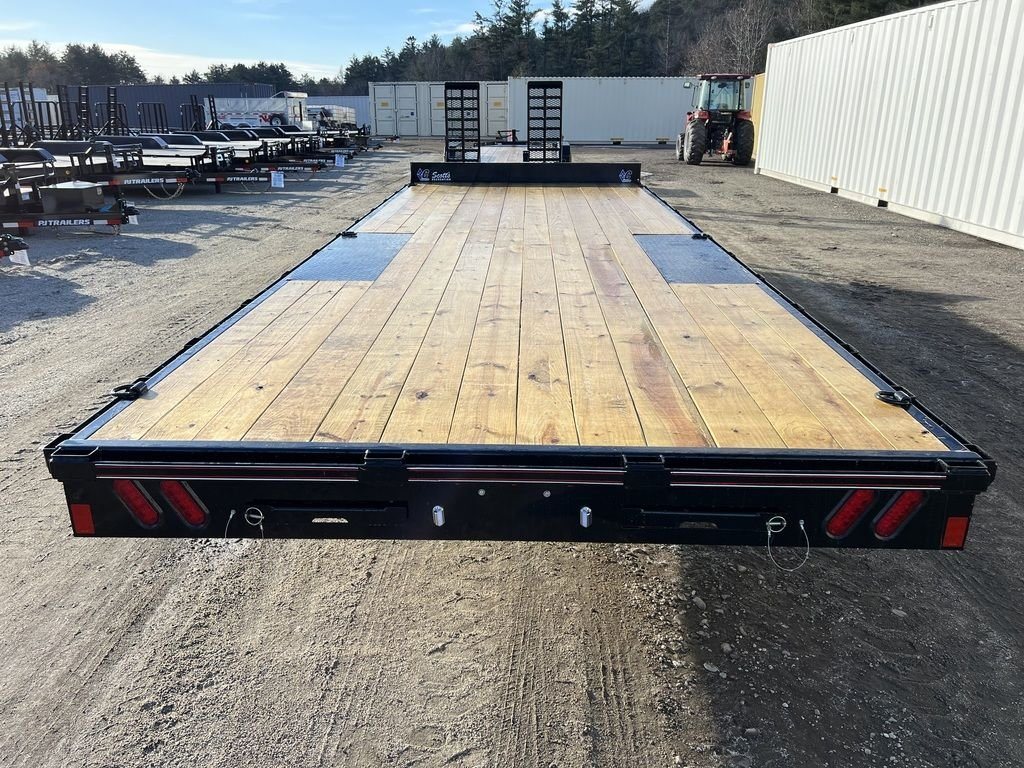

The deck sits above the wheels, leaving the full 8.5 ft (2.59 m) width free of fender intrusion. Rear-stored slide-in ramps provide loading access without occupying the working deck. Retractable steps offer another way to access the platform.
Materials & Build

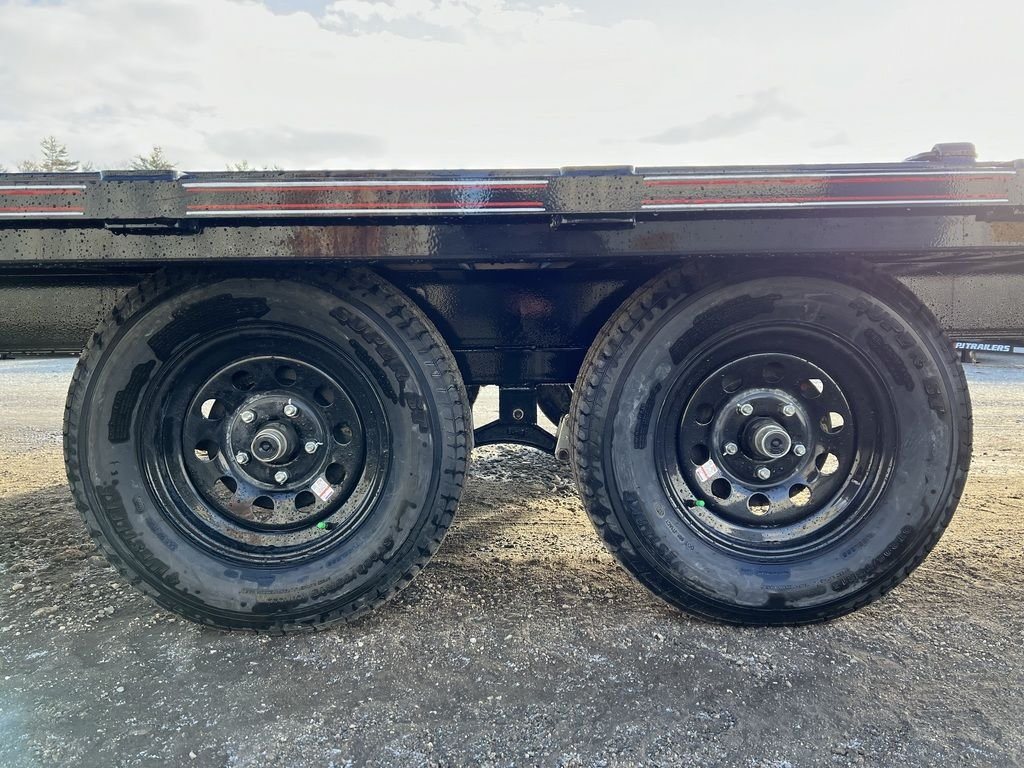

A channel frame, I-beam crossmembers, and treated decking form the platform. Two electric-brake axles use four-leaf spring suspension, with radial tires and LED lighting completing the running equipment.
The gross vehicle weight rating is 7,000 lb (3,175 kg). Empty weight is 3,120 lb (1,415 kg), with a payload of 3,880 lb (1,760 kg). Use the payload figure—not the gross rating—when assessing cargo weight, and confirm tow-vehicle and hitch compatibility.
What's Included
- Slide-in loading ramps and a drop-leg jack.
- Demco EZ-Latch adjustable channel coupler.
- Lockable tongue storage box and spare mount.
- D-rings, stake pockets, pipe spools, and retractable steps.
The spare mount is included; spare-tire inclusion is confirmed in your written quote.
Ideal Uses
This deckover layout suits landscaping equipment, utility vehicles, lumber, and palletized materials within the payload. Check cargo dimensions, weight, and loading requirements before selecting the trailer for a particular machine.
Delivery
Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
Why Buy from Lease Lane Containers
- Raleigh, NC team.
- Free standard delivery to the Lower 48.
- Sales tax included and paid by Lease Lane Containers.
- 30-day return window (Refund & Returns Policy).
Specifications
| Specification | Detail |
|---|---|
Overview | |
| Year | 2024 |
| Make | Diamond C |
| Model | GDD23522x102 |
| Type | Deckover equipment trailer |
Dimensions | |
| Deck Length × Width | 22 ft × 8.5 ft (6.71 m × 2.59 m) |
Build | |
| Frame | 6 in (15.24 cm) channel frame; integral channel tongue |
| Crossmembers | 3 in (7.62 cm) I-beams on 24 in (60.96 cm) centers |
| Decking | 2 in (5.08 cm) treated decking |

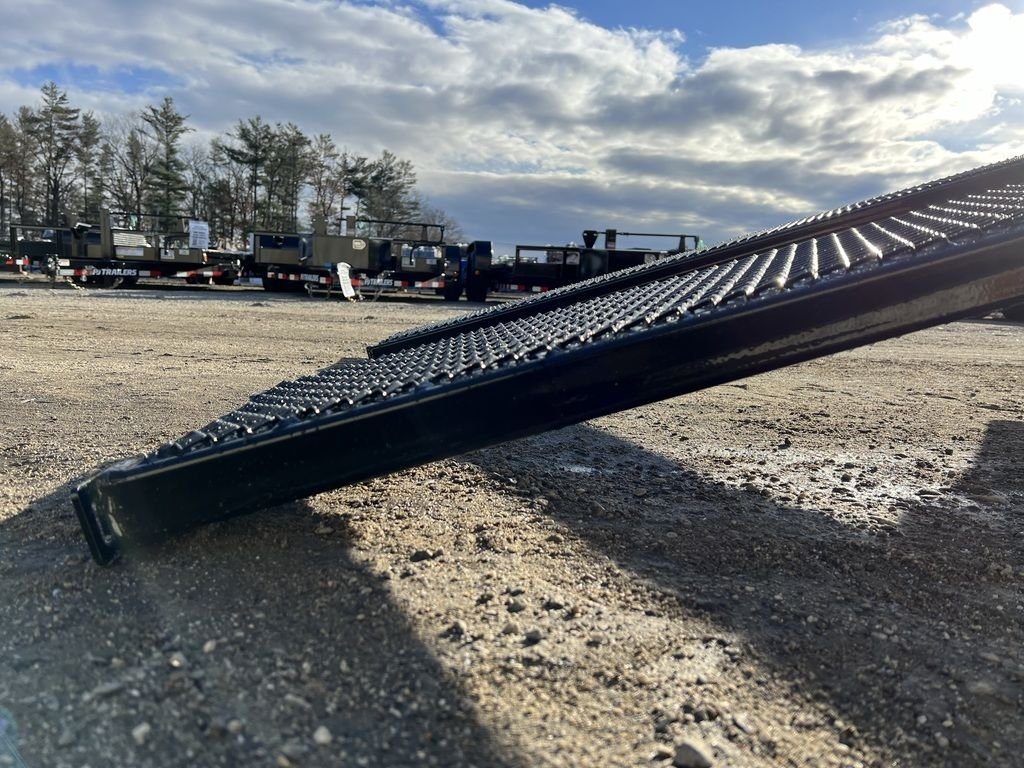

| Ramps | 82 in (208.28 cm) slide-in ramps made with 2 in (5.08 cm) square tube |
| Rub Rail | 2 in × 0.25 in (5.08 cm × 0.635 cm), with stake pockets and pipe spools |
| D-Rings | 0.5 in (1.27 cm) D-rings |
| Jack | 7,000 lb (3,175 kg) drop-leg jack |
| Storage & Access | Lockable tongue box, spare mount, and retractable steps |
| Finish | Black |
Running Gear | |

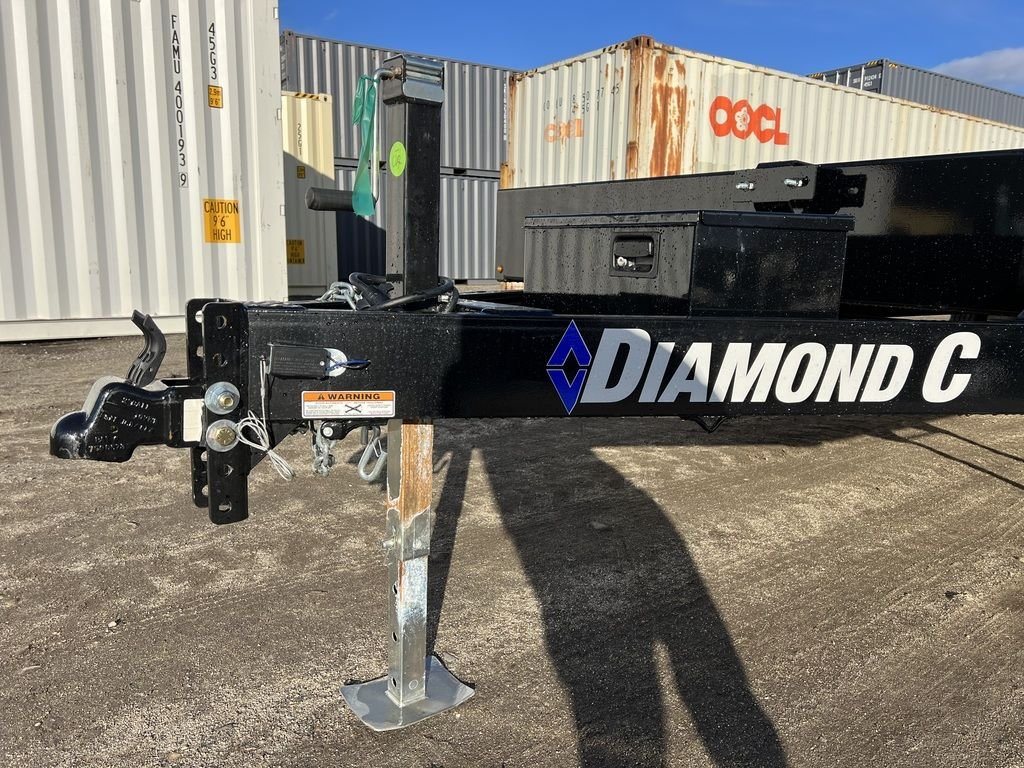

| Coupler | Demco EZ-Latch adjustable channel coupler; 2 in (5.08 cm), rated 10,000 lb (4,536 kg) |
| Axles | Two Super Lube electric-brake axles, each rated 3,500 lb (1,588 kg) |
| Suspension | Four-leaf spring suspension |
| Gross Vehicle Weight Rating | 7,000 lb (3,175 kg) |
| Empty Weight | 3,120 lb (1,415 kg) |
| Payload | 3,880 lb (1,760 kg) |
| Tires | ST205/75R15 radial tires |
Electrical & Plumbing | |
| Lighting | LED lighting throughout |
Condition | |
| Condition | New (2024) |
Delivery | |
| Delivery | Free standard delivery to the Lower 48 · about a week and a half after full payment |
