2024 Diamond C 24 ft Deckover – Blackwood Deck
$8,000.00
+ Free Shipping
In stock
Carry wide equipment on an unobstructed deck with Blackwood decking and flip-knee ramps. Rated payload is 10,510 lb (4,767 kg), with a black powder-coated finish. Free standard delivery to the Lower 48.
Free Standard Crane Delivery Details
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
- Delivery:
- About a week and a half after full payment
- Driver Call:
- 1 day before arrival
- Offloading:
- Crane offloading & placement included
Guaranteed Safe Checkout
- WIRE TRANSFER
- ACH
- SKU:
- LL-TRL-011
- Categories:
- Trailers, Car & Equipment Trailers
- Brand:
- Lease Lane Containers
Key Features
- Deckover layout – unobstructed width for wider equipment
- Blackwood decking – full coverage across the load surface
- Flip-knee ramps – paired with a dovetail for equipment loading
- Electric drum brakes – fitted to both axles

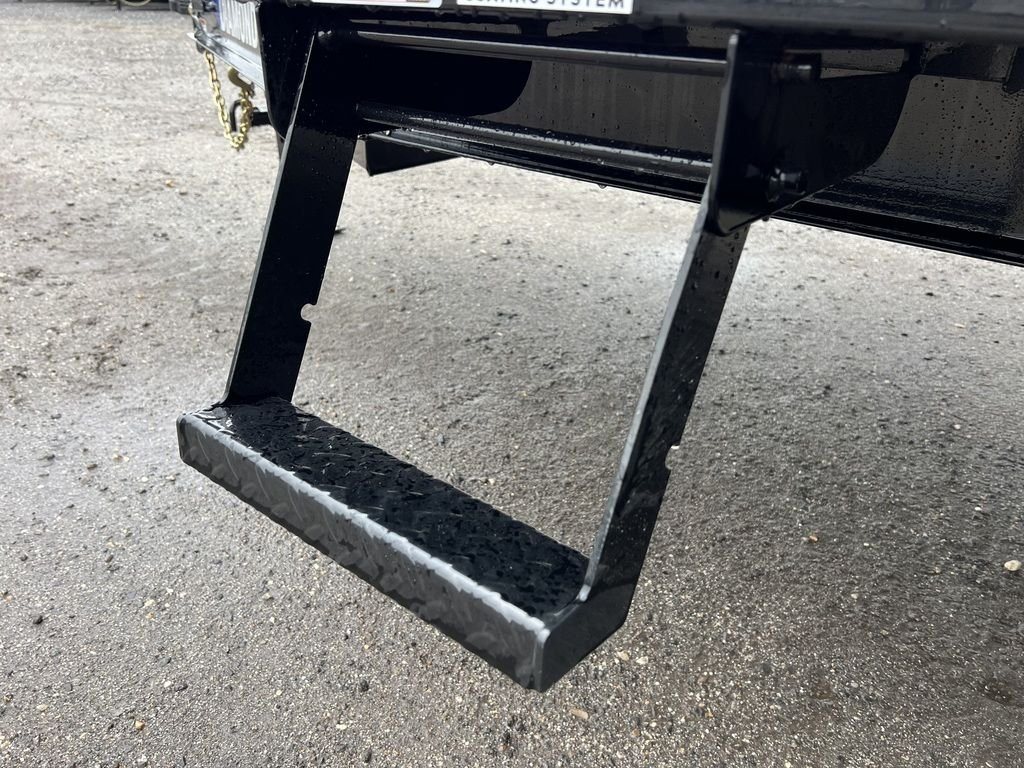

- Retractable front steps – convenient access to the deck
- Dual storage boxes – dedicated space for hauling accessories
- Six extra D-rings – additional cargo securement points
- Powder-coated finish – black exterior with a durable coating
- Slipper spring suspension – six-leaf configuration supports the running gear
Overview
This new 2024 Diamond C DEC20724x102 deckover provides an open platform for moving equipment, attachments, and palletized materials. Its black powder-coated finish pairs with full Blackwood decking, while the rated payload of 10,510 lb (4,767 kg) establishes a clear limit for cargo planning.
Layout & Design

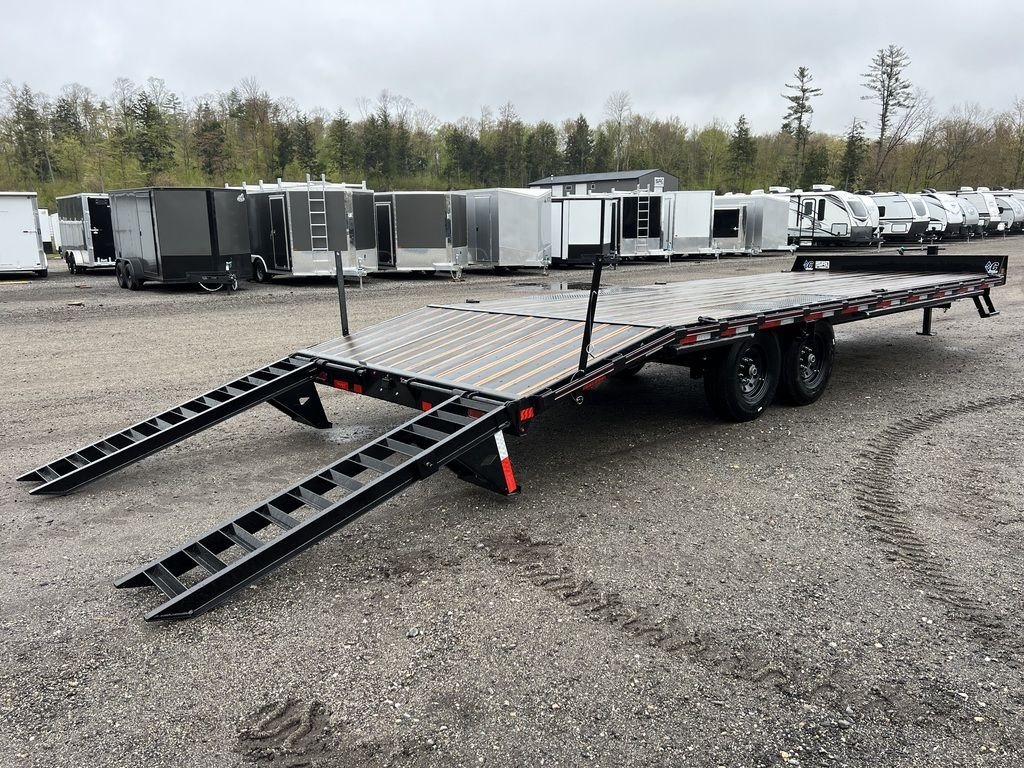

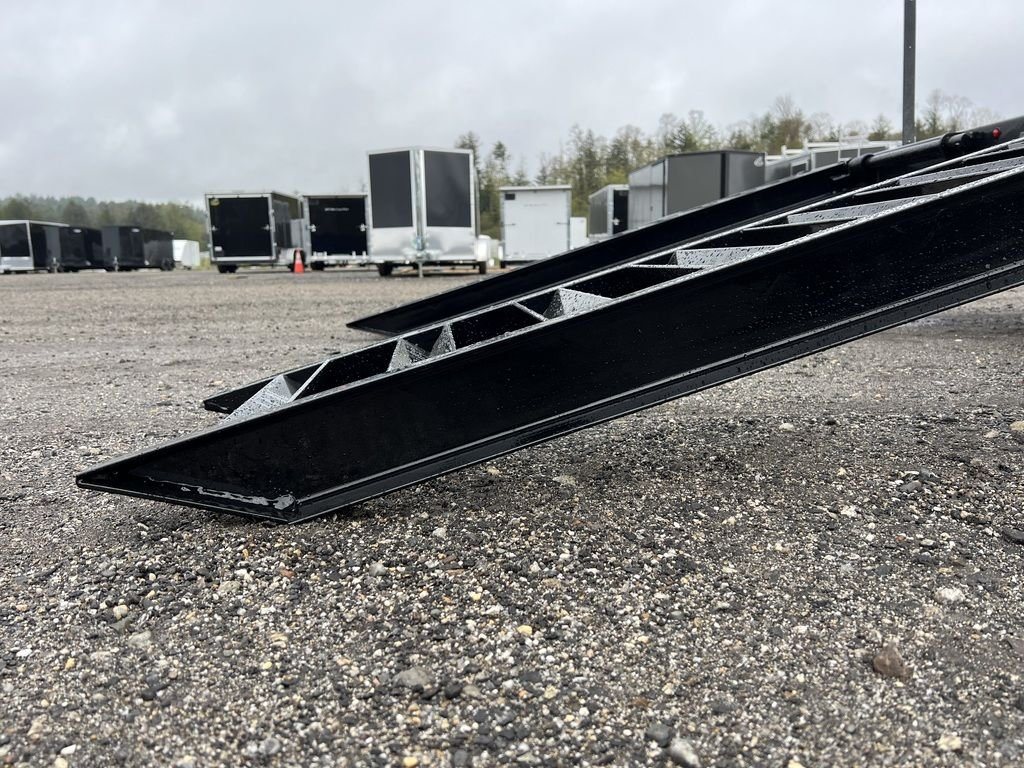

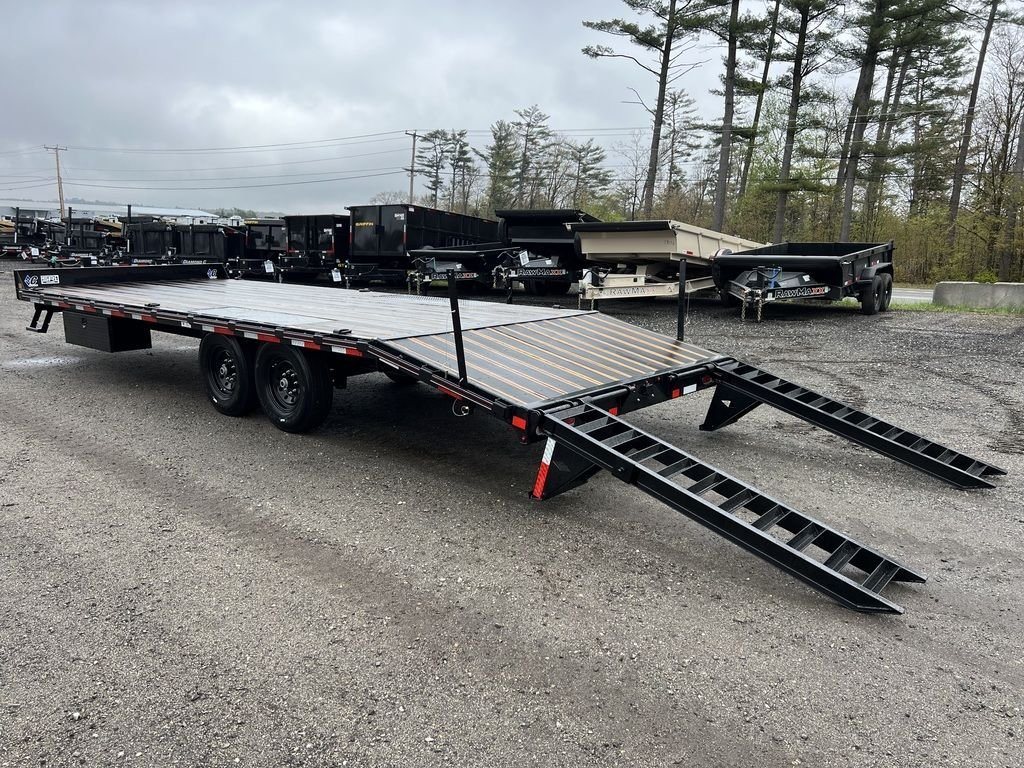

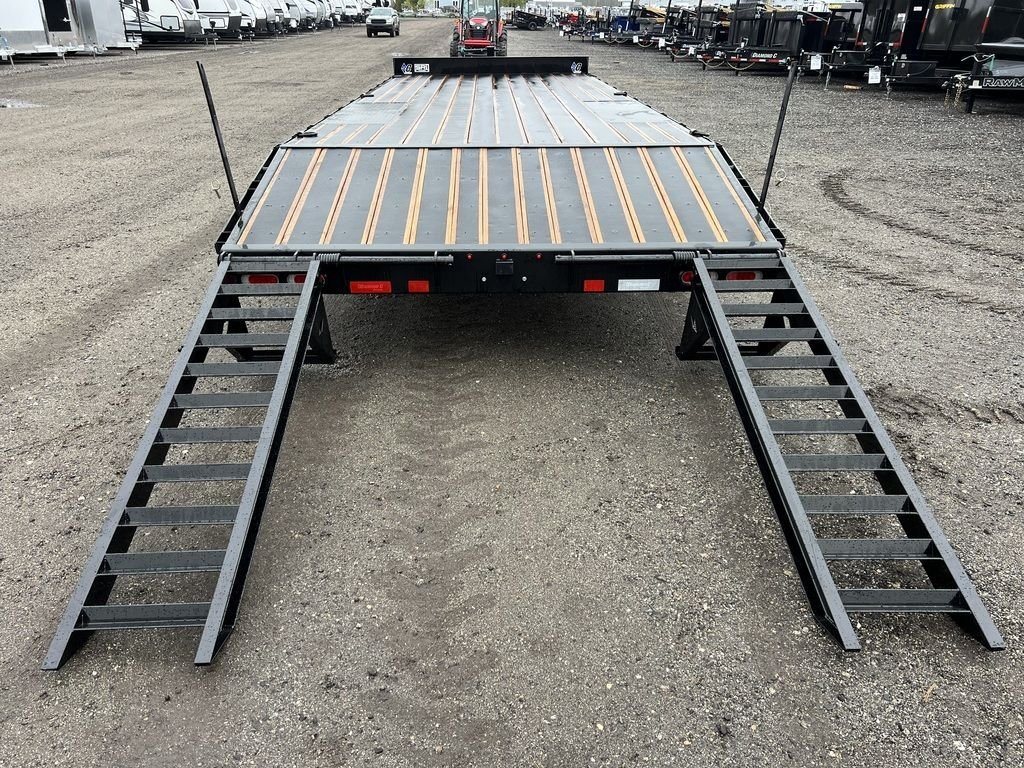

The deck measures 24 ft (7.32 m) long by 8.5 ft (2.59 m) wide. Positioned above the tires, it leaves the loading surface free of wheel-well intrusions. A 48 in (121.92 cm) dovetail works with 72 in (182.88 cm) flip-knee ramps, and retractable front steps provide deck access.
A raised deck also increases loaded height. Check equipment dimensions and route clearances before transporting taller machinery.
Materials & Build

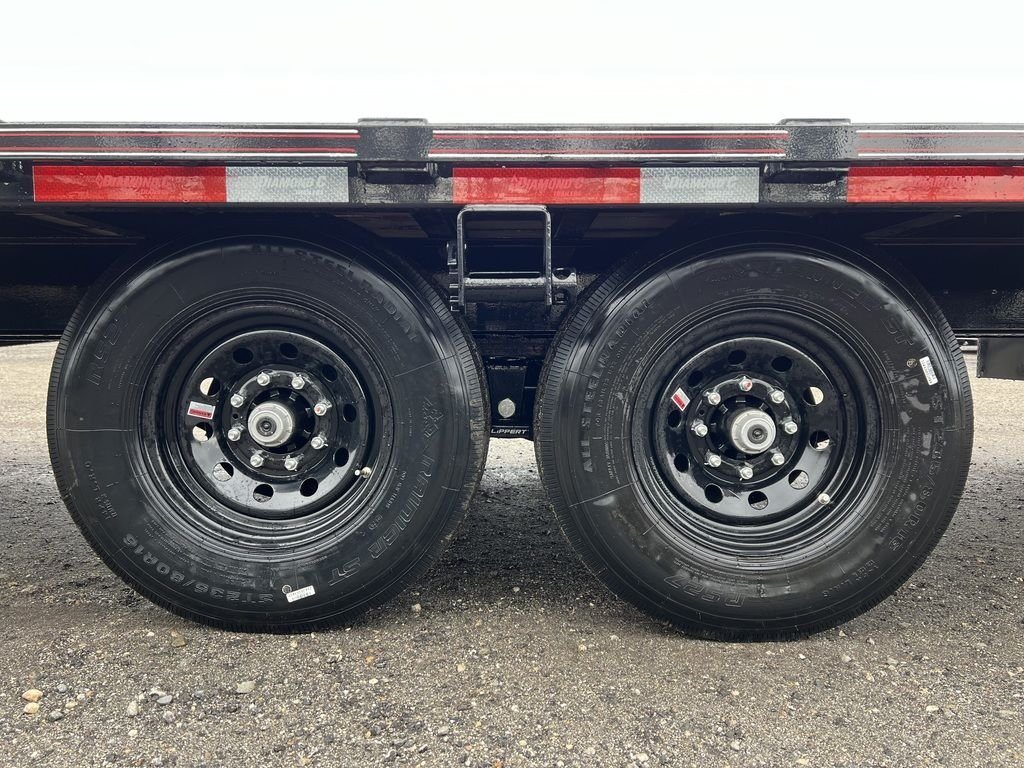

An I-beam frame and closely spaced I-beam crossmembers support the Blackwood deck. Two axles, each rated at 7,000 lb (3,175 kg), have electric drum brakes and six-leaf slipper spring suspension. The gross vehicle weight rating is 14,900 lb (6,759 kg); empty weight is 4,390 lb (1,991 kg).
What's Included

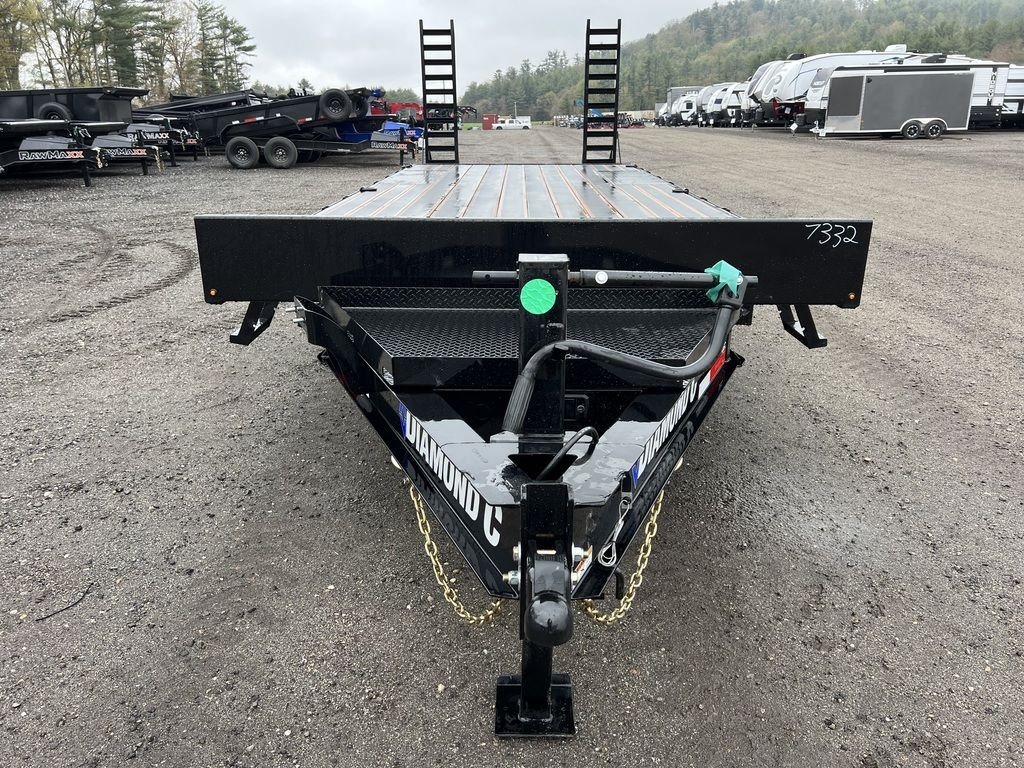

- Demco EZ-Latch coupler and drop-leg jack.

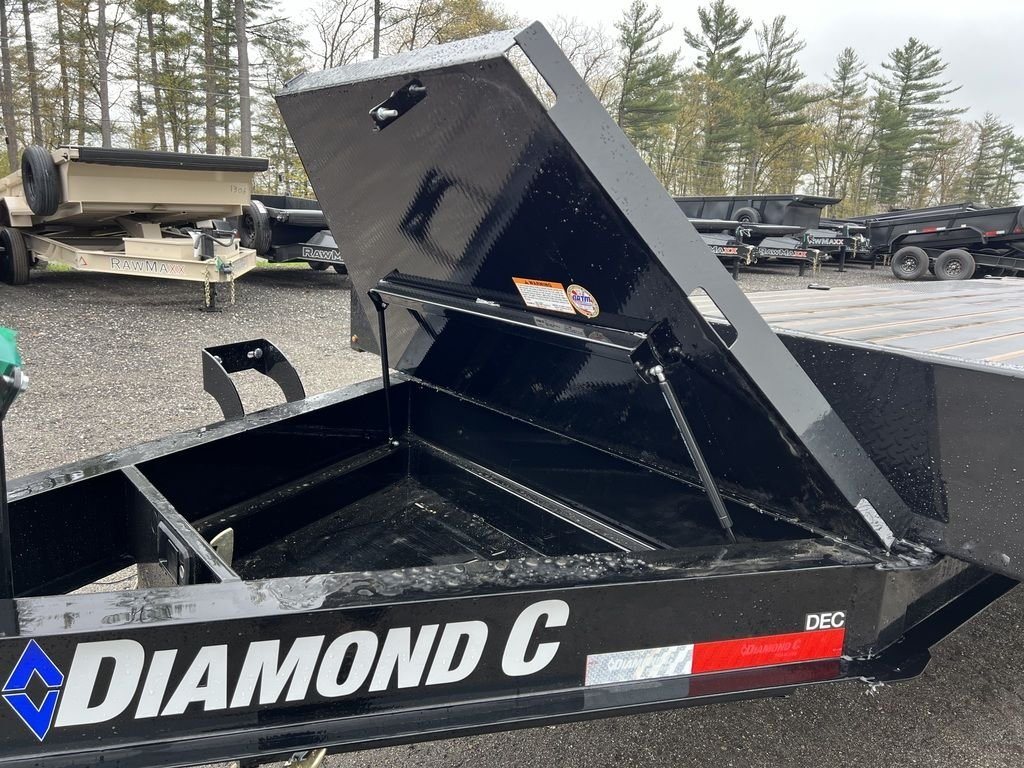

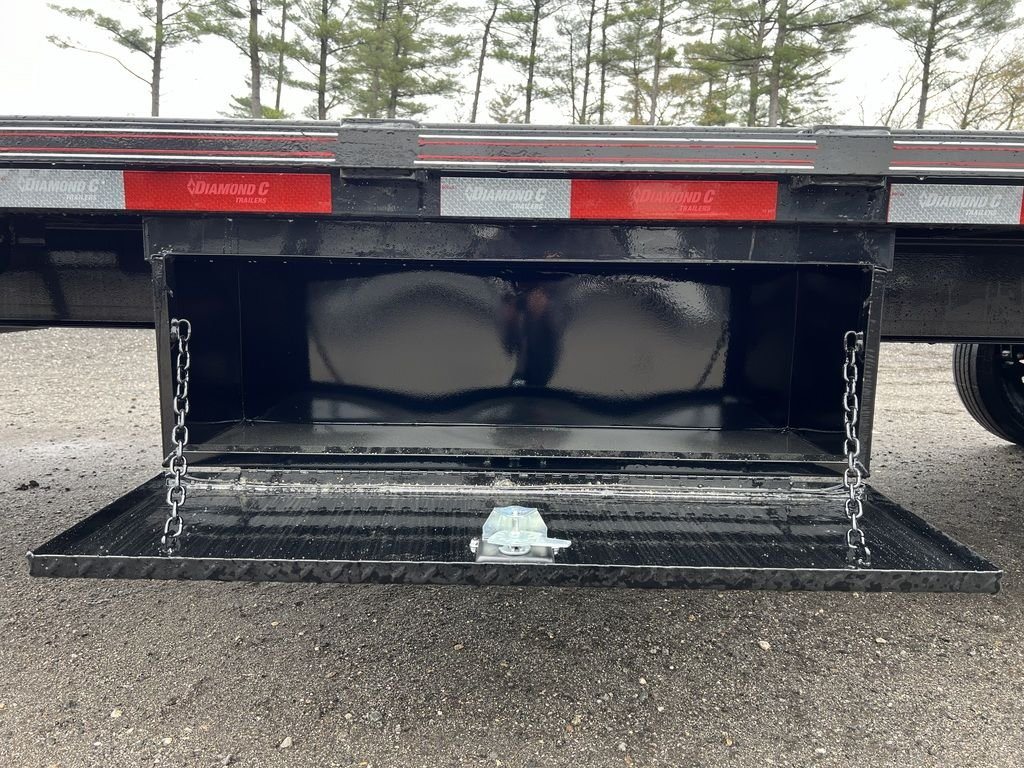

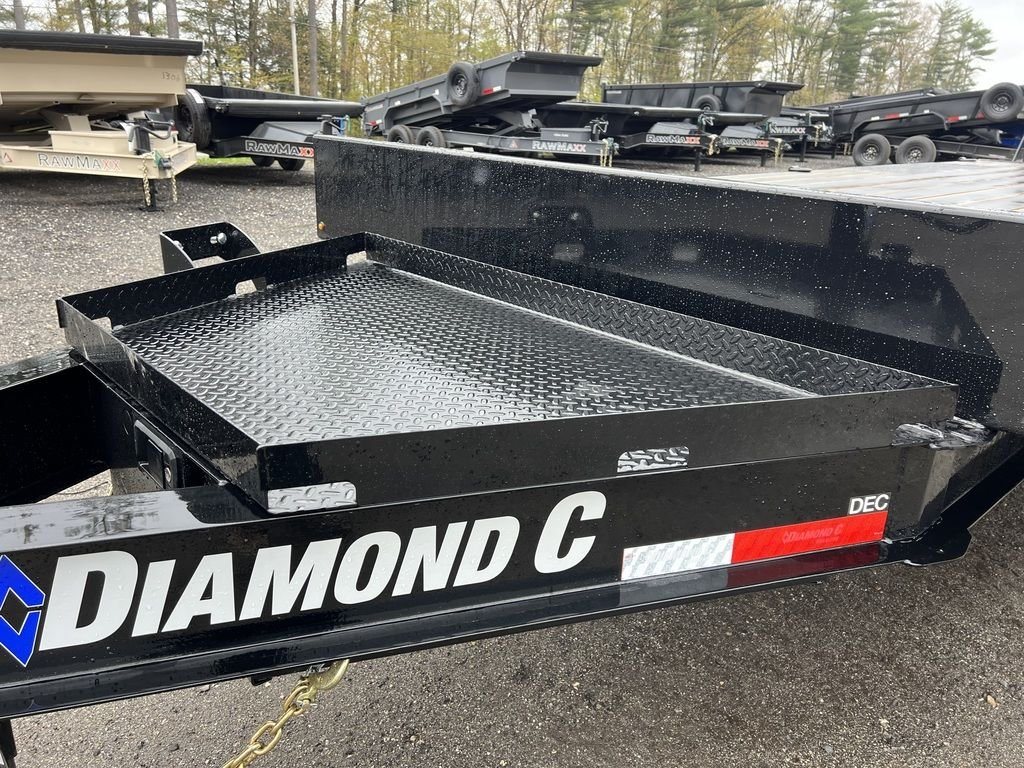

- Lidded V-tongue storage box and underslung toolbox.
- Rub rail, stake pockets, and pipe spools.
- Slide track with welded ratchet and six extra D-rings.
- Spare mount, formed front bumper, and LED lighting.
Ideal Uses
Use the open deck for tractors, skid steers, wide implements, or stacked pallets within the weight ratings. Confirm tow-vehicle capability, cargo securement, and loading clearances for each trip.
Delivery
Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
Why Buy from Lease Lane Containers
- Raleigh, NC team.
- Free standard delivery to the Lower 48.
- Sales tax included and paid by Lease Lane Containers.
- 30-day return window (Refund & Returns Policy).
Specifications
| Specification | Detail |
|---|---|
Overview | |
| Year | 2024 |
| Make | Diamond C |
| Model | DEC20724x102 |
| Type | Deckover equipment trailer |
Dimensions | |
| Deck length × width | 24 ft × 8.5 ft (7.32 m × 2.59 m) |
Running Gear | |
| Gross vehicle weight rating | 14,900 lb (6,759 kg) |
| Empty weight | 4,390 lb (1,991 kg) |
| Payload | 10,510 lb (4,767 kg) |
| Axles and brakes | Two axles rated at 7,000 lb (3,175 kg) each; electric drum brakes |
| Suspension | Six-leaf slipper springs |
| Coupler | Demco EZ-Latch, 2-5/16 in (5.87 cm); rated 21,000 lb (9,526 kg) |
Build | |
| Main frame | 8 in (20.32 cm) I-beam; 10 lb (4.54 kg) designation |
| Crossmembers | 3 in (7.62 cm) I-beams on 16 in (40.64 cm) centers |
| Dovetail and ramps | 48 in (121.92 cm) dovetail; 72 in (182.88 cm) flip-knee ramps |
| Decking and access | Full Blackwood decking; front retractable steps |
| Jack | Drop-leg jack rated 12,000 lb (5,443 kg) |
| Storage | V-tongue box with lid; underslung toolbox measuring 14 × 14 × 42 in (35.56 × 35.56 × 106.68 cm) |
| Lace rail | 5 × 2 in (12.70 × 5.08 cm) rectangular tube |
| Rub rail and securement | 3/8 in (0.95 cm) rub rail with stake pockets and pipe spools; slide track with welded ratchet; six extra D-rings |
| Additional hardware | Spare mount; 12 in (30.48 cm) formed front bumper |
| Finish | Black powder coat |
Electrical & Plumbing | |
| Lighting | LED lighting |
Condition | |
| Condition | New (2024) |
Delivery | |
| Delivery | Free standard delivery to the Lower 48 · about a week and a half after full payment |
