Lease Lane Containers LLC
0
Trailers

40 ft Tilt Bed Trailer – Twin-Cylinder Hydraulics

$16,000.00

+ Free Shipping

In stock

Load equipment and containers without separate ramps using a powered tilt deck. This 40 ft (12.19 m) trailer features twin-cylinder hydraulics, dual-wheel axles, and electric brakes. Free standard delivery to the Lower 48.

Get a Quote

Free Standard Crane Delivery Details

Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.

Delivery:
About a week and a half after full payment
Driver Call:
1 day before arrival
Offloading:
Crane offloading & placement included

Guaranteed Safe Checkout

  • WIRE TRANSFER
  • ACH
SKU:
LL-TRL-021
Categories:
Trailers, Car & Equipment Trailers
Brand:
Lease Lane Containers

Key Features

  • Hydraulic tilt – loads without separate ramp setup
  • Twin-cylinder lift – powered by a 12-volt hydraulic pump
  • Dual-wheel axles – electric brakes on both axles
  • Treated pine decking – tapered rear supports ground-level loading
  • Eight side winches – tension cargo along the deck
  • Adjustable coupler – accommodates different towing connection heights
  • Breakaway kit – includes charger and battery level indicator
  • Sealed wiring harness – supports the trailer lighting system

Overview

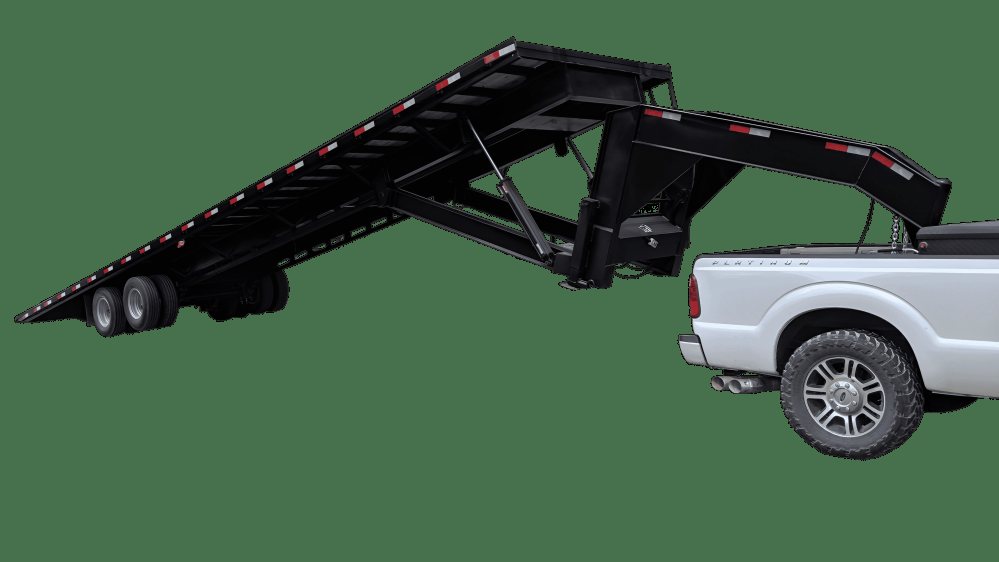

This 40 ft (12.19 m) hydraulic tilt bed trailer gives equipment and container operators a loading surface that reaches the ground without separate ramps. Drive suitable machinery onto the lowered bed or use a separately provided winch to pull a load into position. A 12-volt pump powers the twin-cylinder lift to return the bed to its transport position.

Layout & Design

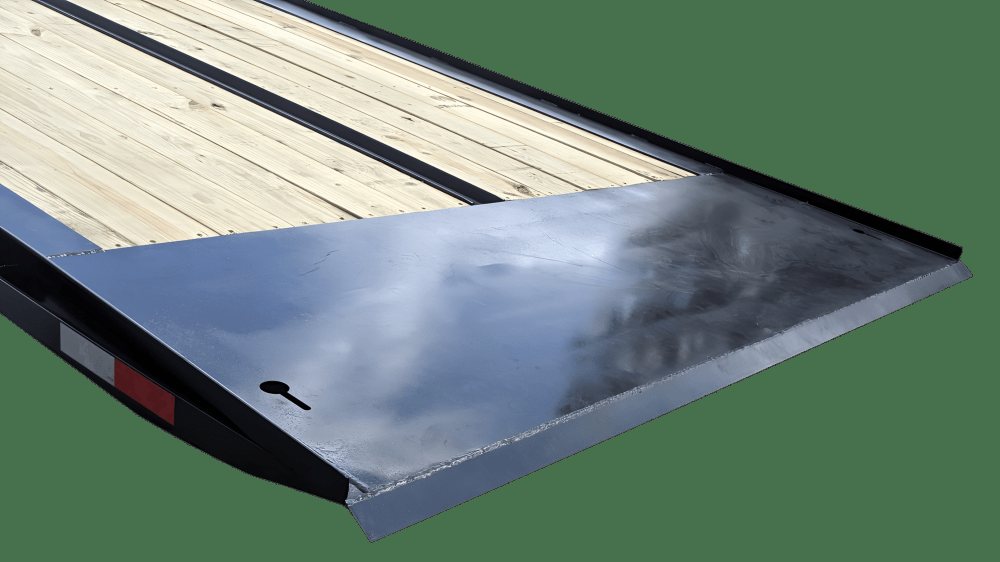

The rear of the treated pine deck is tapered for loading. Steel runners along the outer boards and angle guides at the floor edges help guide loads and protect the decking. Eight side-mounted winches provide cargo-tensioning points, while a winch plate provides a mounting location for a loading winch.

Materials & Build

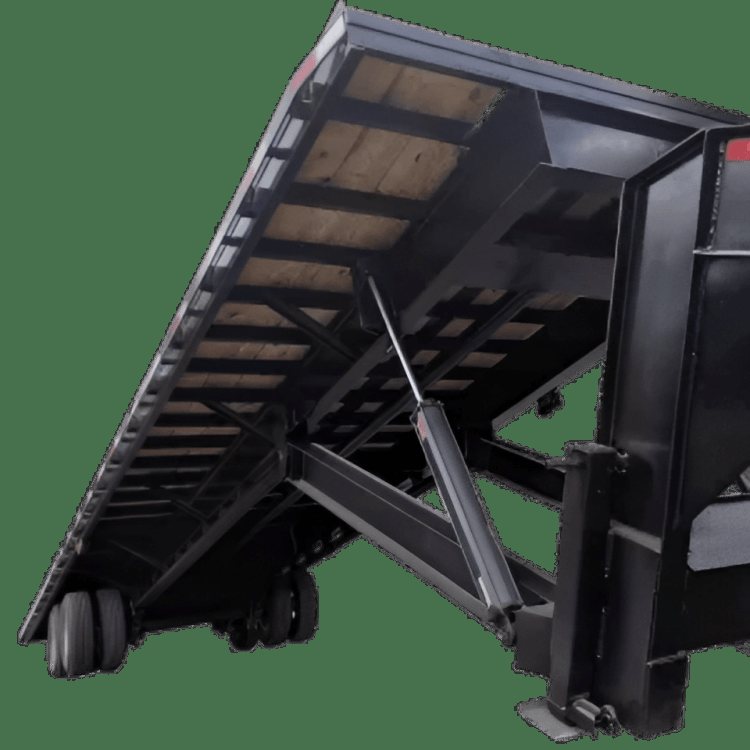

The frame and neck use I-beam construction with channel crossmembers. Two axles, each rated at 10,000 lb (4,536 kg), carry dual wheels and electric brakes. Silver mod wheels, enamel paint, and a sealed wiring harness complete the build.

Axle and coupler ratings are component specifications, not a payload rating. The trailer's gross vehicle weight rating and empty weight are confirmed in your written quote. Confirm tow-vehicle compatibility before planning a load.

What's Included

  • Hydraulic pump and twin-cylinder lift
  • Adjustable coupler and two support jacks
  • Treated pine floor, steel runners, and edge guides
  • Winch plate and eight side winches
  • Emergency breakaway kit with charger and battery level indicator
  • Safety chains, lighting, and reflective tape

Ideal Uses

Designed for equipment, machinery, and container transport, this tilt-bed configuration suits construction and agricultural hauling where eliminating separate ramp handling is useful. Verify load dimensions and operating weights for your application.

Delivery

Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.

Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.

Why Buy from Lease Lane Containers

  • Raleigh, NC team
  • Free standard delivery to the Lower 48
  • Sales tax included and paid by Lease Lane Containers
  • 30-day return window (Refund & Returns Policy)

Specifications

SpecificationDetail

Overview

TypeHydraulic tilt bed equipment and container trailer

Dimensions

Nominal length40 ft (12.19 m)

Build

Frame and neck12 in (30.48 cm) I-beam, designated 19#
Crossmembers3 in (7.62 cm) channel on 16 in (40.64 cm) centers
Outer runners6 in (15.24 cm) steel runners
Floor edge guides2 × 2 × 1/4 in (5.08 × 5.08 × 0.635 cm) angle
DeckTreated pine with tapered rear
Cargo hardwareWinch plate and eight side winches, each 4 in (10.16 cm)
CouplerAdjustable; rated 30,000 lb (13,608 kg)
JacksTwo jacks, each rated 12,000 lb (5,443 kg)
FinishEnamel paint

Running Gear

AxlesTwo axles, each rated 10,000 lb (4,536 kg), with dual wheels and electric brakes
Tires and wheels235/80/16 (E), 10-ply tires; silver mod wheels
Safety hardwareSafety chains and emergency breakaway kit with built-in charger and battery level indicator

Electrical & Plumbing

Hydraulics12-volt hydraulic pump with twin-cylinder lift
Lighting and wiringLED lights, DOT reflective tape, and sealed wiring harness

Delivery

DeliveryFree standard delivery to the Lower 48 · about a week and a half after full payment
