Trailers
40 ft Gooseneck Tilt Bed Trailer – Eight Winches
$12,800.00
+ Free Shipping
In stock
Move full-length containers with a hydraulic tilt bed and eight side-mounted winches. This 40 ft (12.19 m) gooseneck trailer has dual wheels and two braked axles. Free standard delivery to the Lower 48.
Free Standard Crane Delivery Details
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
- Delivery:
- About a week and a half after full payment
- Driver Call:
- 1 day before arrival
- Offloading:
- Crane offloading & placement included
Guaranteed Safe Checkout
- WIRE TRANSFER
- ACH
- SKU:
- LL-TRL-020
- Categories:
- Trailers, Car & Equipment Trailers
- Brand:
- Lease Lane Containers
Key Features
- Hydraulic tilt bed – twin-cylinder system raises and lowers the deck
- Eight side winches – support container positioning along the frame
- Adjustable gooseneck coupler – accommodates different hitch heights
- Dual-wheel axles – electric brakes on both axles
- Skid plate runners – protect the frame during container loading
- Torque tube – reinforces the deck against uneven loading
- Keyholed tail plate – provides rear anchoring points
- Sealed wiring harness – protects electrical connections
- Floorless layout – configured for container rails rather than loose freight
Overview

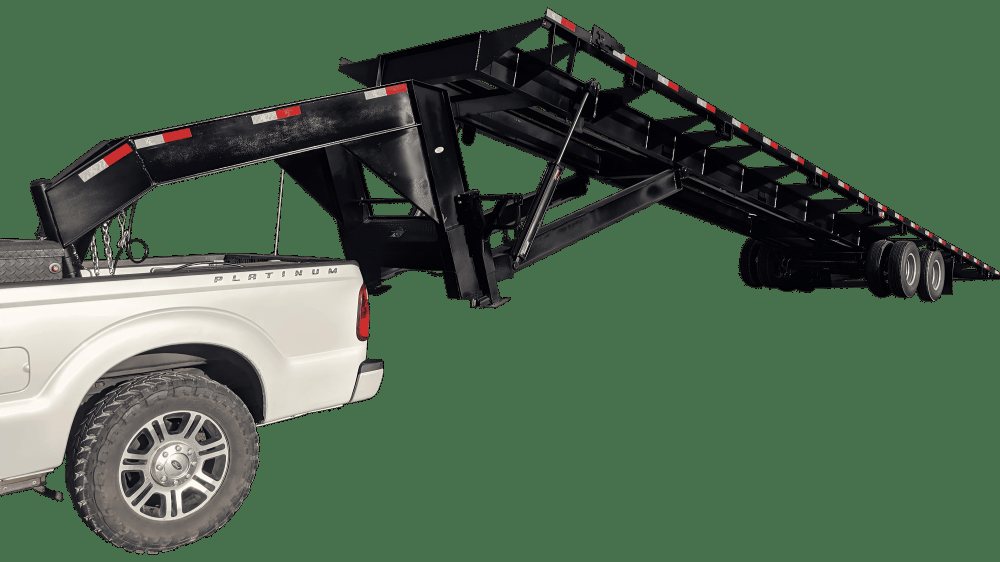

This 40 ft (12.19 m) gooseneck tilt bed trailer combines hydraulic deck movement with eight side-mounted winches for container handling. It is intended for operators moving shipping containers or repositioning storage containers between sites. Two axles with electric brakes and dual wheels form the running gear.
Layout & Design

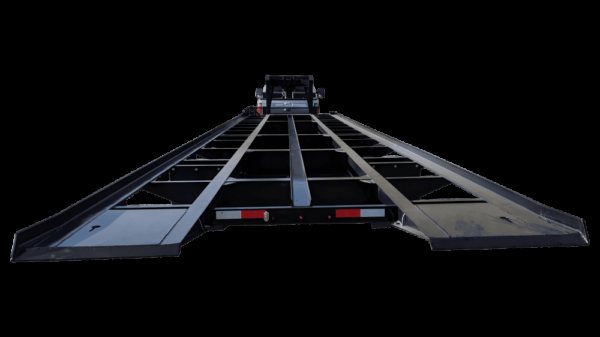

The floorless frame is arranged around container rails rather than loose cargo. A tapered rear leads to a 24 in (60.96 cm) tail plate with keyholes for anchoring. The adjustable gooseneck coupler allows hitch-height adjustment, while two support jacks serve the front of the trailer.
Materials & Build
The frame and neck use 12 in (30.48 cm) I-beams. Angle-iron skid runners protect the frame where containers slide, and a torque tube adds rigidity under uneven loading. An enamel finish covers the trailer.
What's Included
- Twin-cylinder hydraulic lift system with a 12-volt pump
- Eight side-mounted winches and a winch plate
- Two electric-brake axles with dual wheels
- Adjustable coupler, two jacks, and safety chains
- Emergency breakaway kit with an integrated charger
- Sealed wiring harness and light-emitting diode lights
No deck floor is included. Axle and coupler ratings are component ratings and do not establish trailer payload or gross vehicle weight rating.
Ideal Uses
Use this configuration for container relocation and storage-container handling. Before selecting a load, ensure the trailer's gross rating and empty weight are confirmed in your written quote, and check compatibility with your tow vehicle.
Delivery
Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
Why Buy from Lease Lane Containers
- Raleigh, NC team
- Free standard delivery to the Lower 48
- Sales tax included and paid by Lease Lane Containers
- 30-day return window (Refund & Returns Policy)
Specifications
| Specification | Detail |
|---|---|
Overview | |
| Type | Container-hauling tilt deck trailer |
| Hitch | Gooseneck |
Dimensions | |
| Listed length | 40 ft (12.19 m) |
Build | |
| Frame and neck | 12 in (30.48 cm) I-beams |
| Skid runners and winch plate | Angle iron, 3 × 5 × 3/8 in (7.62 × 12.70 × 0.9525 cm) |
| Deck and rear | No floor; tapered rear with a 24 in (60.96 cm) keyholed tail plate |
| Reinforcement and finish | Torque tube; enamel paint |
| Winches | Eight side-mounted 4 in (10.16 cm) winches |
Running Gear | |
| Axles | Two axles rated at 10,000 lb (4,536 kg) each; electric brakes and dual wheels |
| Coupler | Adjustable gooseneck coupler rated at 30,000 lb (13,608 kg) |
| Jacks | Two jacks rated at 12,000 lb (5,443 kg) each |
| Tires and wheels | 235/80/16 tires, load range E, 10-ply; silver mod wheels |
| Safety equipment | Safety chains; emergency breakaway kit with built-in charger |
Electrical & Plumbing | |
| Hydraulic lift | 12-volt pump with twin cylinders |
| Lighting and wiring | Light-emitting diode lights; sealed wiring harness; D.o.t. reflective tape |
Delivery | |
| Delivery | Free standard delivery to the Lower 48 · about a week and a half after full payment |
