Move long equipment loads with a gooseneck layout and automatic dovetail. This new 2024 Diamond C offers a 35 ft (10.67 m) deck and 16,520 lb (7,494 kg) payload. Free standard delivery to the Lower 48.
Free Standard Crane Delivery Details
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
Guaranteed Safe Checkout

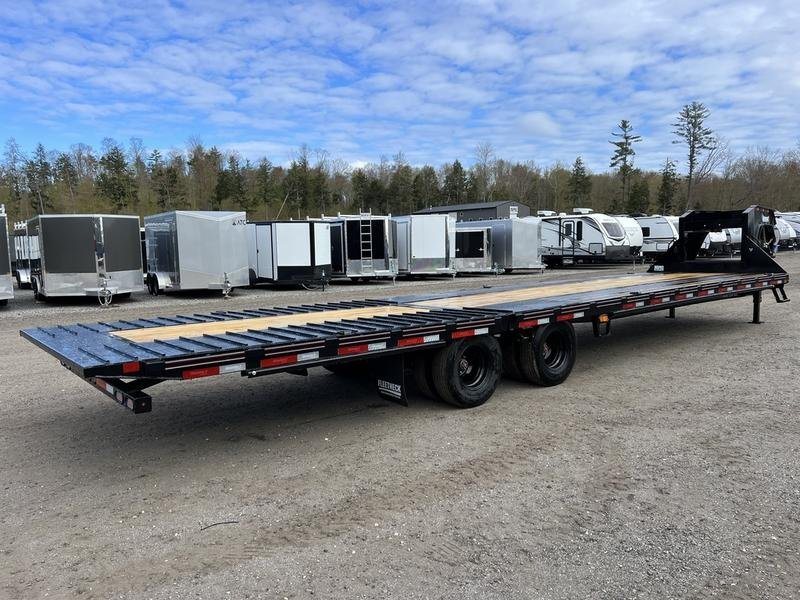

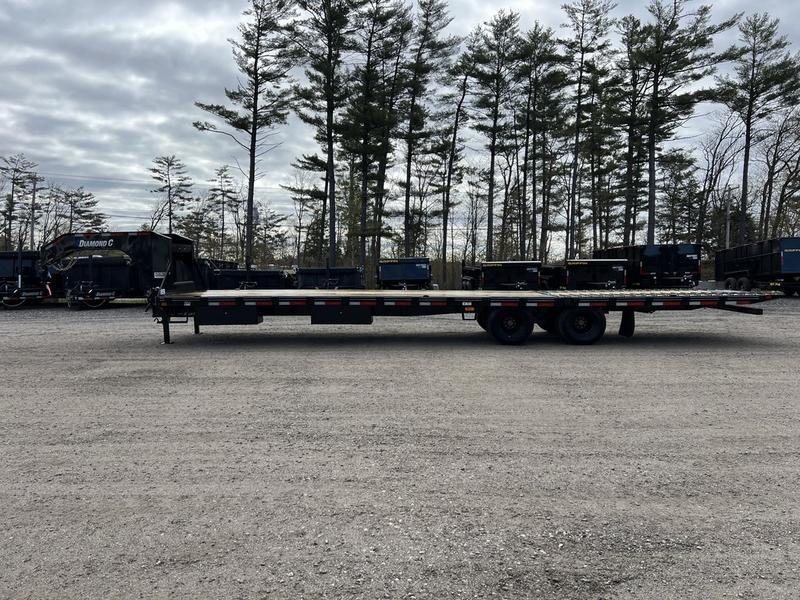

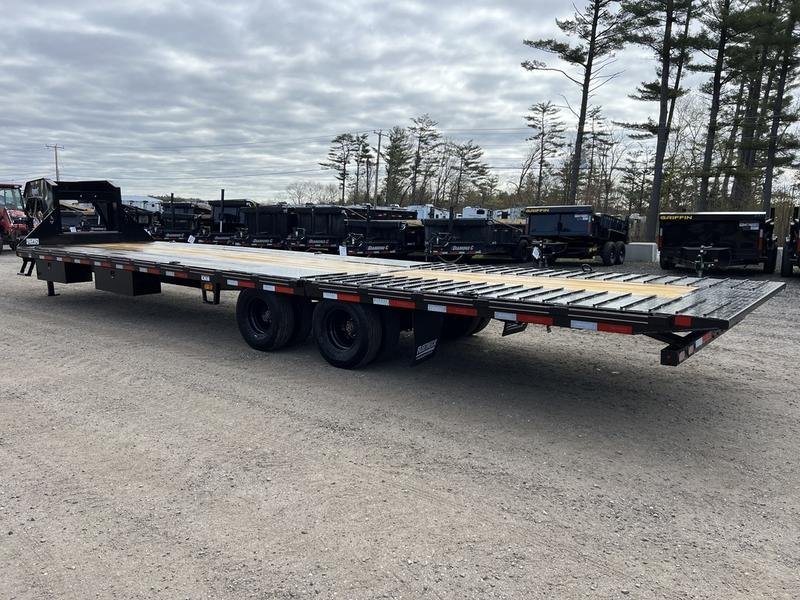

The new 2024 Diamond C FMAX210 HDT35x102 is a black gooseneck equipment trailer with a 35 ft (10.67 m) deck. Its gross vehicle weight rating is 25,000 lb (11,340 kg), with an empty weight of 8,480 lb (3,846 kg) and a payload of 16,520 lb (7,494 kg).

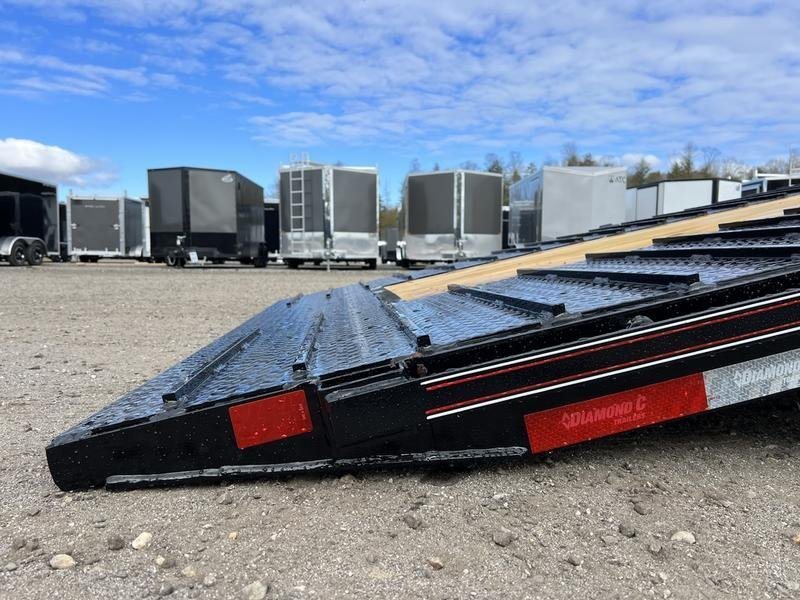

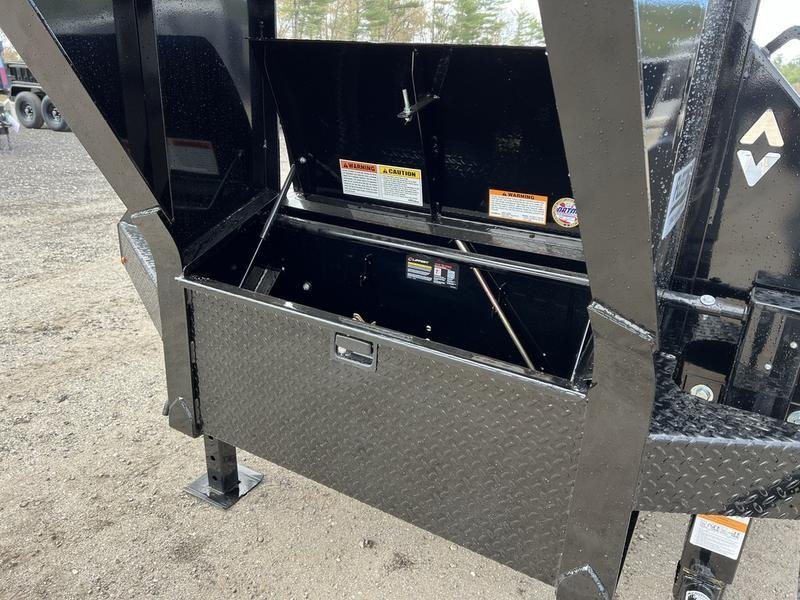

A 12 ft (3.66 m) fully automatic dovetail simplifies loading and unloading. Six D-rings, stake pockets, pipe spools, and a rub rail provide locations for load securement. An underslung storage box keeps accessories separate from the deck, while a winch tray provides a dedicated mounting location.

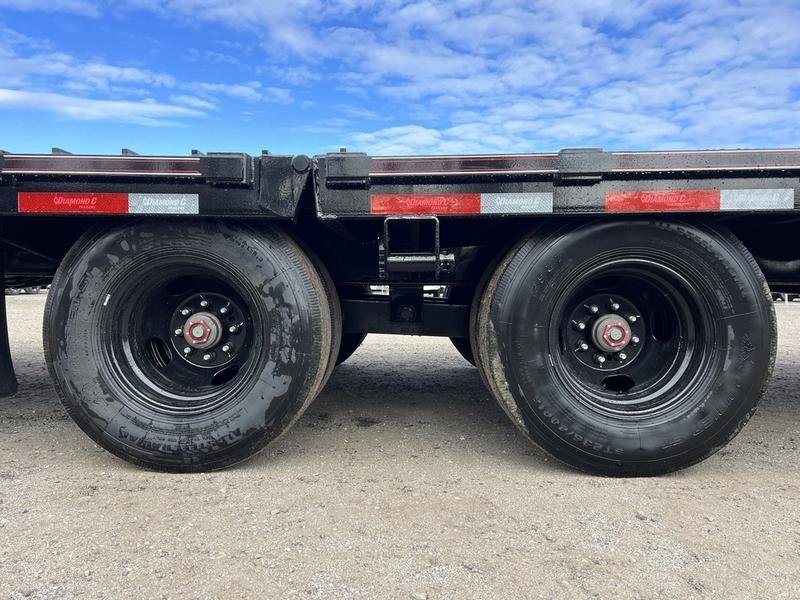

The frame uses a 16 in (40.64 cm) engineered beam with gusseted crossmembers. Base decking is treated material measuring 2 in (5.08 cm) thick. Two axles, each rated at 10,000 lb (4,536 kg), have electric drum brakes and five-leaf slipper spring suspension. Dual radial tires and black wheels complete the running gear.
Spare tire and winch inclusion is confirmed in your written quote.
This layout suits tractors, multiple equipment loads, and longer machinery within the payload and deck limits. Confirm your truck's towing capacity, bed-mounted hitch compatibility, and loaded weight distribution before use.
Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
| Specification | Detail |
|---|---|
Overview | |
| Year | 2024 |
| Make | Diamond C |
| Model | FMAX210 HDT35x102 |
| Type | Equipment trailer |
| Hitch | Gooseneck |
Dimensions | |
| Deck Length × Width | 35 ft × 8.5 ft (10.67 m × 2.59 m) |
Build | |
| Frame | 16 in (40.64 cm) engineered beam |
| Crossmembers | 3 in (7.62 cm) I-beams on 16 in (40.64 cm) centers with formed gussets |

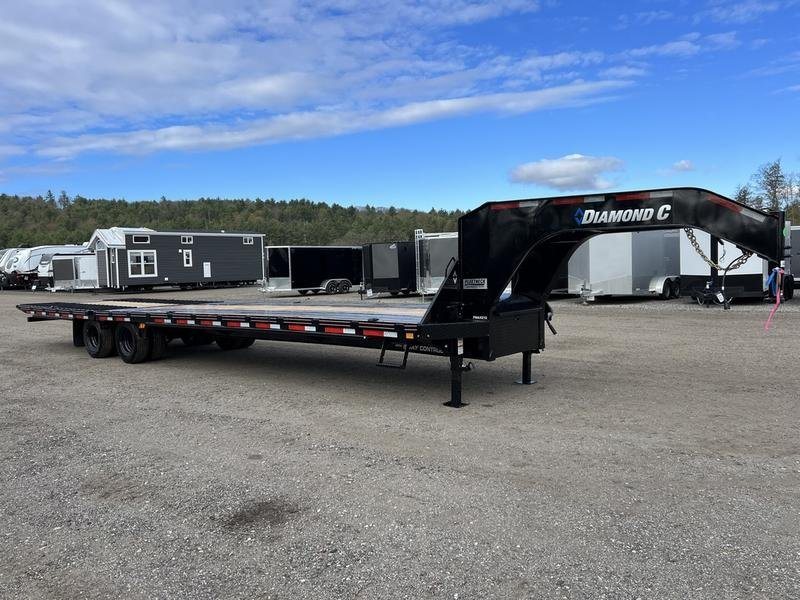

| Neck | 12 in (30.48 cm) engineered neck with sway control pipe |

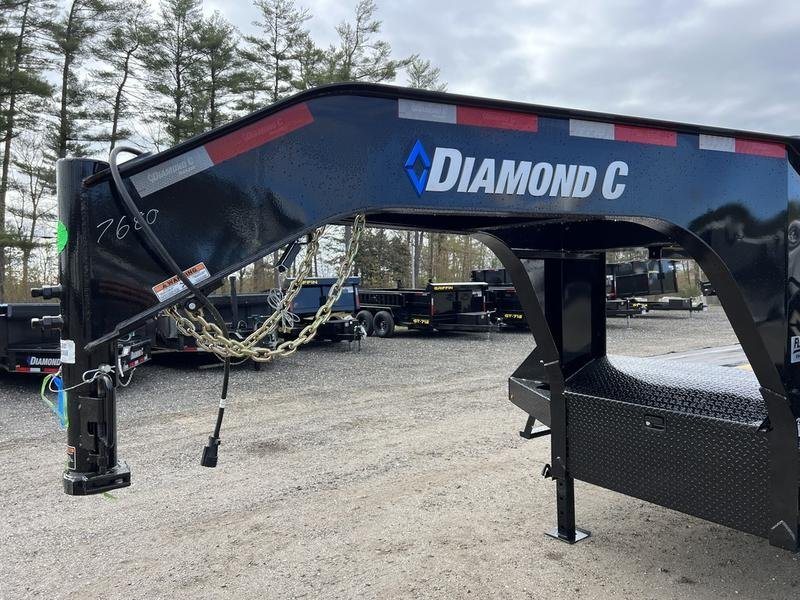

| Coupler | Bulldog BX1 rated at 25,000 lb (11,340 kg); 2-5/16 in (5.87 cm) ball |

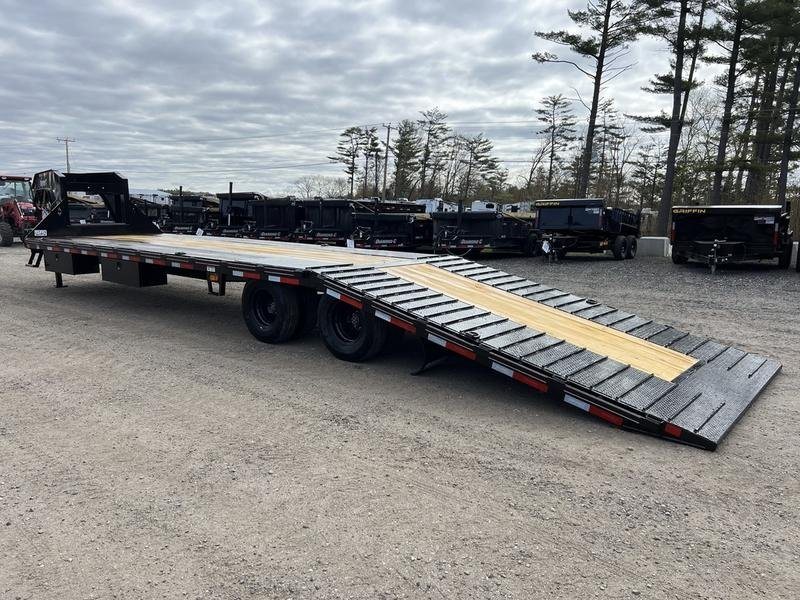

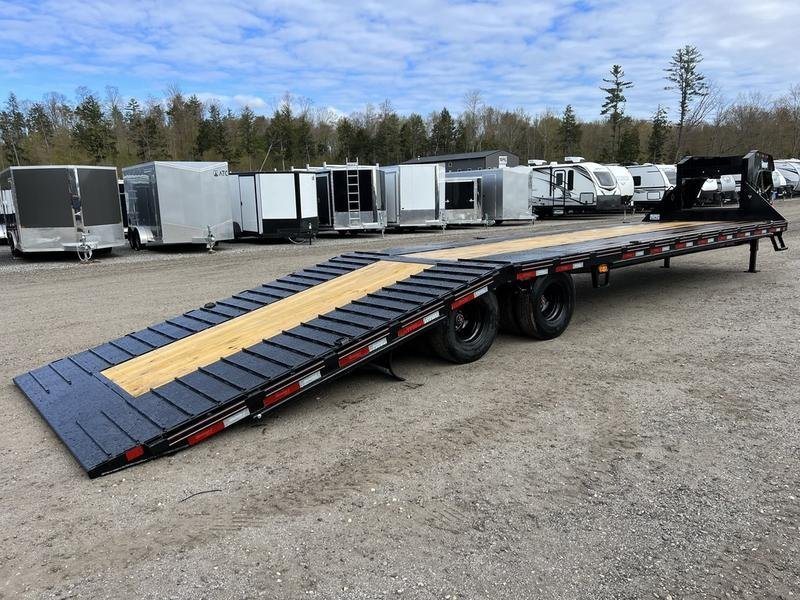

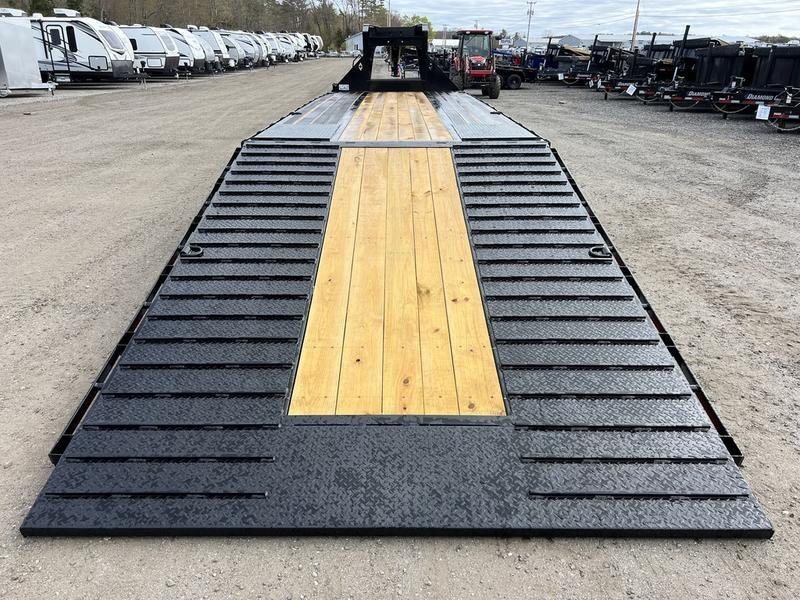

| Dovetail | 12 ft (3.66 m), fully automatic, with 5-amp charger |
| Jacks | Two drop-leg jacks, each rated at 12,000 lb (5,443 kg) |
| Base Decking | 2 in (5.08 cm) treated decking |
| Rub Rail | 2 in × 3/8 in (5.08 cm × 0.95 cm), with stake pockets and pipe spools |

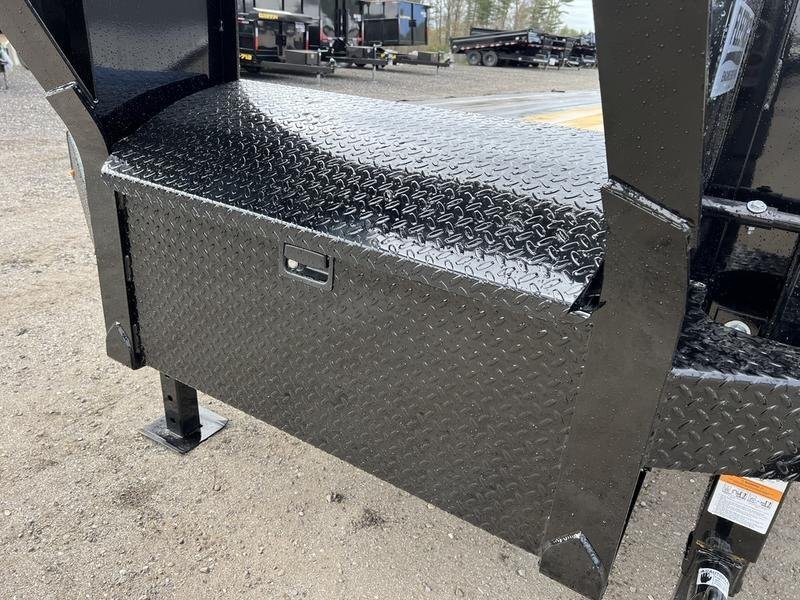

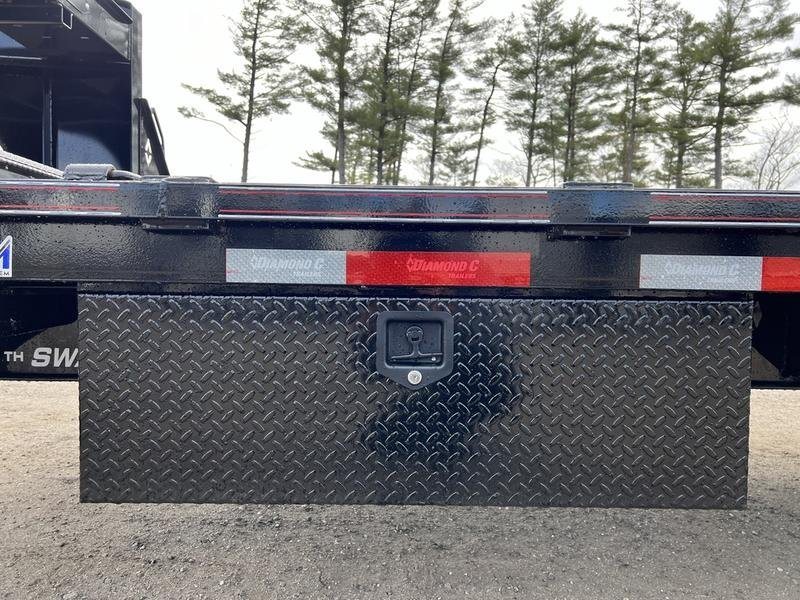

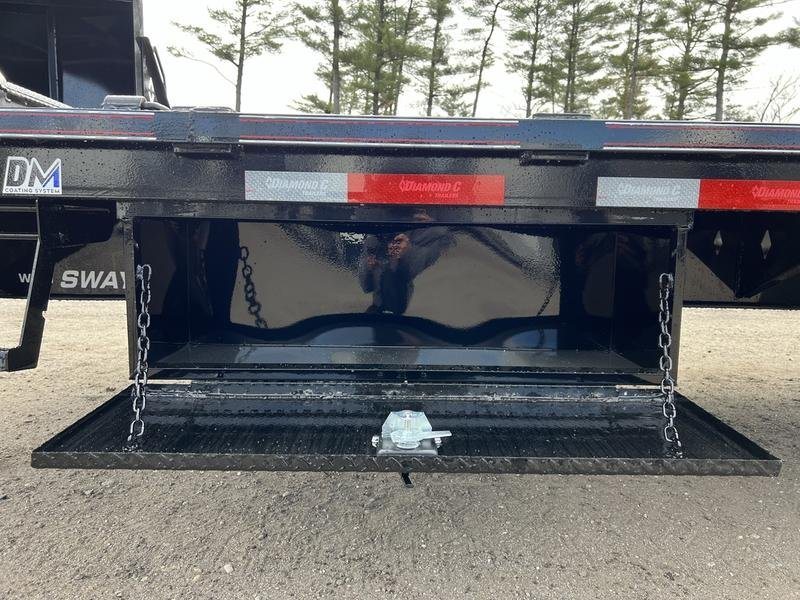

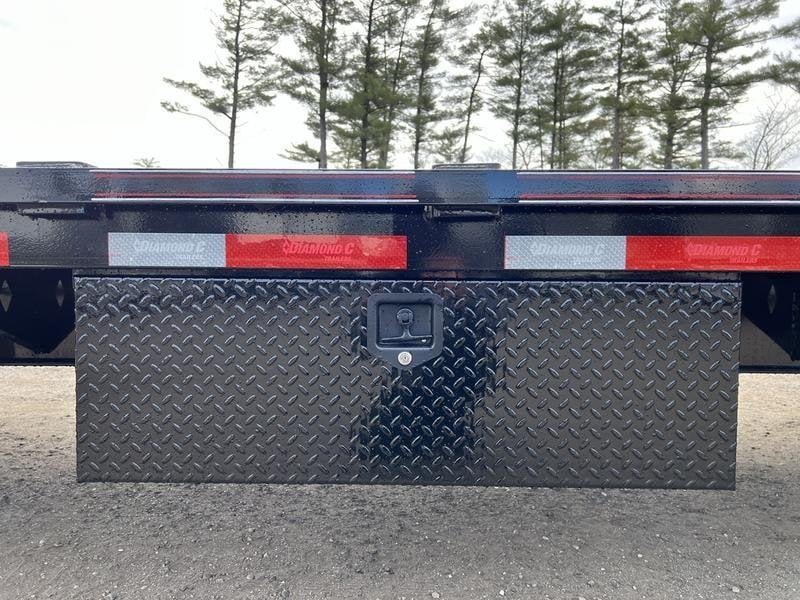

| Storage Box | Underslung; 14 in × 14 in × 42 in (35.56 cm × 35.56 cm × 106.68 cm) |
| Tie-Down Rings | Six D-rings measuring 5/8 in (1.59 cm) |
| Mounting Provisions | Winch mounting tray and spare mount |
| Exterior Color | Black |
Running Gear | |

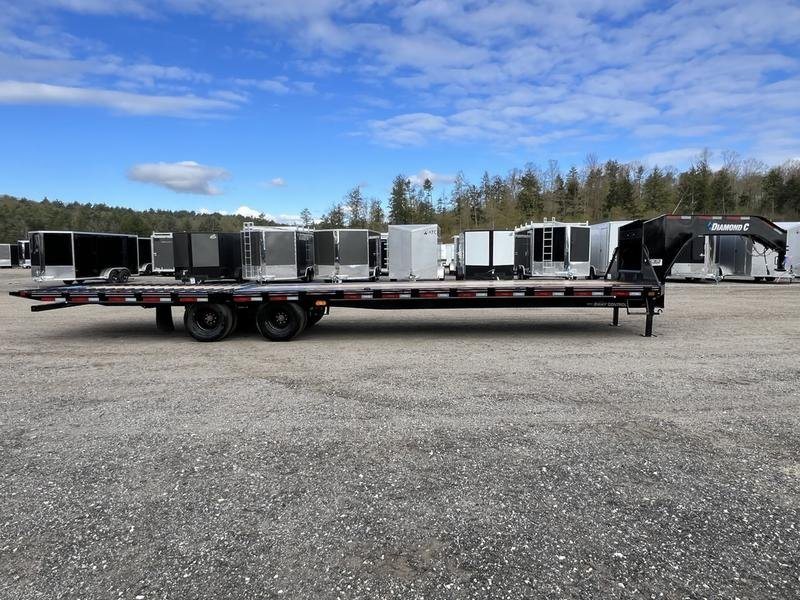

| Axles and Brakes | Two axles rated at 10,000 lb (4,536 kg) each, with electric drum brakes |
| Suspension | Five-leaf slipper springs |
| Gross Vehicle Weight Rating | 25,000 lb (11,340 kg) |
| Empty Weight | 8,480 lb (3,846 kg) |
| Payload | 16,520 lb (7,494 kg) |
| Tires and Wheels | ST235/80R16 dual 14-ply radial tires; 8-hole black wheels |
Electrical & Plumbing | |

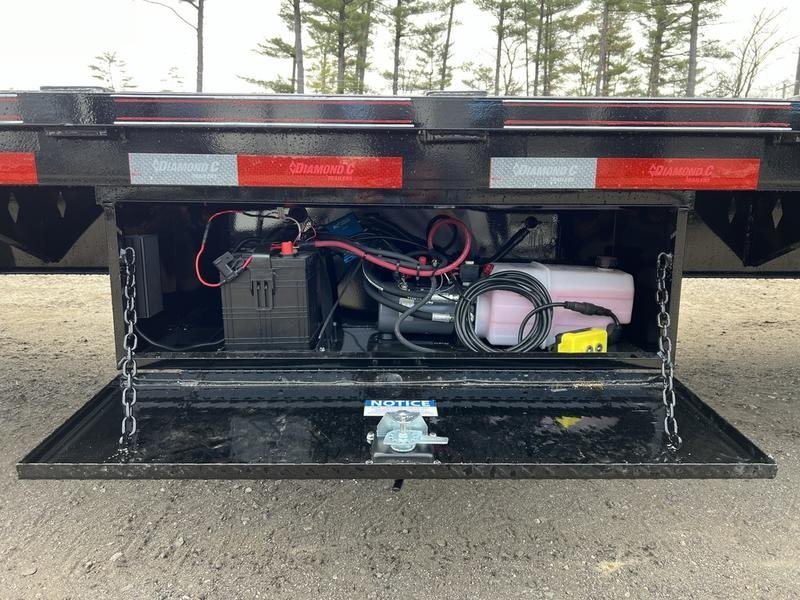

| Battery and Charging | Group 27 battery; 7-watt Solarpulse charging system |

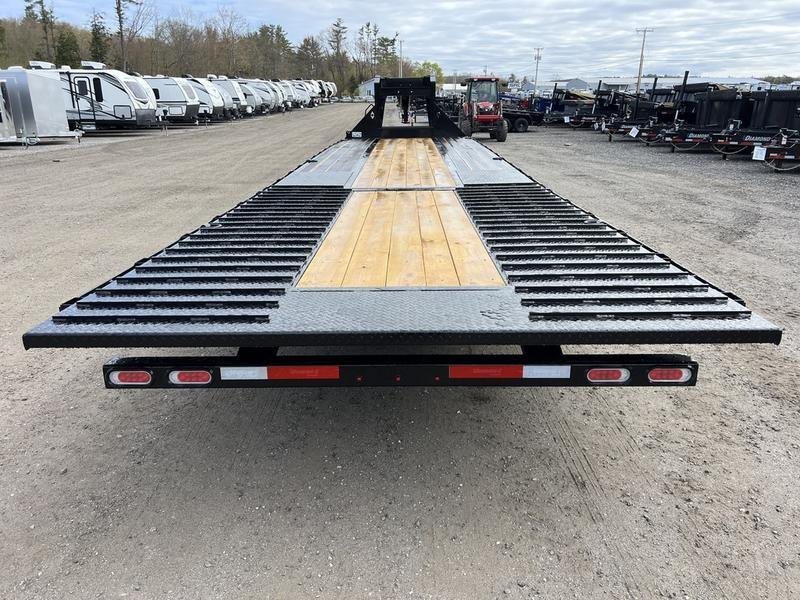

| Lighting | Light-emitting diode lights throughout |
Condition | |
| Condition | New (2024) |
Delivery | |
| Delivery | Free standard delivery to the Lower 48 · about a week and a half after full payment |
