2024 RawMaxx 16 ft Dump Trailer – Tarp Kit

$8,400.00

+ Free Shipping

In stock

Handle bulk materials and equipment loading with a 2024 RawMaxx dump trailer featuring a 14,000 lb (6,350 kg) gross vehicle weight rating, tall sides, slide-out ramps, and a manual tarp kit. Free standard delivery to the Lower 48.

Get a Quote

Free Standard Crane Delivery Details

Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.

Delivery:
About a week and a half after full payment
Driver Call:
1 day before arrival
Offloading:
Crane offloading & placement included

Guaranteed Safe Checkout

  • WIRE TRANSFER
  • ACH
SKU:
LL-TRL-076
Categories:
Trailers, Dump Trailers
Brand:
Lease Lane Containers

Key Features

  • Manual tarp kit – covers the load for transport
  • 44 in (111.76 cm) sides – contain bulky materials

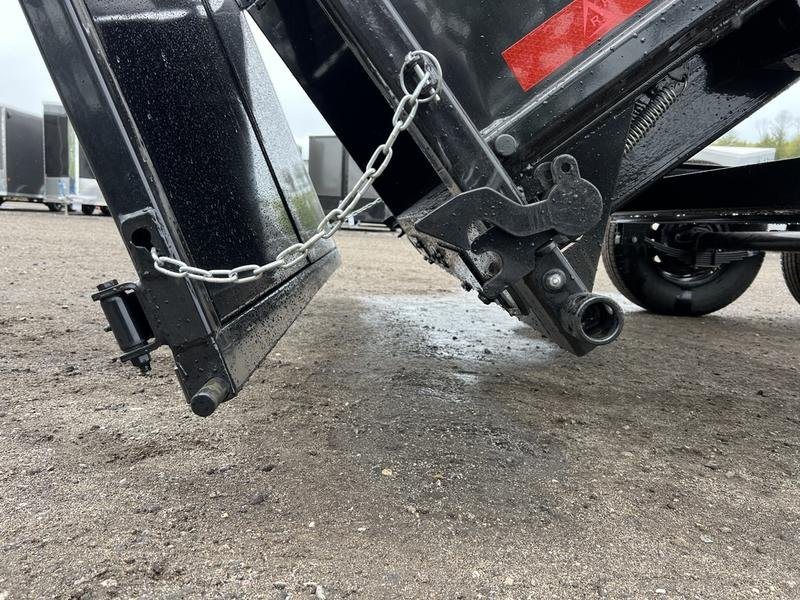

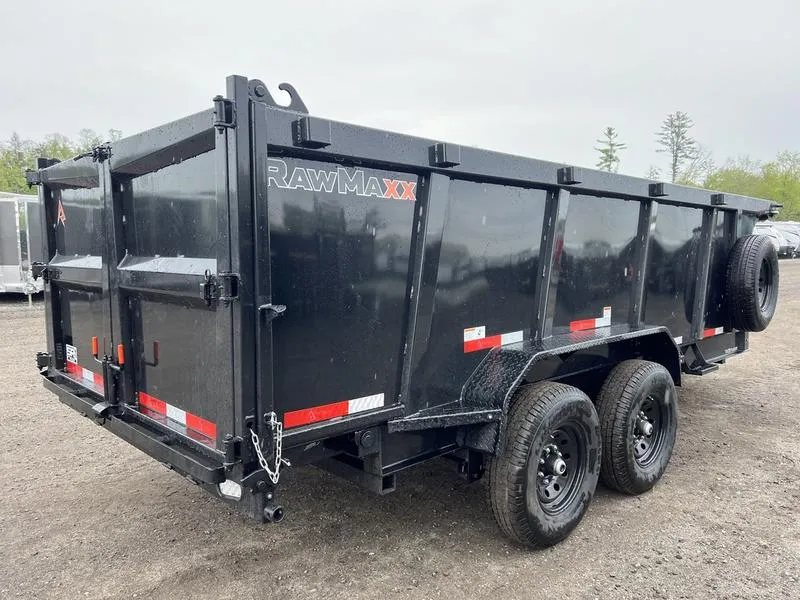

  • Rear barn doors – open for bulk unloading
  • Integrated spreader doors – support controlled material distribution
  • 6 ft (1.83 m) ramps – slide out for equipment loading

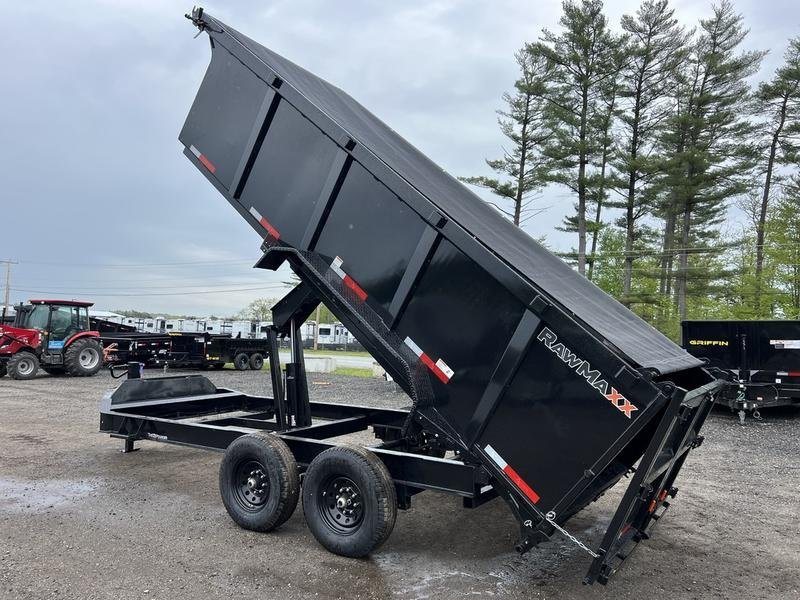

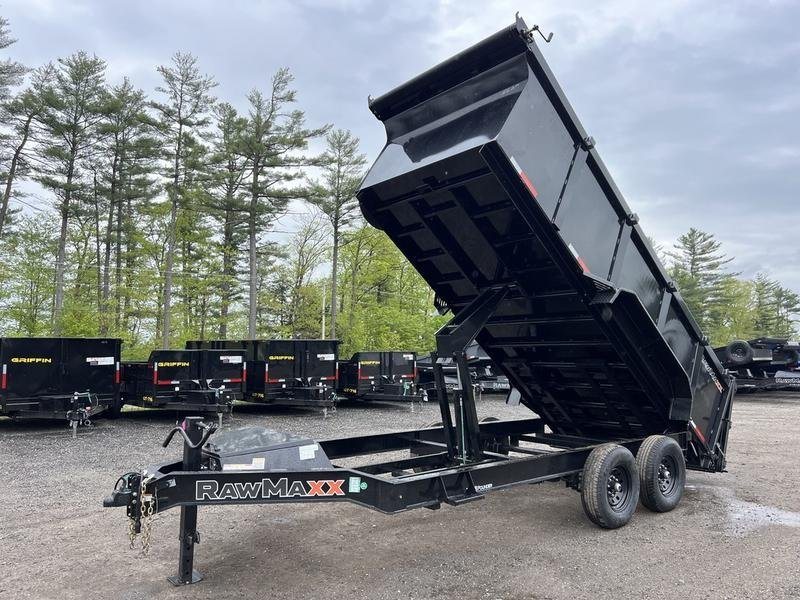

  • Scissor lift – raises the dump bed hydraulically
  • Two electric-brake spring axles – provide braking at both axles
  • Three-stage powder coating – adds a protective exterior finish

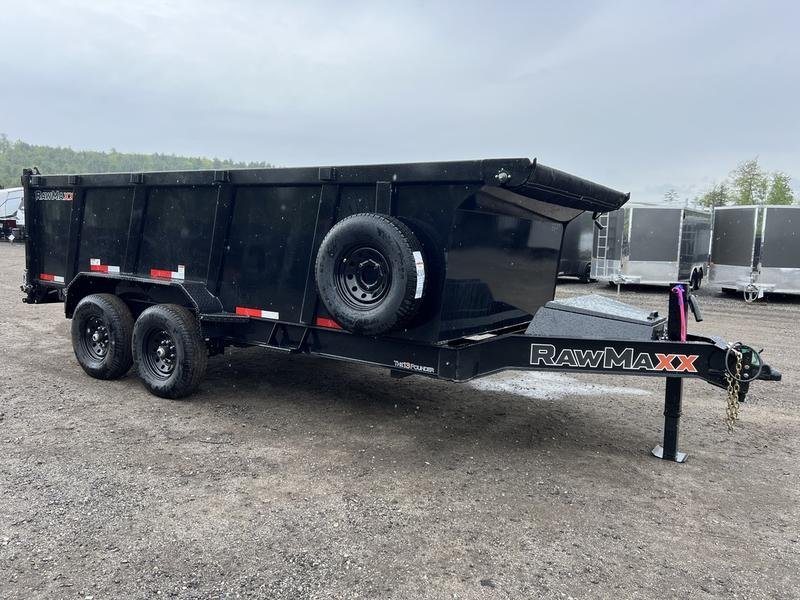

  • Spare tire – included for replacement needs

Overview

The 2024 RawMaxx LPX-16-BP14K combines bulk-material hauling, dump-bed unloading, and equipment-loading features in one trailer. This new, black unit has a gross vehicle weight rating of 14,000 lb (6,350 kg) and a payload of 8,104 lb (3,676 kg). Its manual tarp kit provides a practical way to cover transported material.

Layout & Design

The deck measures 7 ft (2.13 m) wide by 16 ft (4.88 m) long. This configuration includes taller 44 in (111.76 cm) sides for containing bulky loads. Rear barn doors incorporate spreader doors, giving operators different discharge arrangements for unloading or distributing aggregate.

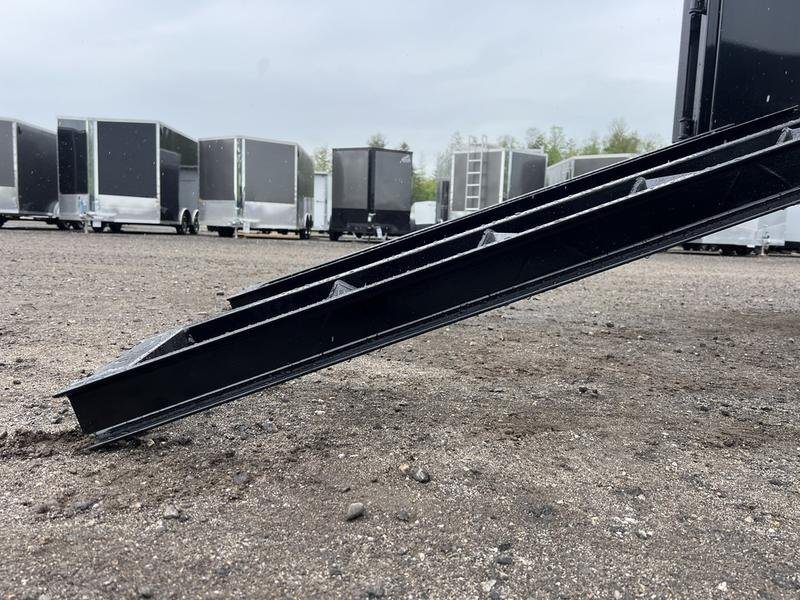

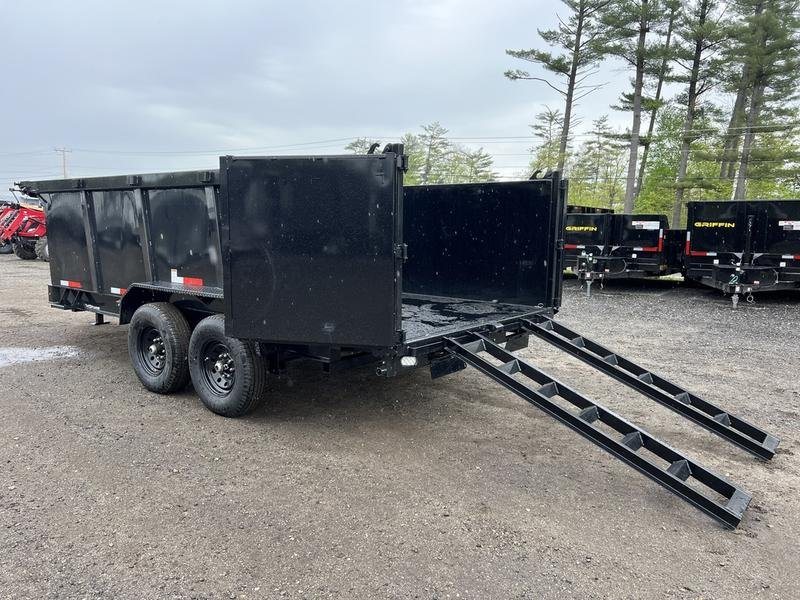

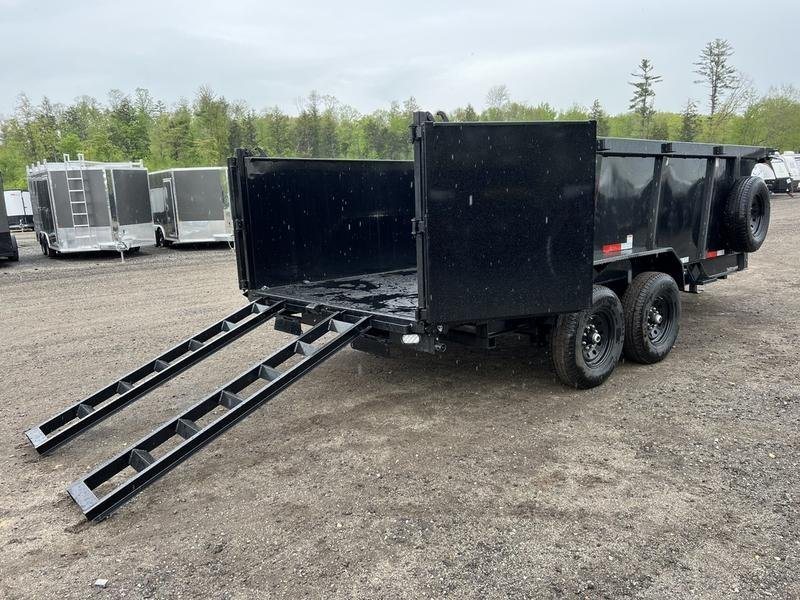

Slide-out ramps measuring 6 ft (1.83 m) support equipment loading. Confirm equipment weight and ramp capacity before loading a machine.

Materials & Build

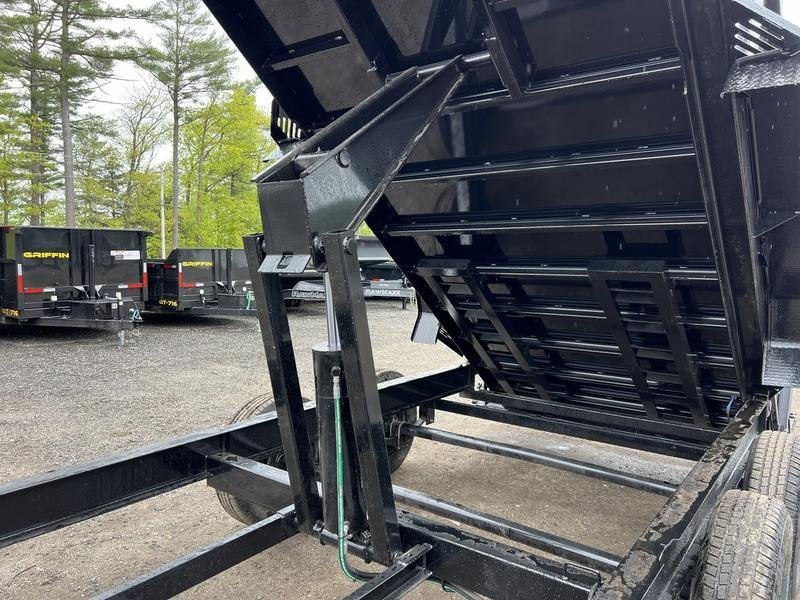

An 8 in (20.32 cm) I-beam frame and tongue pair with crossmembers spaced on 16 in (40.64 cm) centers. A three-stage powder-coated finish covers the exterior. The dump mechanism uses a scissor lift with a 620 cylinder.

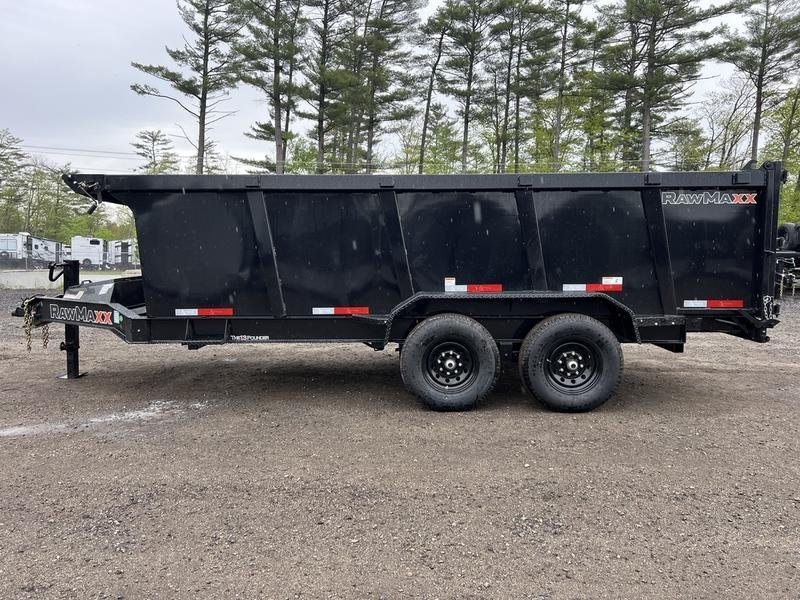

Two spring axles with electric brakes support the running gear. Black wheels and a matching black exterior give the trailer a consistent appearance.

What's Included

  • Manual tarp kit and slide-out ramps
  • Rear barn doors with integrated spreader doors
  • Spare tire and electric-brake spring axles
  • Adjustable ball coupler, safety chains, and drop-leg jack
  • Light-emitting diode lighting

Ideal Uses

A practical configuration for contractors, landscapers, excavators, and property owners handling dirt, gravel, mulch, or demolition debris. Match each load to the payload and verify tow-vehicle capacity before use.

Delivery

Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.

Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.

Why Buy from Lease Lane Containers

  • Raleigh, NC team
  • Free standard delivery to the Lower 48
  • Sales tax included and paid by Lease Lane Containers
  • 30-day return window (Refund & Returns Policy)

Specifications

SpecificationDetail

Overview

Year2024
MakeRawMaxx
ModelLPX-16-BP14K
TypeDump trailer

Dimensions

Deck Length × Width16 ft (4.88 m) × 7 ft (2.13 m)
Side Height44 in (111.76 cm)

Build

Frame and Tongue8 in (20.32 cm) I-beam
Crossmember Spacing16 in (40.64 cm) centers
Finish and ColorThree-stage powder coating; black
Dump LiftScissor lift with 620 cylinder
Rear DoorsBarn doors with integrated spreader doors
Ramps6 ft (1.83 m) slide-out ramps
Load CoverManual tarp kit

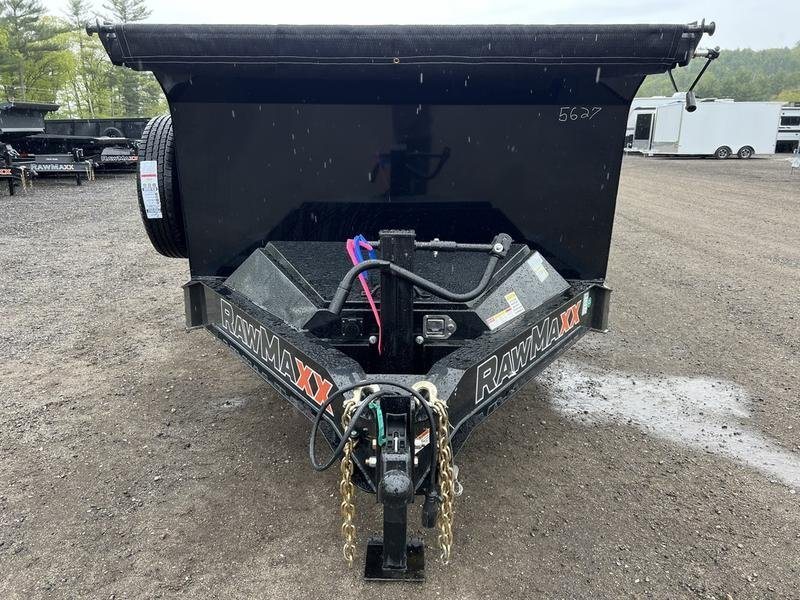

CouplerAdjustable 2-5/16 in (5.87 cm) ball coupler with safety chains
Jack12,000 lb (5,443 kg) drop-leg jack

Running Gear

Gross Vehicle Weight Rating14,000 lb (6,350 kg)
Empty Weight5,896 lb (2,674 kg)
Payload8,104 lb (3,676 kg)

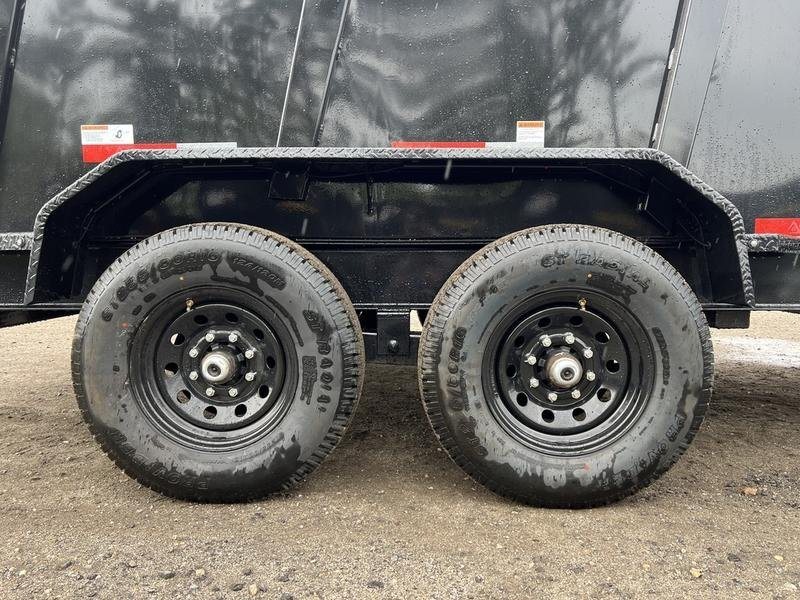

AxlesTwo spring axles with electric brakes

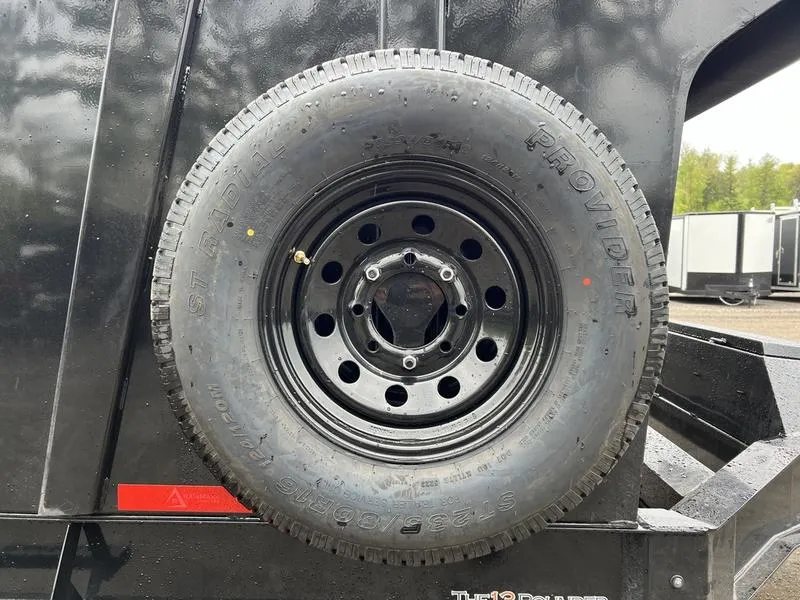

Wheels and Spare16 in (40.64 cm) black mod wheels; spare tire included

Electrical & Plumbing

LightingLight-emitting diode lights; DOT-approved

Condition

ConditionNew (2024)

Delivery

DeliveryFree standard delivery to the Lower 48 · about a week and a half after full payment
