2024 Griffin Trailers 16 ft Dump Trailer – Telescopic
$5,600.00
+ Free Shipping
In stock
Handle bulk material and equipment with a three-stage telescopic dump system, included ramps, and a 14,000 lb (6,350 kg) gross vehicle weight rating. Free standard delivery to the Lower 48.
Free Standard Crane Delivery Details
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
- Delivery:
- About a week and a half after full payment
- Driver Call:
- 1 day before arrival
- Offloading:
- Crane offloading & placement included
Guaranteed Safe Checkout
- WIRE TRANSFER
- ACH
- SKU:
- LL-TRL-073
- Categories:
- Trailers, Dump Trailers
- Brand:
- Lease Lane Containers
Key Features

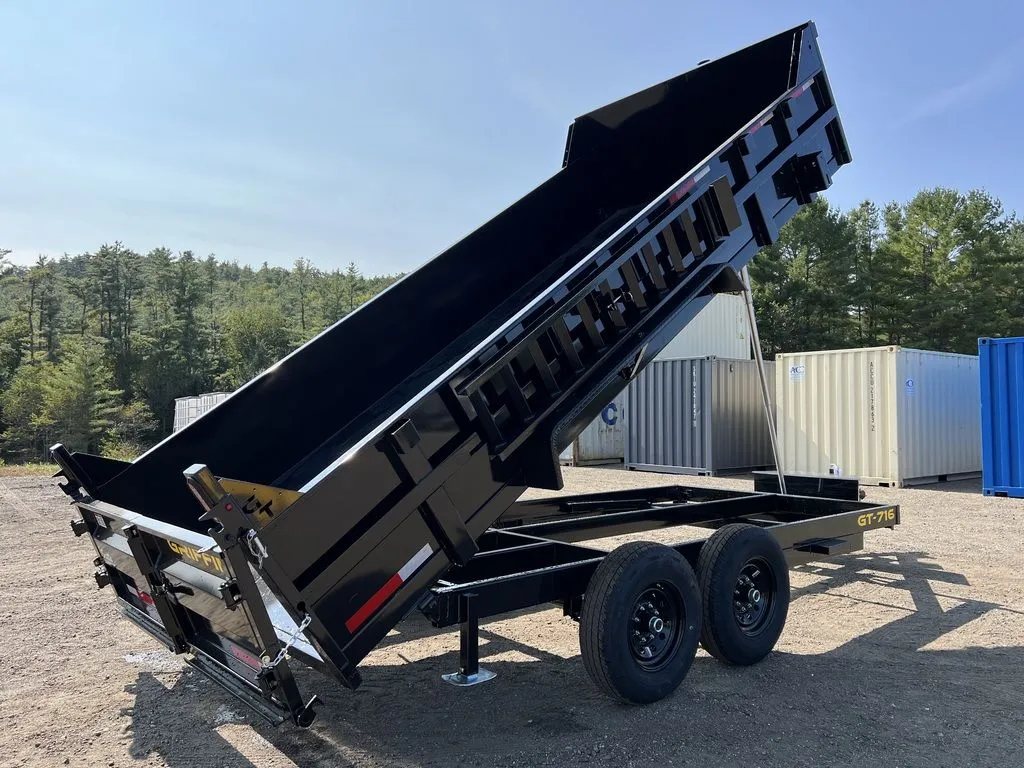

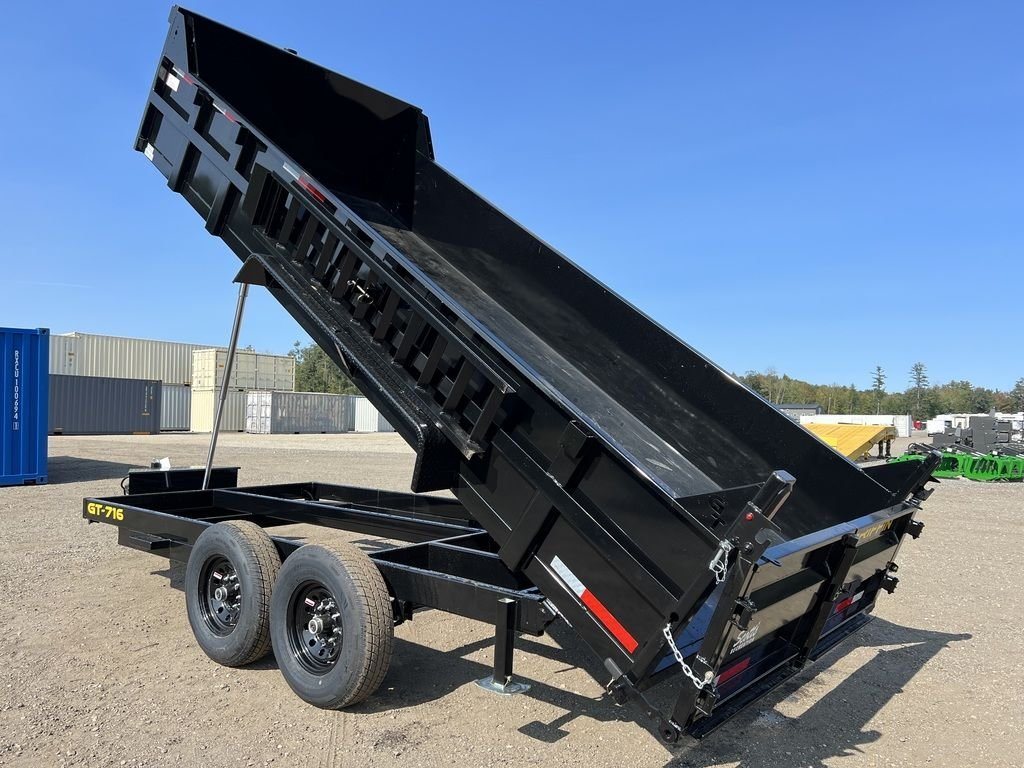

- Telescopic lift – Three stages raise the dump bed.
- Hydraulic controls – Powered raising and lowering from a front-access box.
- Combination rear gate – Choose spreader operation or barn-door access.
- Channel ramps – Fender-mounted storage keeps loading equipment close.
- Welded tie-down rings – Five floor-mounted points support cargo securement.
- Black powder coat – High-gloss finish covers the steel build.
- Spare tire mount – Provides a dedicated spare mounting location.
- Leaf spring suspension – Equalized design supports tandem-axle operation.
Overview

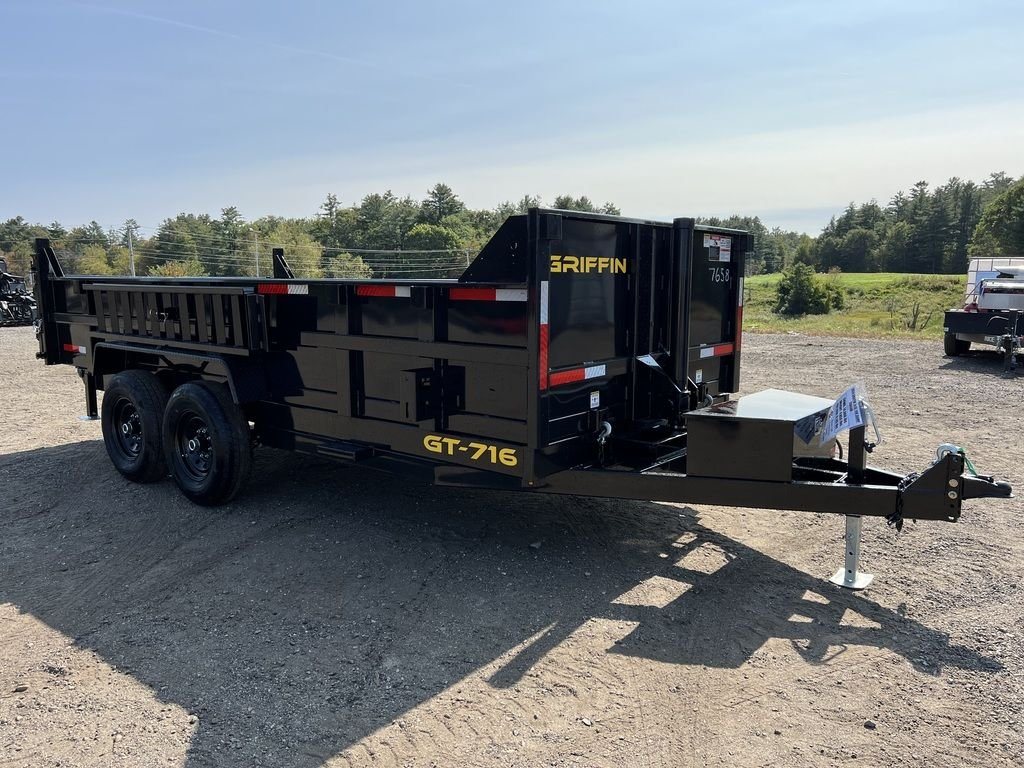

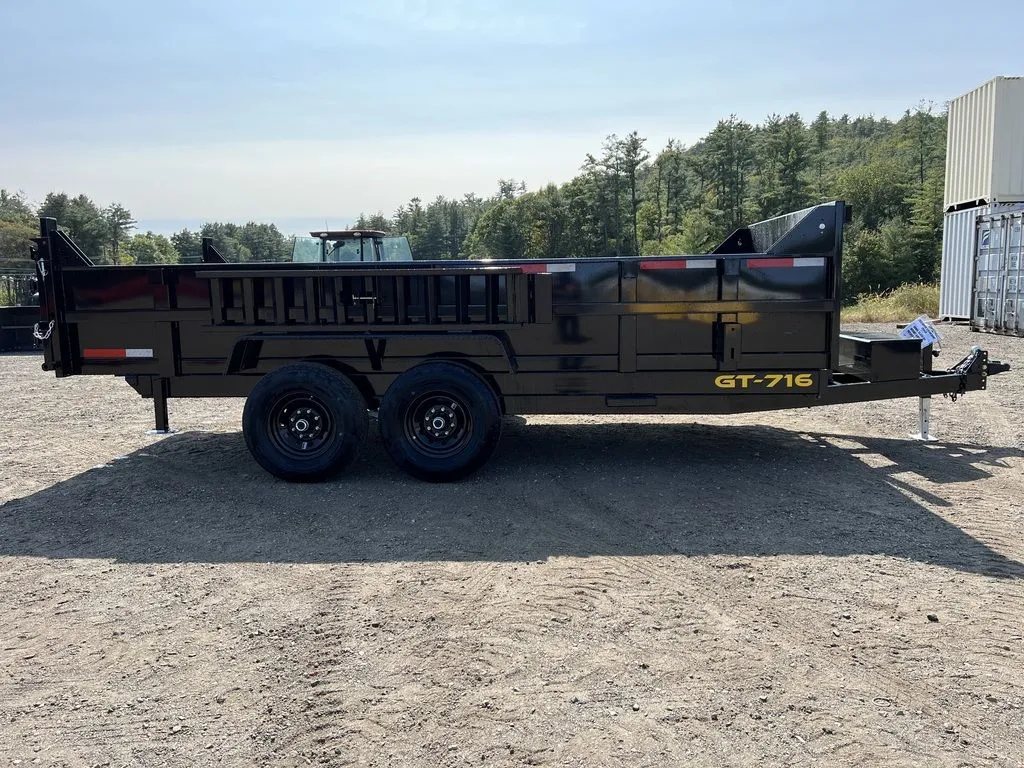

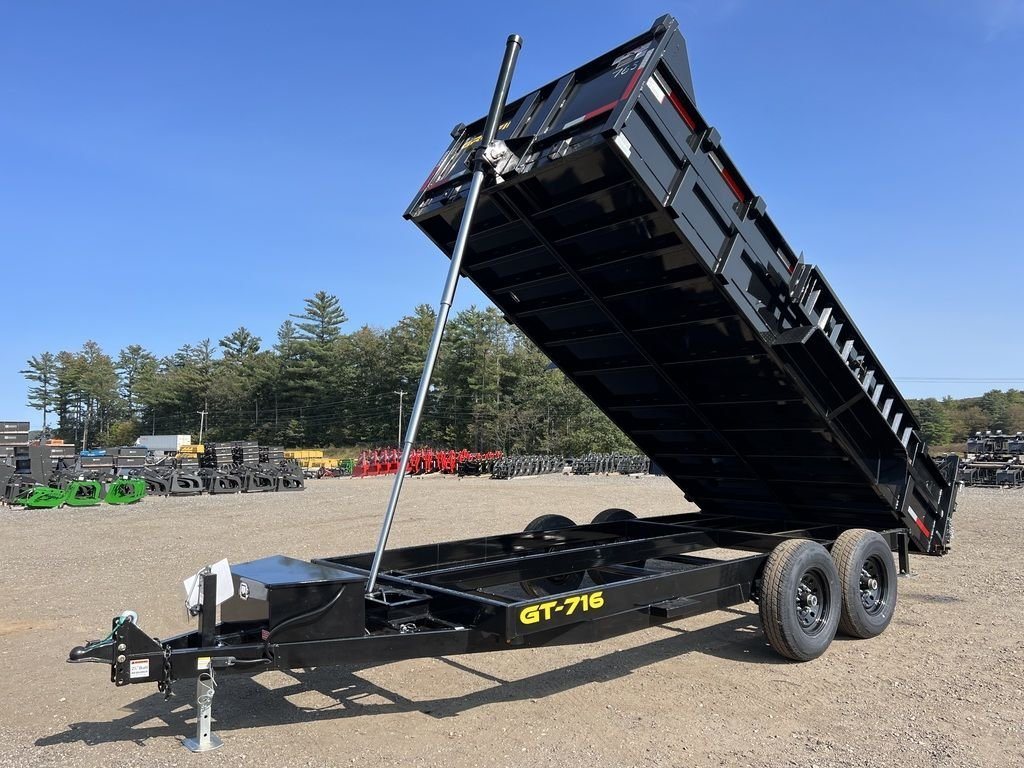

The 2024 Griffin Trailers GT-716/TELE pairs a three-stage telescopic hoist with a practical dump bed for material hauling and equipment transport. This new trailer has a gross vehicle weight rating of 14,000 lb (6,350 kg), an empty weight of 4,855 lb (2,202 kg), and a payload of 9,145 lb (4,148 kg).
Layout & Design

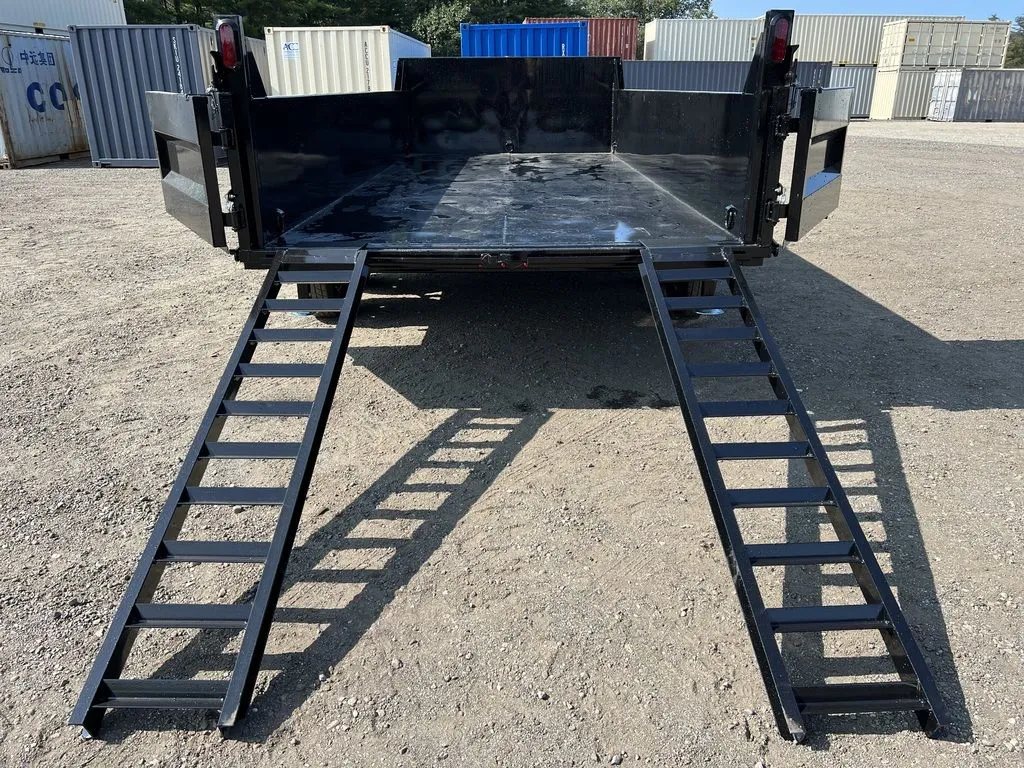

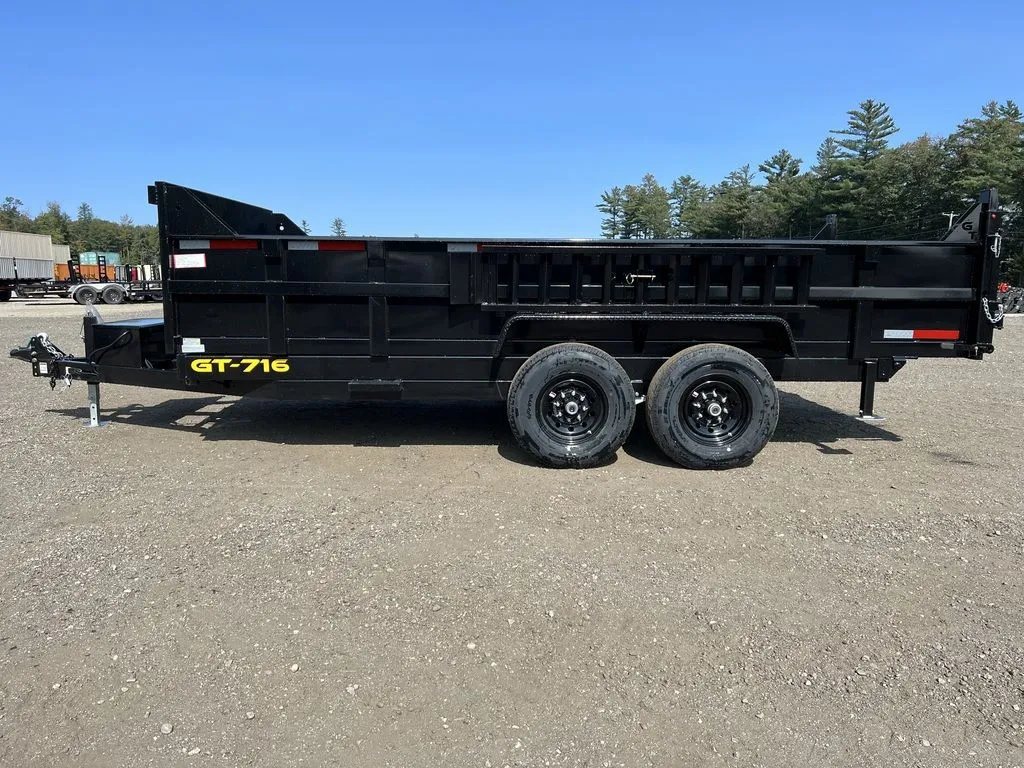

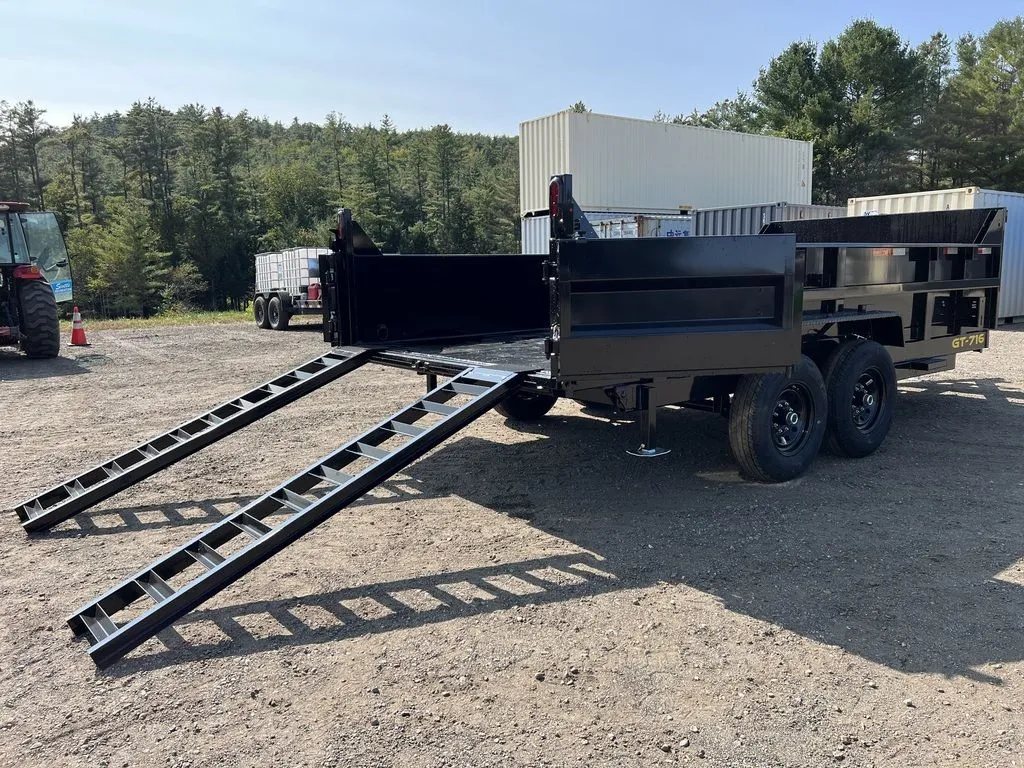

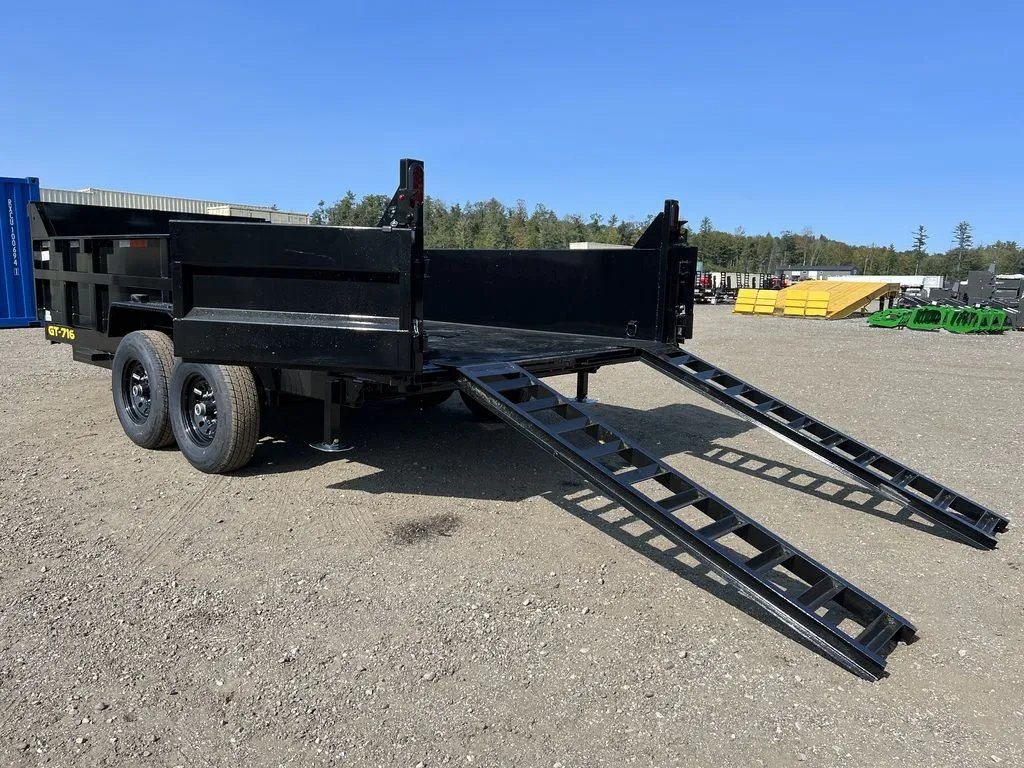

The deck measures 7 x 16 ft (2.13 x 4.88 m). A combination rear gate supports spreader use or opens in a barn-door configuration for bulk unloading. Fender-mounted adjustable channel ramps provide equipment loading access, while five welded floor rings offer cargo tie-down points.
Materials & Build
Smooth 10-gauge steel forms the walls and floor, with front and rear gussets and a high-gloss black powder-coated finish. Tandem axles feature easy-lubrication fittings and galvanized components, paired with equalized leaf spring suspension.

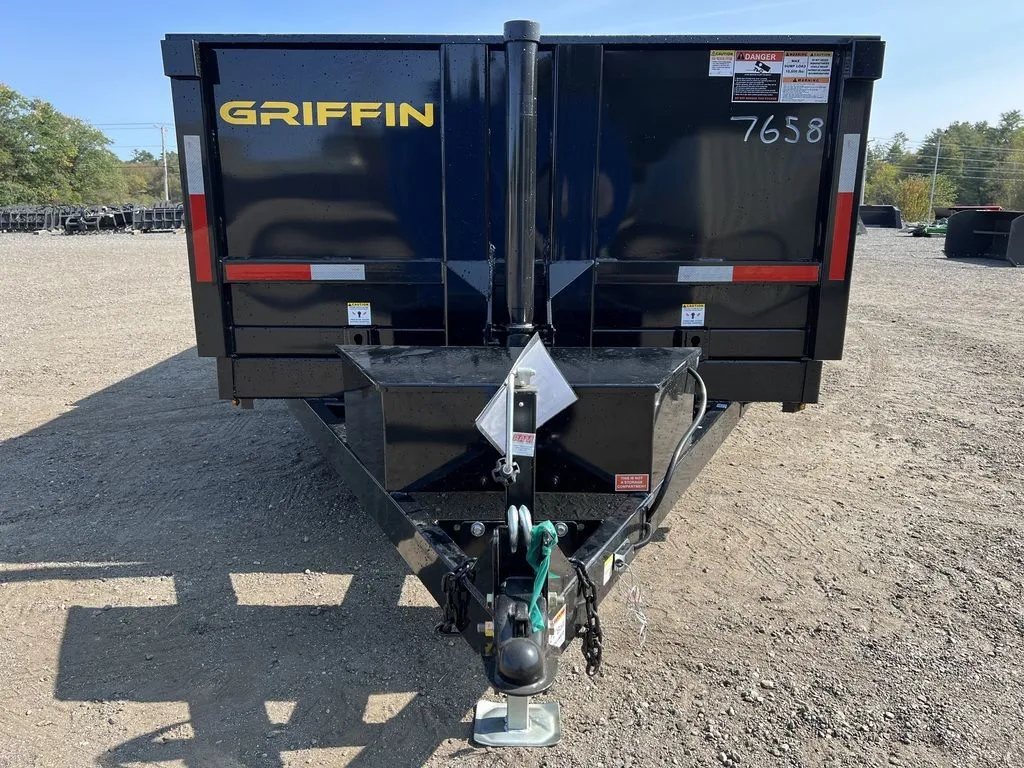

A 12-volt direct-current hydraulic pump powers both raising and lowering. A deep-cycle marine battery supplies the system, and the control box is accessible from the front.
What's Included
- Three-stage telescopic lift and hydraulic pump
- Deep-cycle marine battery and control box
- Adjustable channel ramps and spare tire mount
- Five welded tie-down rings and tarp-ready brackets
- Amber and red light-emitting diode lighting
Spare tire and tarp inclusion is confirmed in your written quote.
Ideal Uses
Use this configuration for hauling soil, gravel, mulch, debris, or equipment within its capacities. Confirm loaded weight, equipment fit, and tow-vehicle compatibility before use.
Delivery
Delivery: about a week and a half after full payment · Our driver calls you one day before arrival.
Free standard delivery to the contiguous United States (Lower 48). Remote or non-standard delivery sites are quoted in writing before you pay.
Why Buy from Lease Lane Containers
- Raleigh, NC team
- Free standard delivery to the Lower 48
- Sales tax included and paid by Lease Lane Containers
- 30-day return window (Refund & Returns Policy)
Specifications
| Specification | Detail |
|---|---|
Overview | |
| Year | 2024 |
| Make | Griffin Trailers |
| Model | GT-716/TELE |
| Type | Telescopic dump trailer |
Dimensions | |
| Deck Width × Length | 7 x 16 ft (2.13 x 4.88 m) |
Build | |
| Walls and Floor | 10-gauge smooth steel |
| Frame | 80 in (203.2 cm) C-channel frame with front and rear gussets |
| Wall Extension Dimension | 2 x 12 in (5.08 x 30.48 cm) |
| Finish | High-gloss black powder coat |
| Lift | Three-stage telescopic system with powered raising and lowering |
| Rear Gate | Two-way combination spreader/barn gate |

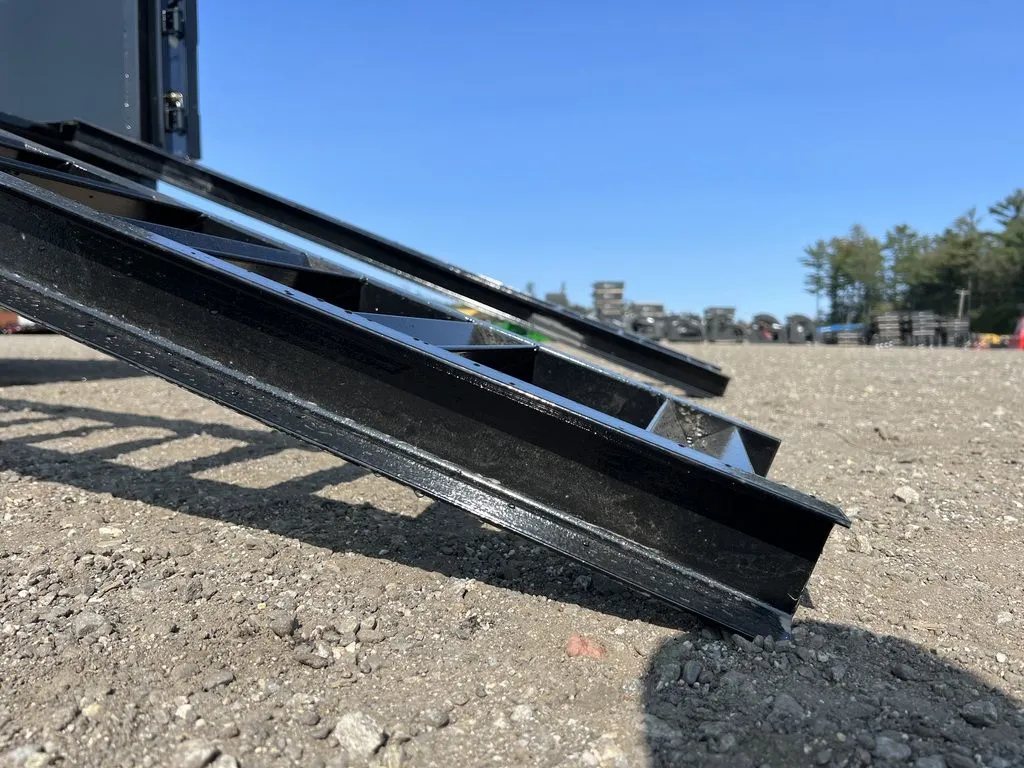

| Ramps | Fender-mounted adjustable channel ramps |
| Tie-Down Points | Five welded floor rings, each rated at 5,000 lb (2,268 kg) |
| Accessories | Spare tire mount and tarp-ready brackets |
Running Gear | |
| Gross Vehicle Weight Rating | 14,000 lb (6,350 kg) |
| Empty Weight | 4,855 lb (2,202 kg) |
| Payload | 9,145 lb (4,148 kg) |

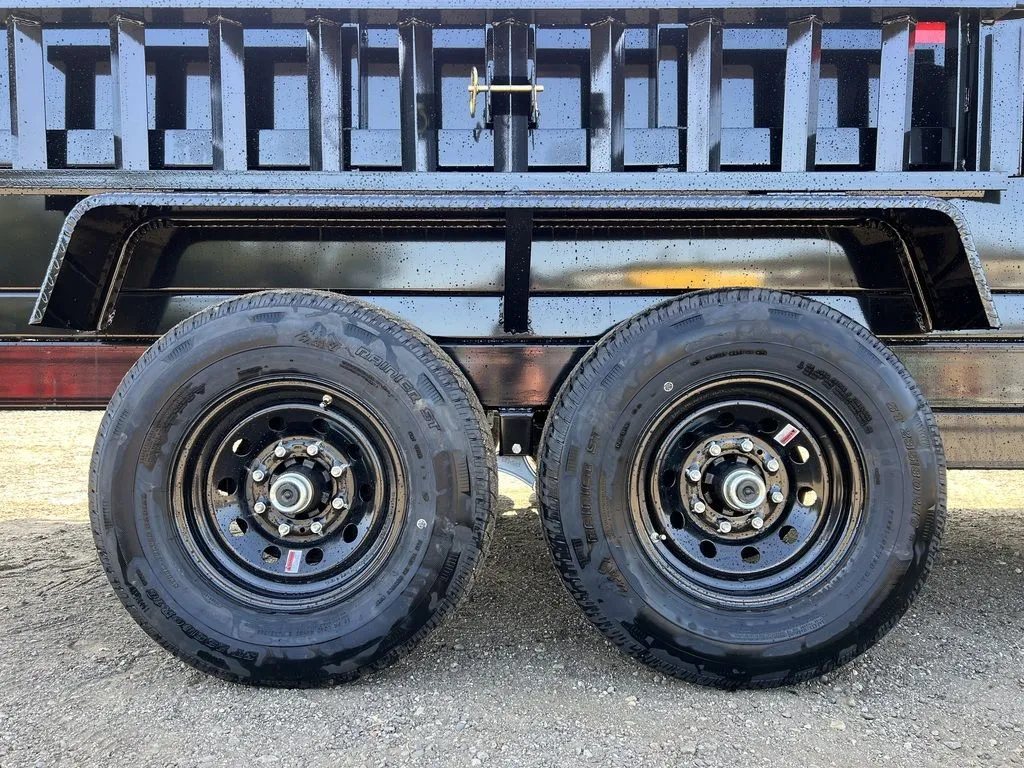

| Axles | Tandem easy-lubrication axles with galvanized components |
| Suspension | Equalized leaf springs |
| Tires | 16 in (40.64 cm) radial tires |

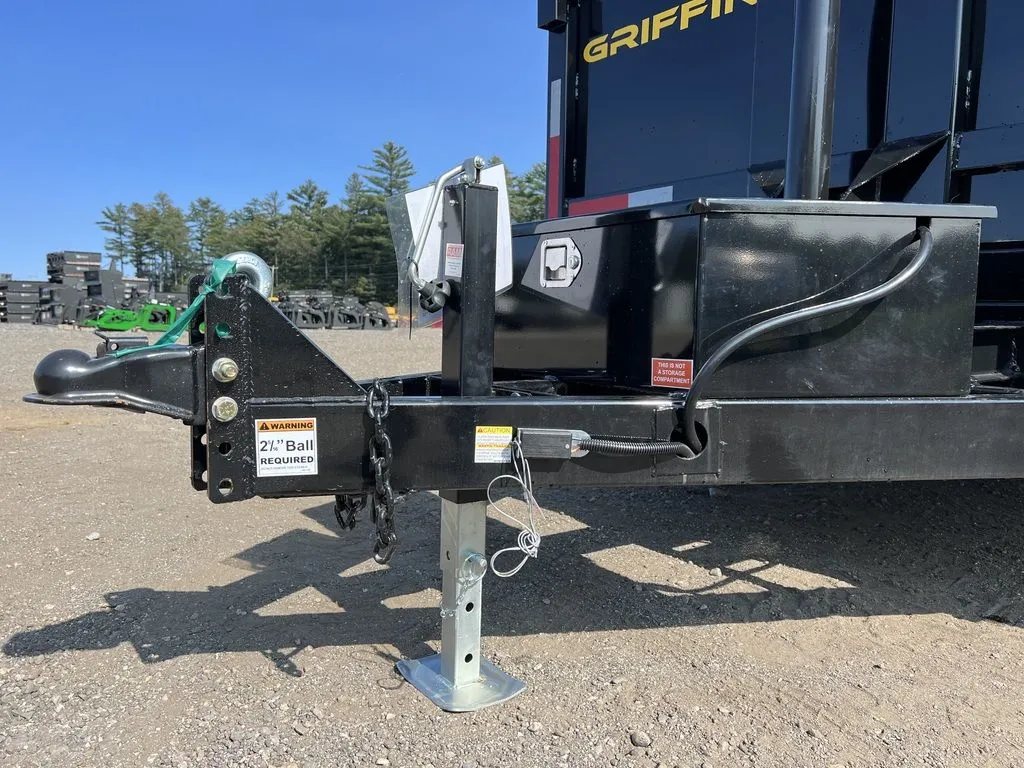

| Coupler | Adjustable 2-5/16 in (5.87 cm) coupler |
| Jack | Top-wind drop-leg jack rated at 7,000 lb (3,175 kg) |
Electrical & Plumbing | |
| Hydraulic Power | 12-volt direct-current pump with deep-cycle marine battery and front-access control box |
| Lighting | Amber and red light-emitting diode lights |
Condition | |
| Condition | New (2024) |
Delivery | |
| Delivery | Free standard delivery to the Lower 48 · about a week and a half after full payment |
